TOYOTA SCION TC AGT20L-ALTGKK / BODY / INSTRUMENT PANEL GLOVE COMPARTMENT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

INSTRUMENT PANEL GLOVE COMPARTMENT

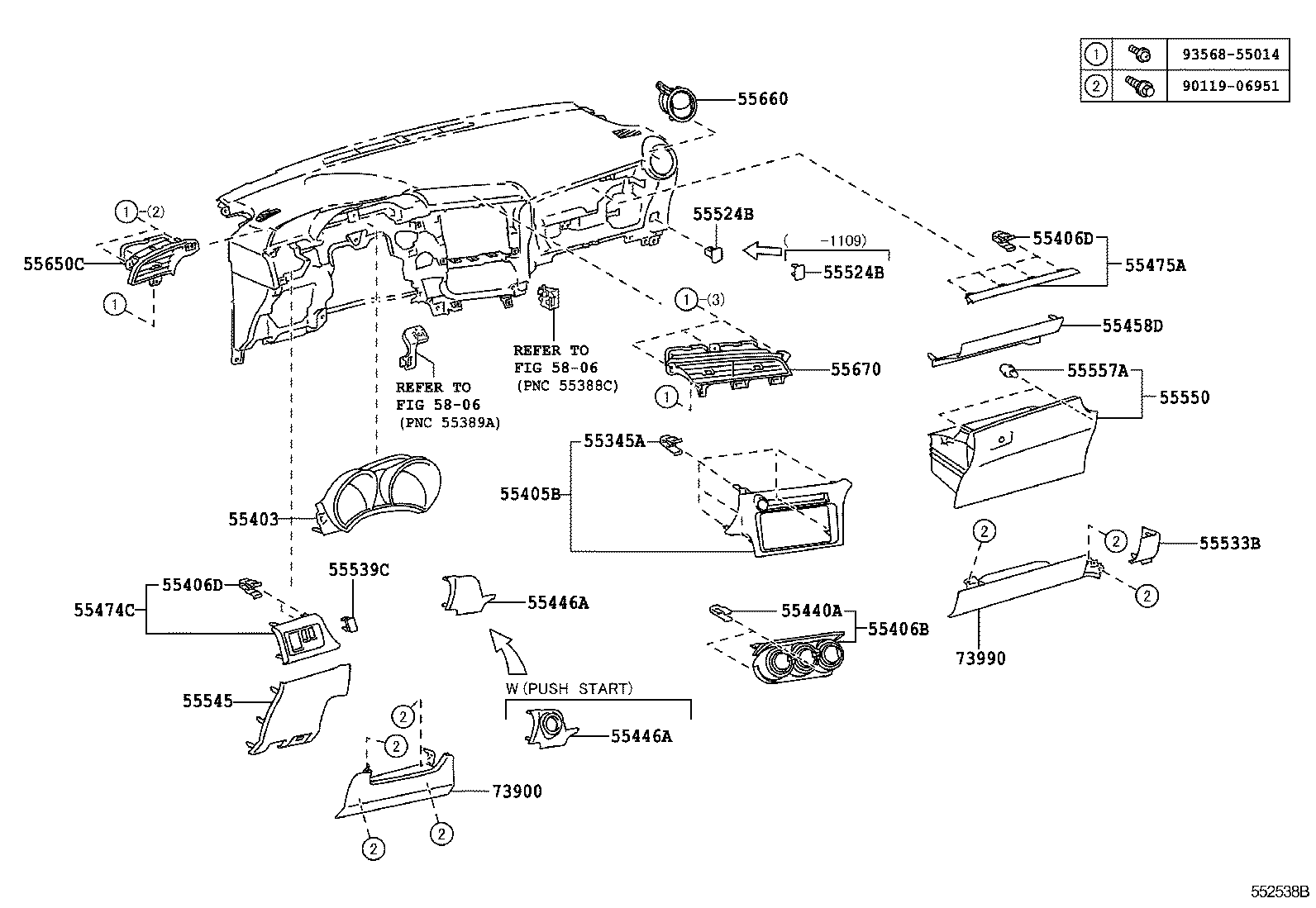

ILLUST NO. 2 OF 2(1008- )

SCION TC | INSTRUMENT PANEL GLOVE COMPARTMENT 55345A - CLIP, INSTRUMENT PANEL, NO.1 55403 - HOOD SUB-ASSY, METER 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER 55406D - CLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH) 55406D - CLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH) 55440A - CLIP(FOR INSTRUMENT PANEL CENTER GARNISH) 55446A - BASE, SWITCH HOLE, NO.1 55446A - BASE, SWITCH HOLE, NO.1 55458D - COVER, INSTRUMENT LOWER, RH 55474C - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1 55475A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2 55524B - COVER, SWITCH BASE HOLE 55524B - COVER, SWITCH BASE HOLE 55533B - PANEL, GLOVE COMPARTMENT SIDE, RH 55539C - COVER, SPARE SWITCH HOLE 55545 - COVER, FUSE BOX OPENING 55550 - DOOR ASSY, GLOVE COMPARTMENT 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK 55650C - REGISTER ASSY, INSTRUMENT PANEL, NO.1 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 ** Refer Fig ** Refer Fig 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 73990 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.2 ** Std Part ** Std Part
