TOYOTA TUNDRA USK56L-THTSGA / BODY / SIDE MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SIDE MEMBER

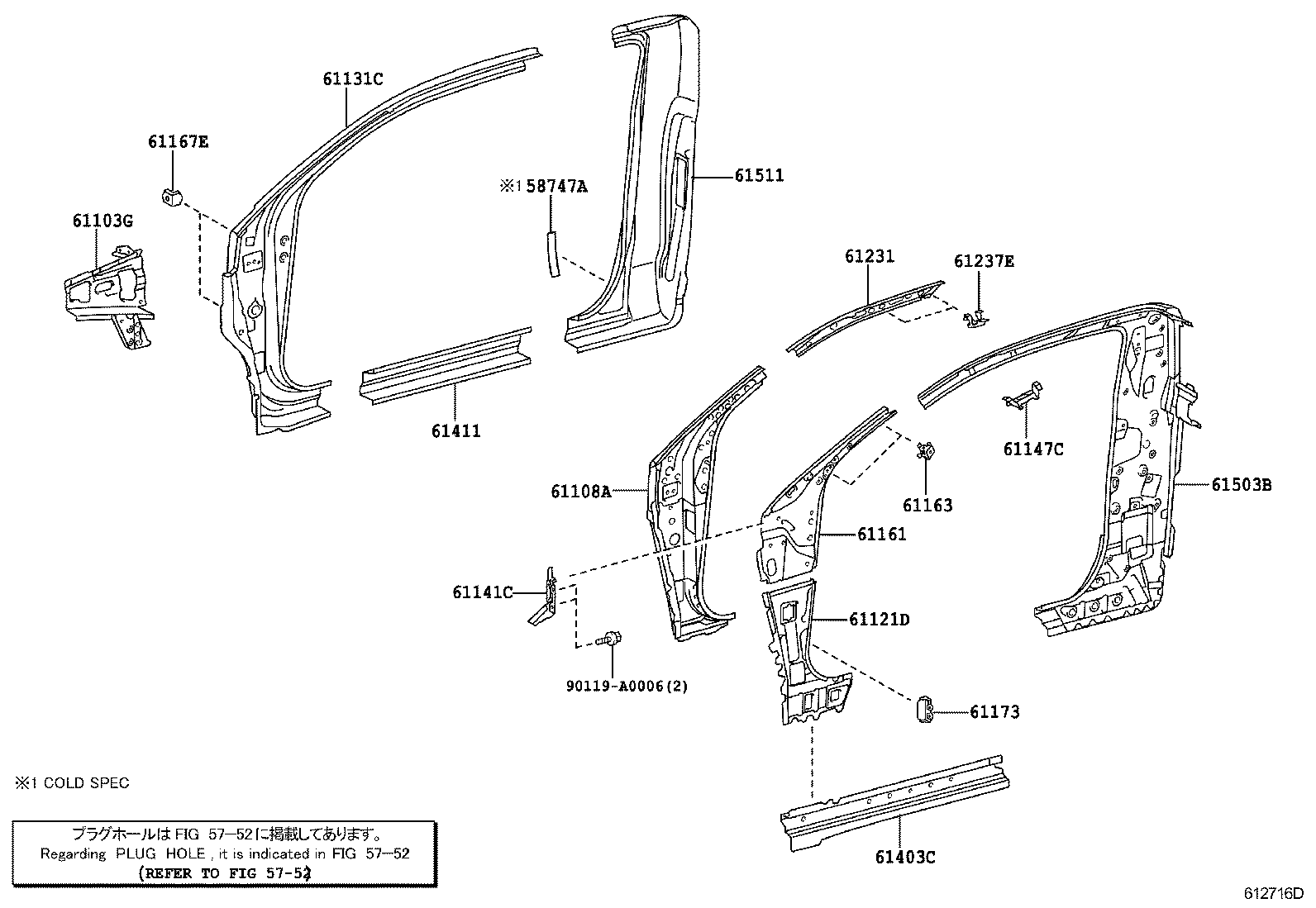

RH ILLUST NO. 1 OF 2(0611- )RCB

 TUNDRA |  SIDE MEMBER ** Refer Fig 58747A - PROTECTOR, QUARTER PANEL, REAR RH 61103G - GUSSET SUB-ASSY, FRONT BODY PILLAR, LOWER RH 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH 61121D - PANEL, COWL SIDE, RH 61131C - PILLAR, FRONT BODY, OUTER RH 61141C - EXTENSION, FRONT PILLAR, UPPER INNER RH 61147C - EXTENSION, FRONT BODY PILLAR, OUTER RH 61161 - PILLAR, FRONT BODY, UPPER INNER RH 61163 - PILLAR, FRONT BODY, INNER RH 61167E - BRACKET, NO.6 PILLAR OUTER 61173 - REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER 61231 - RAIL, ROOF SIDE, INNER RH 61237E - BRACKET, ASSIST GRIP, NO.1 61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH 61411 - PANEL, ROCKER, OUTER RH 61503B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH 61511 - PILLAR, QUARTER LOCK, RH  ** Std Part
