TOYOTA TUNDRA USK56L-THTSGA / BODY / SIDE MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

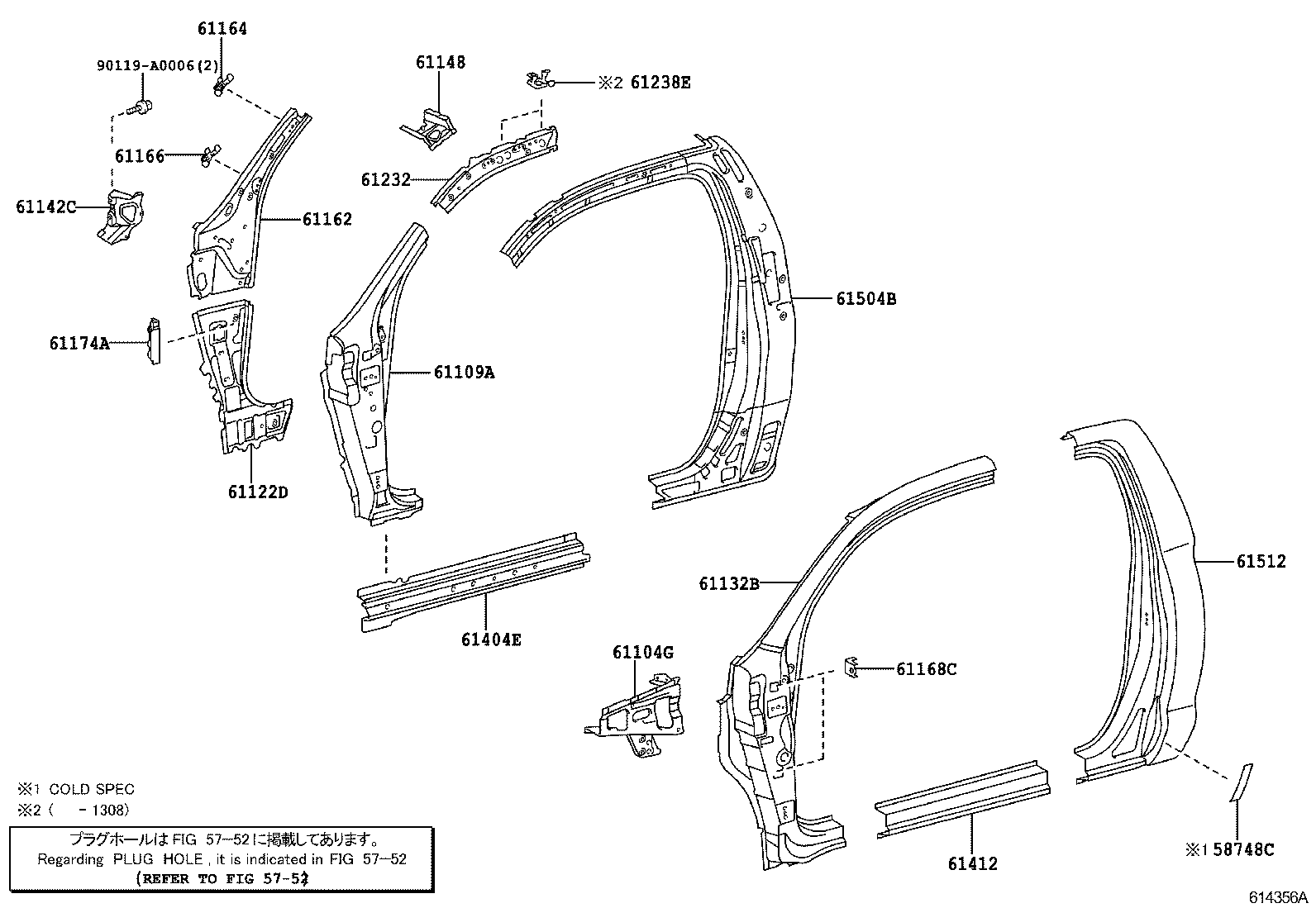

SIDE MEMBER

LH ILLUST NO. 2 OF 2(0611- )RCB

TUNDRA | SIDE MEMBER ** Refer Fig 58748C - PROTECTOR, QUARTER PANEL, REAR LH 61104G - GUSSET SUB-ASSY, FRONT BODY PILLAR, LOWER LH 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH 61122D - PANEL, COWL SIDE, LH 61132B - PILLAR, FRONT BODY, OUTER LH 61142C - EXTENSION, FRONT PILLAR, UPPER INNER LH 61148 - EXTENSION, FRONT BODY PILLAR, OUTER LH 61162 - PILLAR, FRONT BODY, UPPER INNER LH 61164 - PILLAR, FRONT BODY, INNER LH 61166 - PILLAR, FRONT BODY LOWER INNER, LH 61168C - BRACKET, NO.6 PILLAR OUTER 61174A - REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER LH 61232 - RAIL, ROOF SIDE, INNER LH 61238E - BRACKET, ASSIST GRIP, NO.2 61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH 61412 - PANEL, ROCKER, OUTER LH 61504B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH 61512 - PILLAR, QUARTER LOCK, LH ** Std Part
