LEXUS LS400 UCF20L-AEAGKV / BODY / INSTRUMENT PANEL GLOVE COMPARTMENT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

INSTRUMENT PANEL GLOVE COMPARTMENT

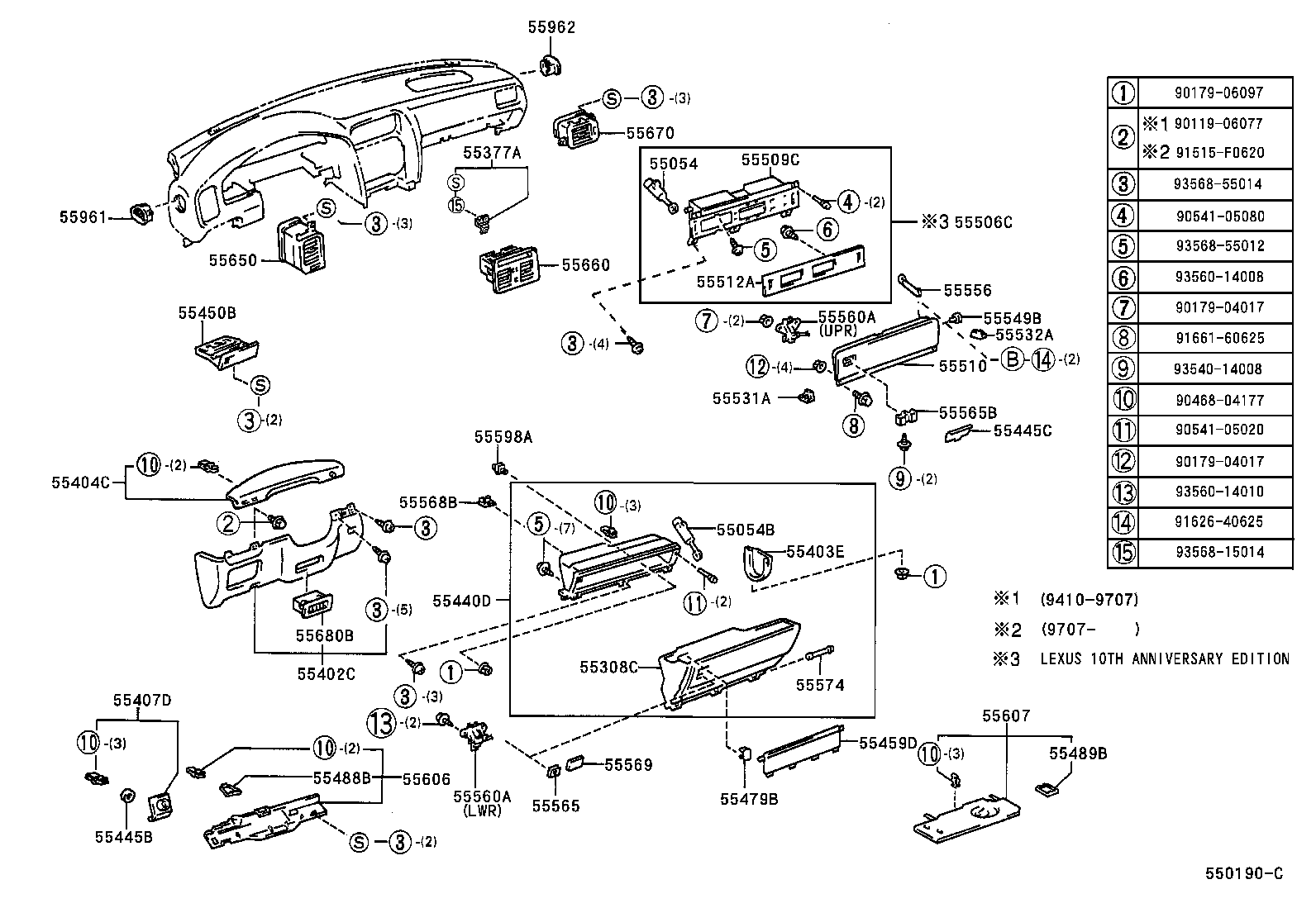

ILLUST NO. 2 OF 2(9410- )LHD

 LS400 |  INSTRUMENT PANEL GLOVE COMPARTMENT 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR 55054B - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER 55377A - BRACKET, INSTRUMENT PANEL MOUNTING, NO.2 55402C - PAD SUB-ASSY, INSTRUMENT PANEL, LOWER RH 55403E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.2 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 55407D - PAD SUB-ASSY, INSTRUMENT PANEL, END 55440D - BOX ASSY, INSTRUMENT PANEL 55445B - PLATE, INSTRUMENT PANEL FINISH 55445C - PLATE, INSTRUMENT PANEL BOX 55450B - BOX ASSY, COIN 55459D - COVER, INSTRUMENT, LOWER LH 55479B - COVER, INSTRUMENT, LOWER CENTER 55488B - LENS, FRONT FOOT LAMP, NO.1 55489B - LENS, FRONT FOOT LAMP, NO.2 55506C - COMPARTMENT SUB-ASSY, GLOVE 55509C - PANEL SUB-ASSY, GLOVE COMPARTMENT 55510 - DOOR ASSY, GLOVE COMPARTMENT 55512A - PLATE, GLOVE COMPARTMENT 55531A - PANEL, GLOVE COMPARTMENT, NO.1 55532A - PANEL, GLOVE COMPARTMENT, NO.2 55549B - COVER, INSTRUMENT PANEL HOLE, NO.2 55556 - ARM, GLOVE COMPARTMENT DOOR CHECK 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR 55565 - HANDLE, GLOVE COMPARTMENT DOOR LOCK 55565B - KNOB, GLOVE COMPARTMENT DOOR LOCK 55568B - PLATE, GLOVE COMPARTMENT DOOR FINISH 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK 55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE 55598A - BRACKET, GLOVE COMPARTMENT DOOR HINGE 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 55680B - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1 55961 - NOZZLE, SIDE DEFROSTER, NO.1 55962 - NOZZLE, SIDE DEFROSTER, NO.2  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
