LEXUS LS460 460L USF40L-AEZGKW / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

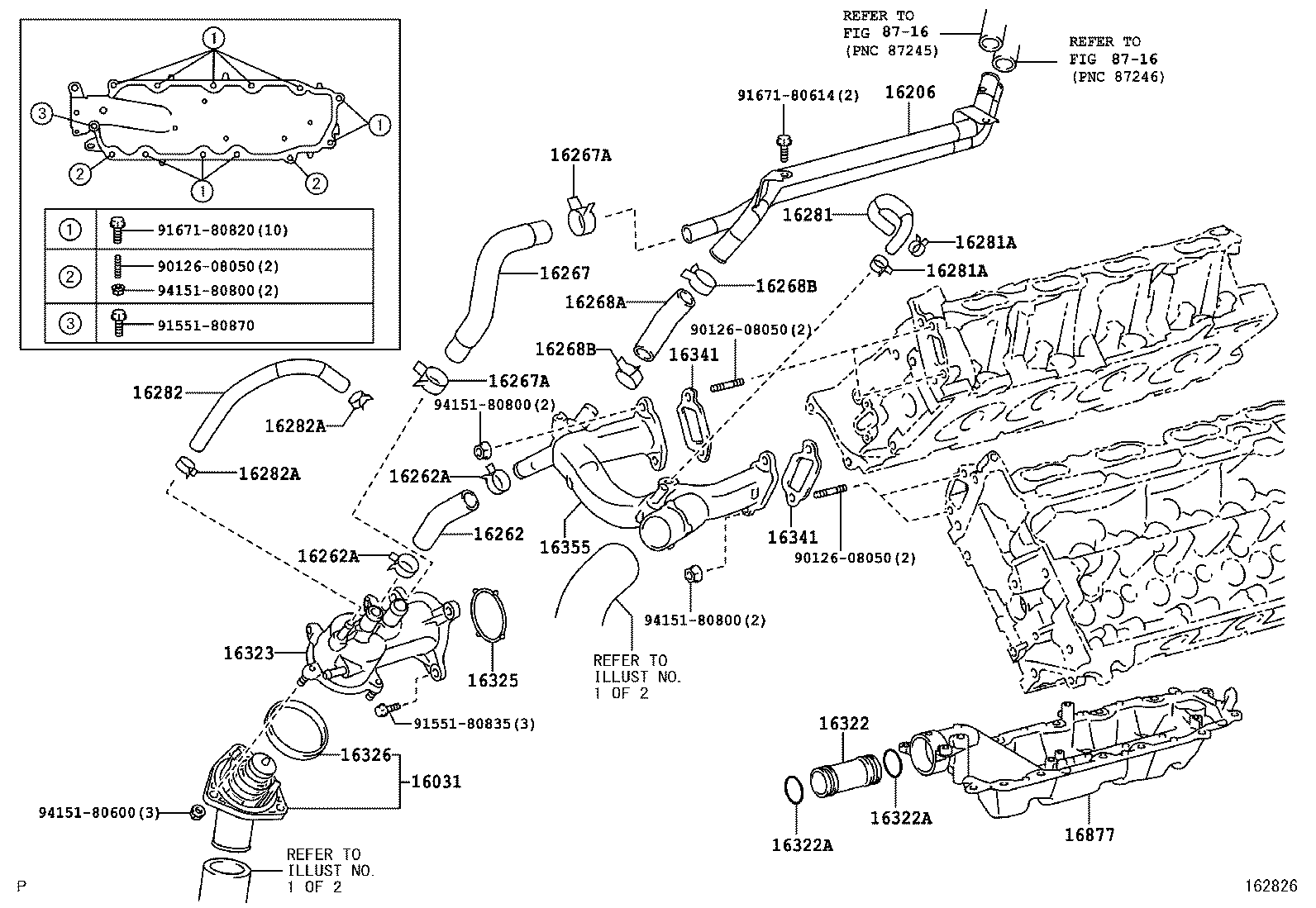

RADIATOR WATER OUTLET

ILLUST NO. 2 OF 2(0608- )

LS460 460L | RADIATOR WATER OUTLET 16031 - WATER INLET SUB-ASSY, W/THERMOSTAT 16206 - PIPE SUB-ASSY, WATER BY-PASS 16262 - HOSE, WATER INLET 16262A - CLIP(FOR WATER INLET HOSE) 16262A - CLIP(FOR WATER INLET HOSE) 16267 - HOSE, WATER BY-PASS, NO.3 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) 16268A - HOSE(FOR WATER BY-PASS PIPE) 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) 16281 - HOSE, WATER BY-PASS, NO.4 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) 16282 - HOSE, WATER BY-PASS, NO.5 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) 16322 - PIPE, WATER INLET 16322A - RING, O(FOR WATER INLET) 16322A - RING, O(FOR WATER INLET) 16323 - HOUSING, WATER INLET 16325 - GASKET, WATER INLET HOUSING, NO.1 16326 - GASKET, WATER INLET HOUSING, NO.2 16341 - GASKET, WATER OUTLET 16341 - GASKET, WATER OUTLET 16355 - JOINT, WATER BY-PASS, FRONT 16877 - COVER, HEAT EXCHANGER, NO.1 ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
