LEXUS LS460 460L USF40R-AEZGHW / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

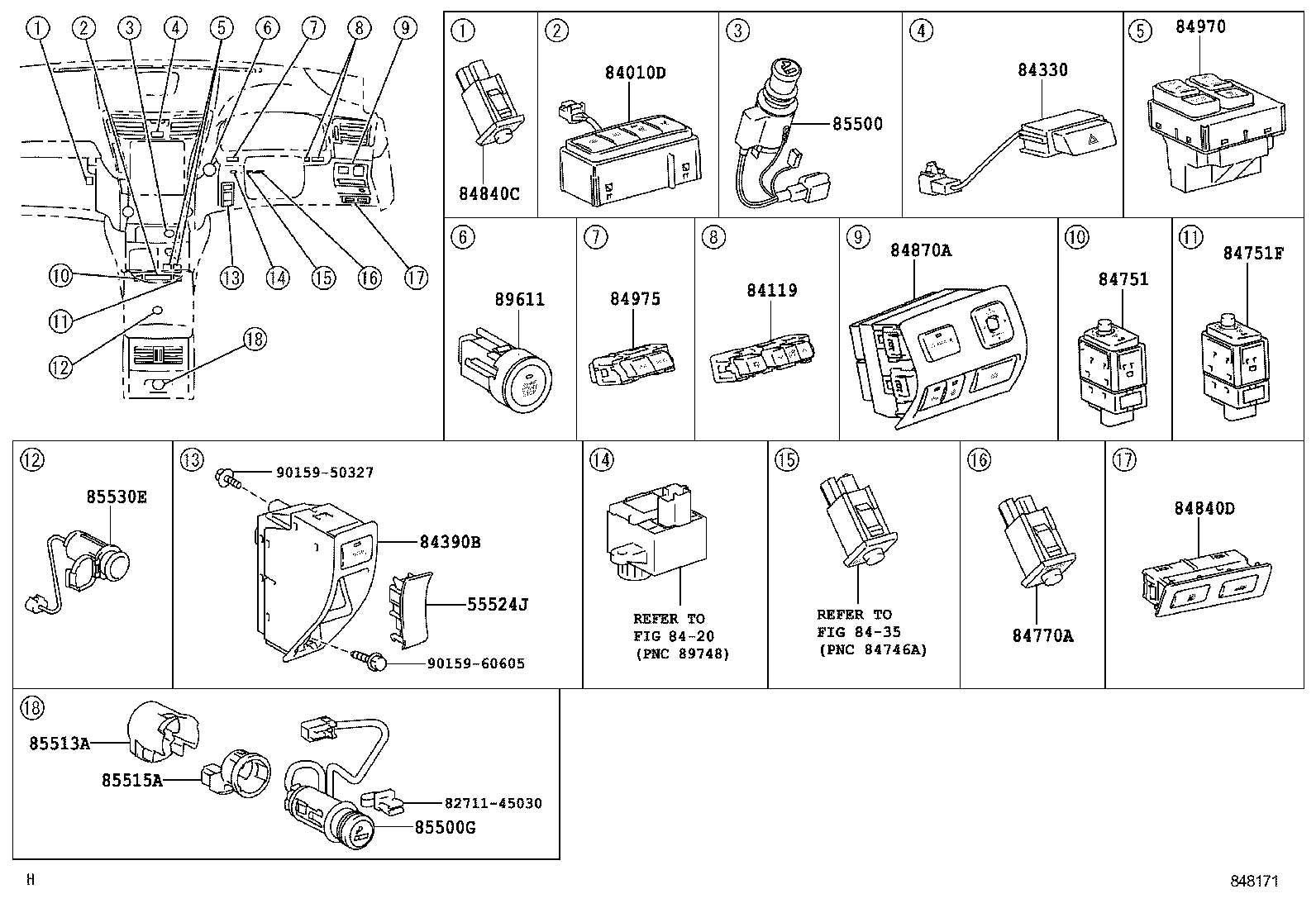

INSTRUMENT PANEL ILLUST NO. 4 OF 8(0608-0909)RHD

 LS460 460L |  SWITCH RELAY COMPUTER 55524J - COVER, SWITCH BASE HOLE  ** Std Part 84010D - CONTROL & PANEL ASSY, INTEGRATION 84119 - RHEOSTAT, LIGHT CONTROL ** Refer Fig 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL ** Refer Fig 84390B - SWITCH ASSY, ELECTRIC PARKING BRAKE 84751 - SWITCH, SEAT HEATER 84751F - SWITCH, SEAT HEATER 84770A - SWITCH ASSY, PRECRASH SYSTEM CANCEL 84840C - SWITCH ASSY, LUGGAGE DOOR OPENING, CANCEL 84840D - SWITCH ASSY, LUGGAGE DOOR OPENING 84870A - SWITCH ASSY, OUTER MIRROR 84970 - SWITCH ASSY, COMBINATION 84975 - SWITCH, TRIP 85500 - LIGHTER ASSY, CIGARETTE 85500G - LIGHTER ASSY, CIGARETTE, REAR 85513A - COVER, CIGARETTE LIGHTER, REAR 85515A - STAY, CIGARETTE LIGHTER BEZEL, REAR 85530E - SOCKET ASSY, POWER OUTLET, NO.3 89611 - SWITCH, PUSH START  ** Std Part  ** Std Part
