LEXUS IS250C GSE20R-AKFLHW / POWERTRAIN-CHASSIS / CLUTCH PEDAL FLEXIBLE HOSE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

CLUTCH PEDAL FLEXIBLE HOSE

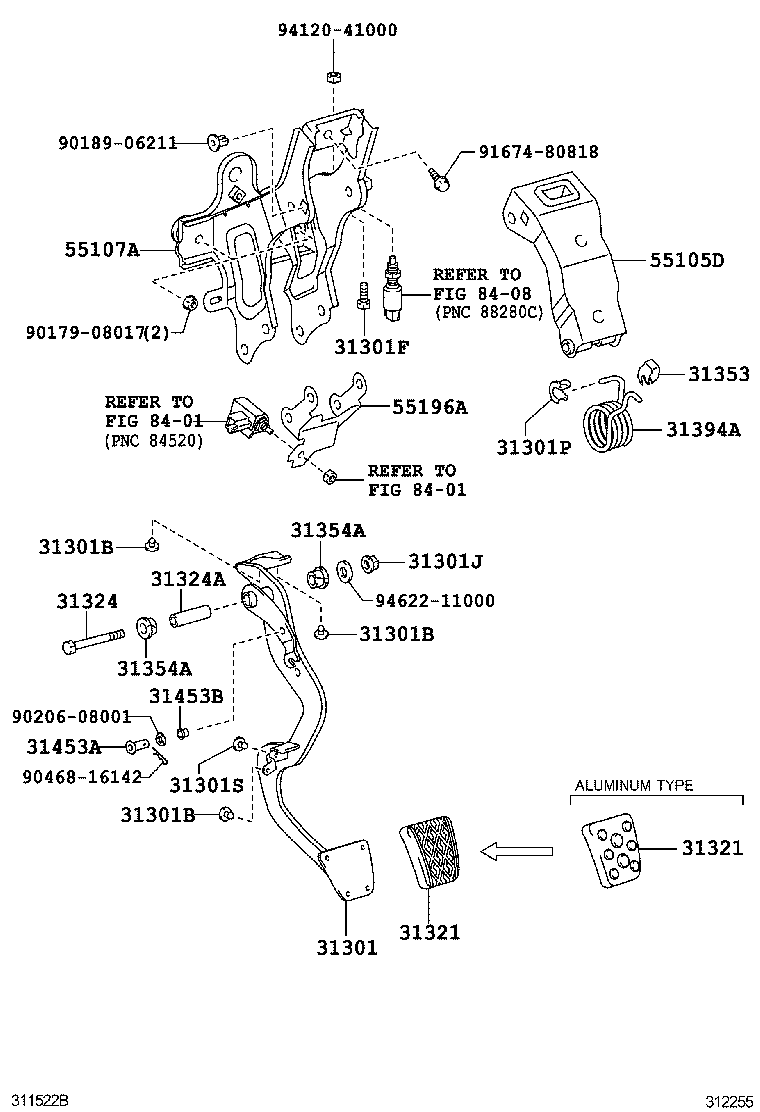

ILLUST NO. 1 OF 2(0904- )RHD..6F

IS250C | CLUTCH PEDAL FLEXIBLE HOSE 31301 - PEDAL SUB-ASSY, CLUTCH 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) 31301J - NUT(FOR CLUTCH PEDAL STOPPER) 31301P - BUSH(FOR CLUTCH PEDAL TURNOVER) 31301S - CUSHION, NO.2(FOR CLUTCH PEDAL) 31321 - PAD, CLUTCH PEDAL 31321 - PAD, CLUTCH PEDAL 31324 - SHAFT, CLUTCH PEDAL 31324A - COLLAR, CLUTCH PEDAL SHAFT 31353 - HOLDER, CLUTCH PEDAL SPRING 31354A - BUSH(FOR CLUTCH PEDAL SPRING SEAT UPPER) 31354A - BUSH(FOR CLUTCH PEDAL SPRING SEAT UPPER) 31394A - SPRING, PEDAL W/HOOK 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) 55105D - BRACKET SUB-ASSY, CLUTCH PEDAL 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL 55196A - BRACKET, CLUTCH START SWITCH MOUNTING ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
