LEXUS IS250C GSE20R-AKFLHW / POWERTRAIN-CHASSIS / CLUTCH PEDAL FLEXIBLE HOSE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

CLUTCH PEDAL FLEXIBLE HOSE

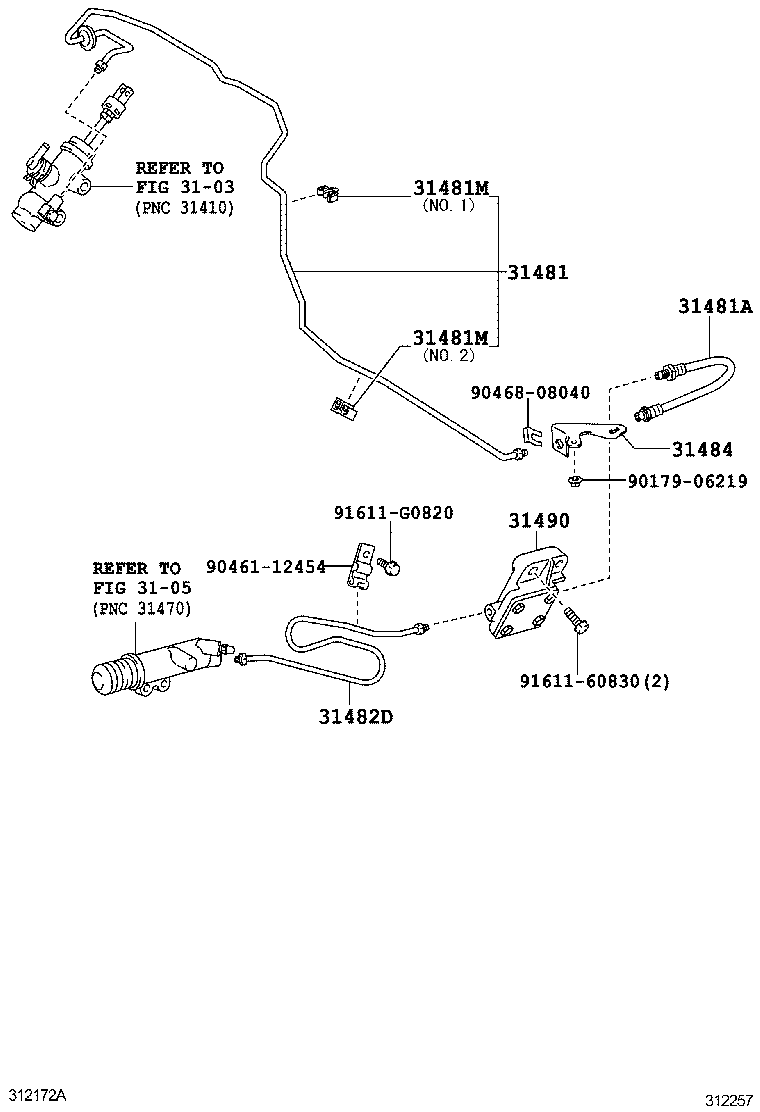

ILLUST NO. 2 OF 2(0904- )RHD..6F

IS250C | CLUTCH PEDAL FLEXIBLE HOSE ** Refer Fig ** Refer Fig 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE 31481A - HOSE, CLUTCH, NO.1 31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE) 31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE) 31482D - TUBE, CLUTCH RELEASE CYLINDER TO ACCUMULATOR 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) 31490 - ACCUMULATOR ASSY, CLUTCH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
