LEXUS ES250 VZV21L-CTPNKK / POWERTRAIN-CHASSIS / BRAKE TUBE CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

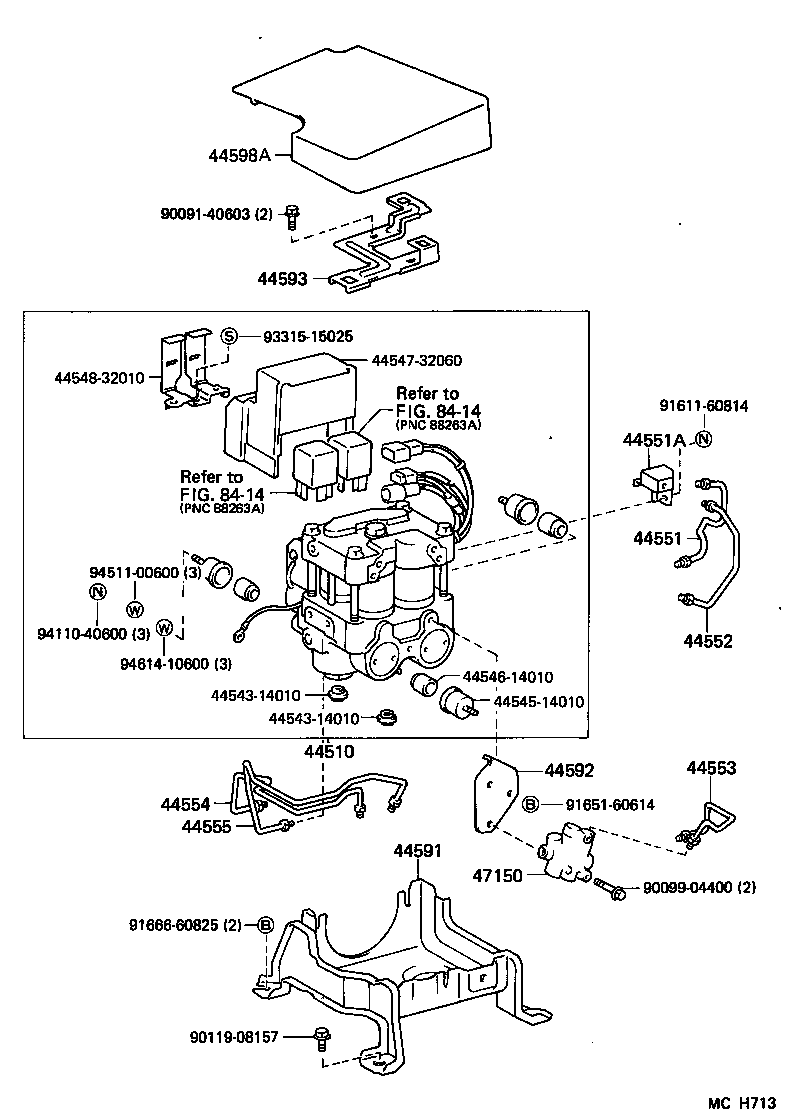

BRAKE TUBE CLAMP

ILLUST NO. 2 OF 2(8906- )

ES250 | BRAKE TUBE CLAMP 44510 - ACTUATOR ASSY, BRAKE ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part 44551 - TUBE, BRAKE ACTUATOR, NO.1 44551A - WAY, NO.1(FOR BRAKE ACTUATOR) 44552 - TUBE, BRAKE ACTUATOR, NO.2 44553 - TUBE, BRAKE ACTUATOR, NO.3 44554 - TUBE, BRAKE ACTUATOR, NO.4 44555 - TUBE, BRAKE ACTUATOR, NO.5 44591 - BRACKET, BRAKE ACTUATOR, NO.1 44592 - BRACKET, BRAKE ACTUATOR, NO.2 44593 - BRACKET, BRAKE ACTUATOR, NO.3 44598A - COVER, BRAKE ACTUATOR 47150 - VALVE ASSY, PROPORTIONING ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
