LEXUS ES300 MCV20L-BTPGKA / TOOL-ENGINE-FUEL / VACUUM PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

VACUUM PIPING

(9808-9908)

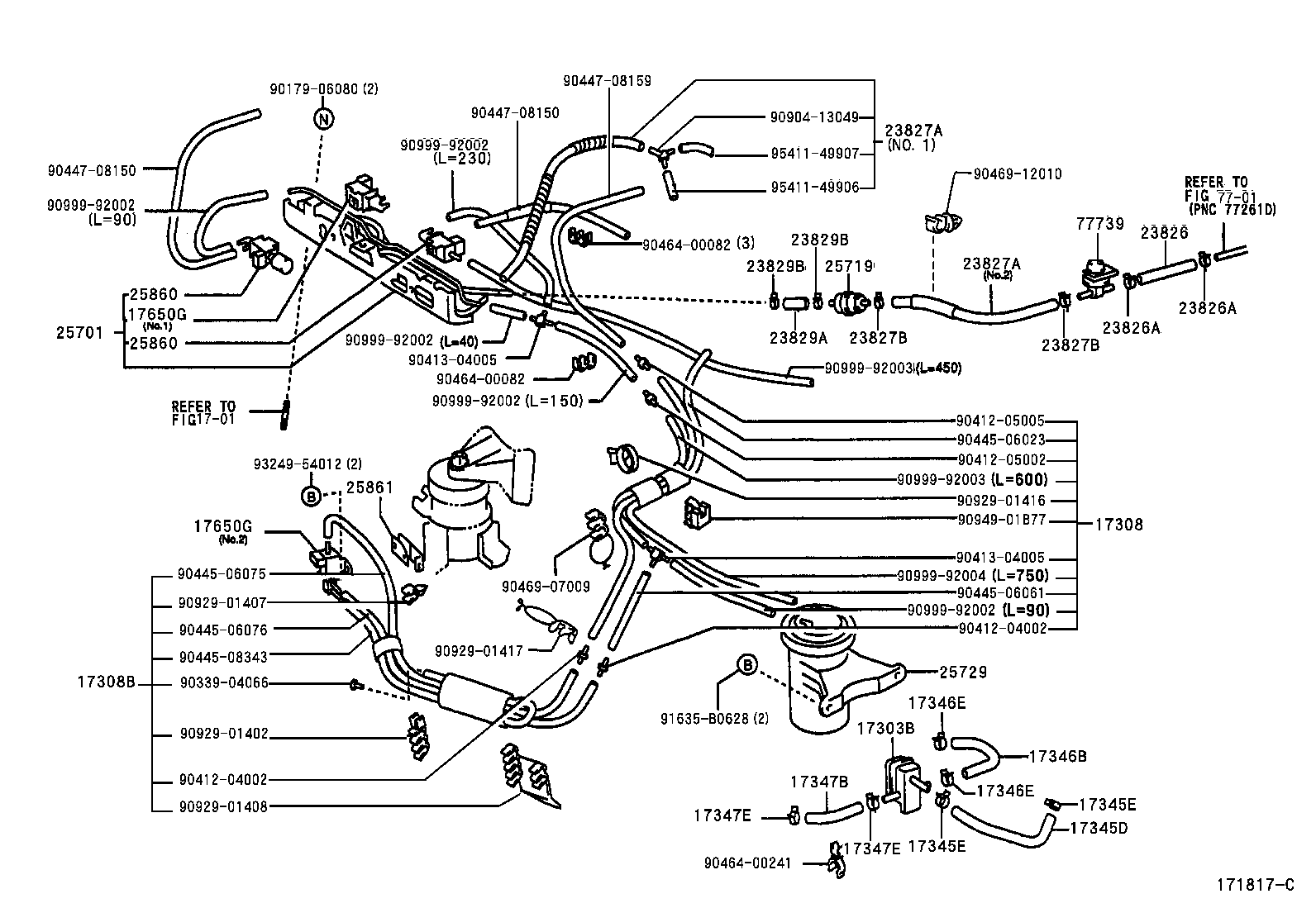

ES300 | VACUUM PIPING ** Refer Fig 17303B - PIPE SUB-ASSY, AIR, NO.1 17308 - HOSE SUB-ASSY, VACUUM(FOR IDLE-UP) 17308B - HOSE SUB-ASSY, VACUUM 17345D - HOSE, AIR, NO.5 17345E - CLAMP OR CLIP(FOR AIR HOSE, NO.5) 17345E - CLAMP OR CLIP(FOR AIR HOSE, NO.5) 17346B - HOSE, AIR, NO.6 17346E - CLIP(FOR AIR HOSE NO.6) 17346E - CLIP(FOR AIR HOSE NO.6) 17347B - HOSE, AIR, NO.7 17347E - CLIP(FOR AIR HOSE NO.7) 17347E - CLIP(FOR AIR HOSE NO.7) 17650G - VALVE, DUTY VACUUM SWITCHING 17650G - VALVE, DUTY VACUUM SWITCHING 23826 - HOSE, FUEL VAPOR FEED, NO.1 23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1) 23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1) 23827A - HOSE, FUEL VAPOR FEED, NO.2 23827A - HOSE, FUEL VAPOR FEED, NO.2 23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2) 23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2) 23829A - HOSE, FUEL VAPOR FEED 23829B - CLIP(FOR FUEL VAPOR FEED HOSE) 23829B - CLIP(FOR FUEL VAPOR FEED HOSE) 25701 - VALVE SET, EMISSION CONTROL 25719 - TANK, VACUUM SURGE 25729 - TANK, VACUUM SURGE W/BRACKET 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 25861 - BRACKET, VACUUM SWITCHING VALVE ** Refer Fig 77739 - VALVE, EVAP SERVICE PORT ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
