LEXUS IS300 JCE10L-AEAVFA / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

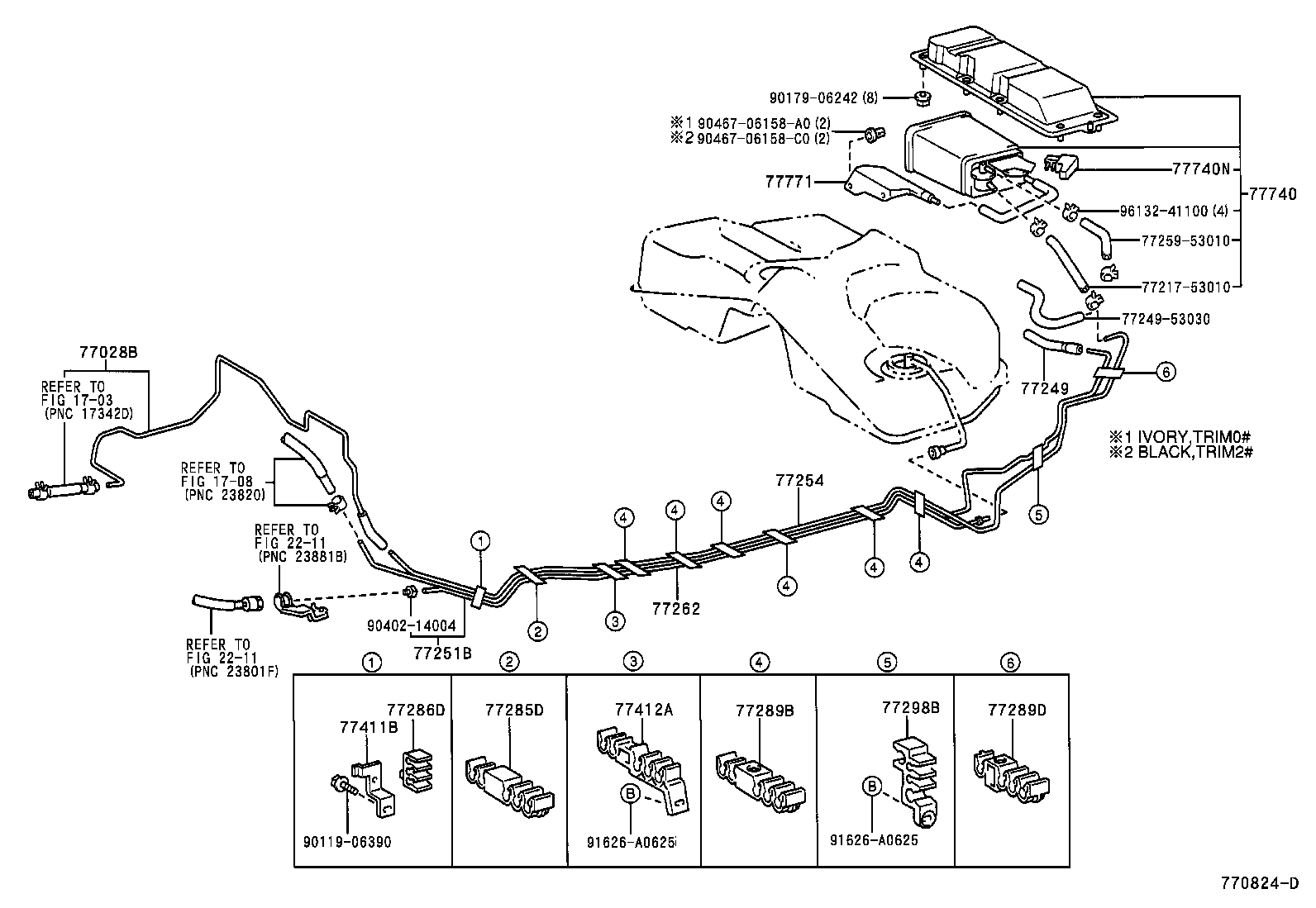

FUEL TANK TUBE

FUEL TUBE ILLUST NO. 2 OF 2(0005-0107)

IS300 | FUEL TANK TUBE ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 77028B - TUBE SUB-ASSY, FUEL EVAPORATION, NO.3 ** Std Part 77249 - HOSE, FUEL EMISSION ** Std Part 77251B - TUBE, FUEL MAIN 77254 - TUBE, FUEL EMISSION, NO.1 ** Std Part 77262 - TUBE, FUEL EMISSION, NO.2 77285D - CLAMP, FUEL TUBE, NO.1 77286D - CLAMP, FUEL TUBE, NO.2 77289B - CLAMP, FUEL TUBE, NO.3 77289D - CLAMP, FUEL TUBE, NO.5 77298B - CLAMP, FUEL TUBE, NO.4 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 77412A - SUPPORT, FUEL TUBE GROMMET, NO.2 77740 - CANISTER ASSY, CHARCOAL 77740N - VALVE, VACUUM SWITCHING(FOR CHARCOAL CANISTER) 77771 - TANK, CHARCOAL CANISTER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
