LEXUS SC300 400 UZZ30L-ACAZKA / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

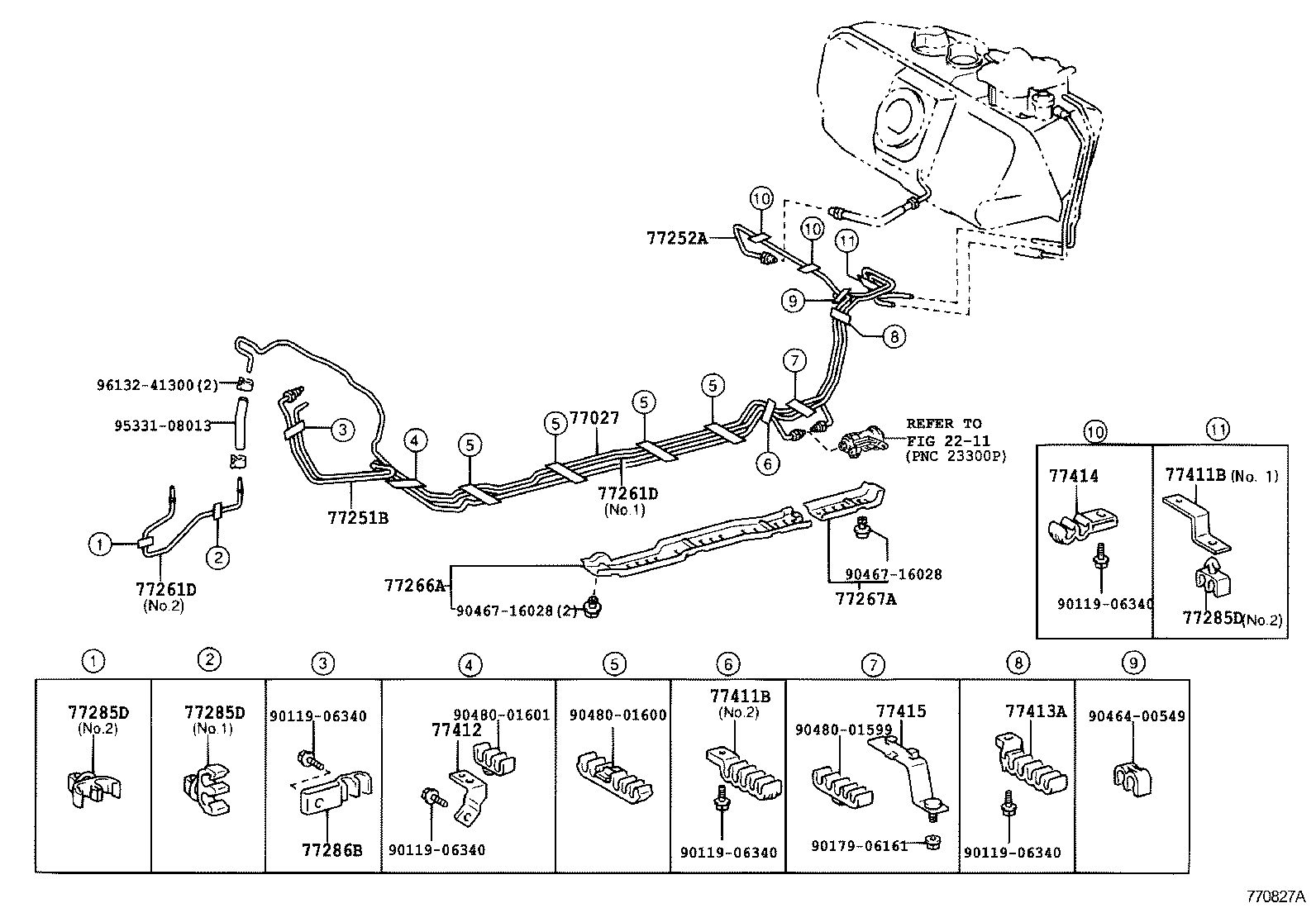

FUEL TANK TUBE

ILLUST NO. 2 OF 2(9908- )UZZ30

SC300 400 | FUEL TANK TUBE ** Refer Fig 77027 - TUBE SUB-ASSY, FUEL EVAPORATION, NO.2 77251B - TUBE, FUEL MAIN 77252A - TUBE, FUEL MAIN, NO.2 77261D - TUBE, FUEL TANK TO CANISTER 77261D - TUBE, FUEL TANK TO CANISTER 77266A - PROTECTOR, FUEL TUBE, NO.1 77267A - PROTECTOR, FUEL TUBE, NO.2 77285D - CLAMP, FUEL TUBE, NO.1 77285D - CLAMP, FUEL TUBE, NO.1 77285D - CLAMP, FUEL TUBE, NO.1 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 77412 - SUPPORT, FUEL TUBE GROMMET, NO.2 77413A - SUPPORT, FUEL TUBE GROMMET, NO.3 77414 - SUPPORT, FUEL TUBE GROMMET, NO.4 77415 - SUPPORT, FUEL TUBE GROMMET, NO.5 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
