LEXUS GS30 35 43 460 GRS195L-BETQHA / ELECTRICAL / WIRING CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

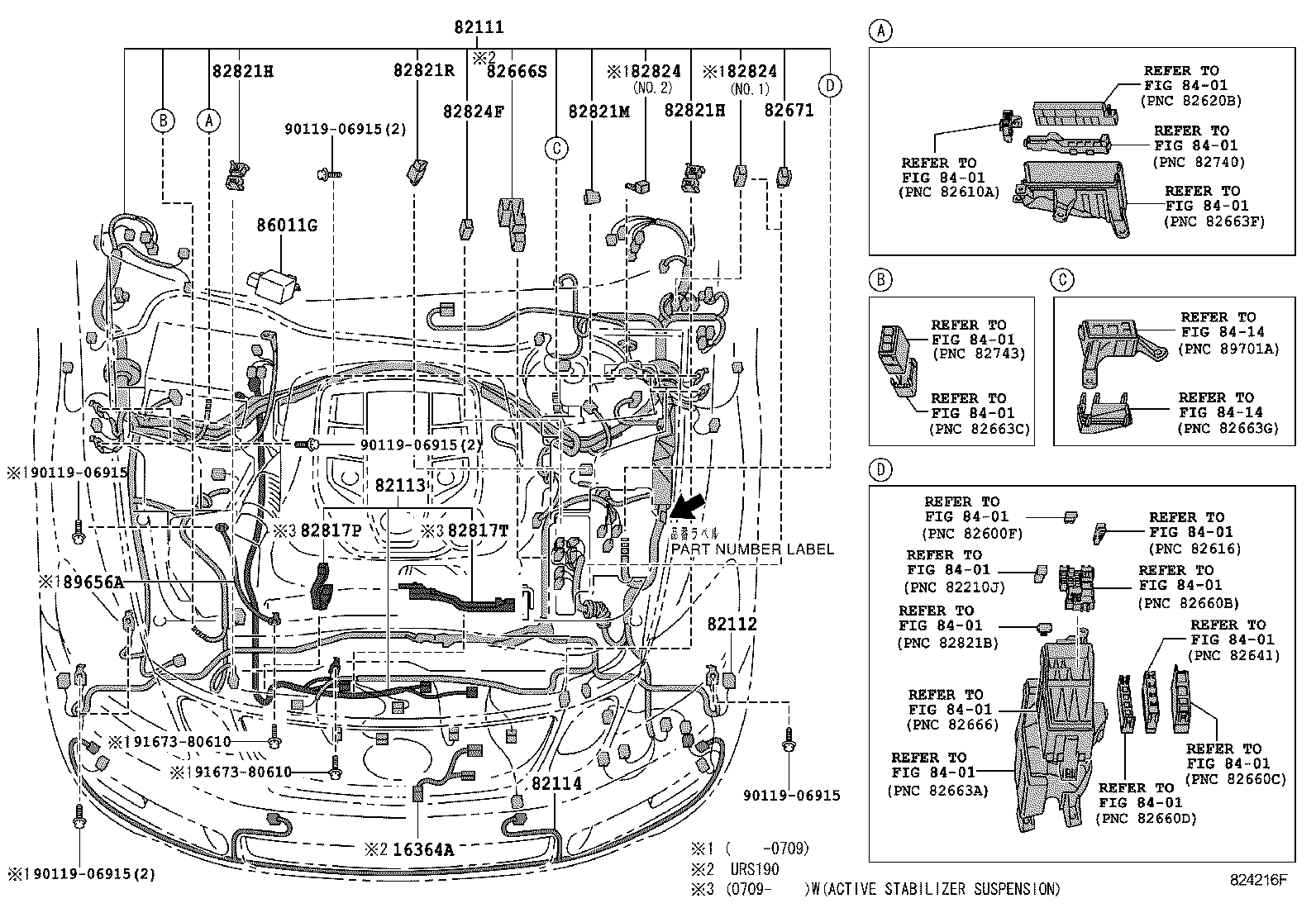

WIRING CLAMP

ENGINE ROOM ILLUST NO. 1 OF10(0501- )

GS30 35 43 460 | WIRING CLAMP 16364A - WIRE, COOLING FAN 82111 - WIRE, ENGINE ROOM MAIN 82112 - WIRE, ENGINE ROOM, NO.2 82113 - WIRE, ENGINE ROOM, NO.3 82114 - WIRE, ENGINE ROOM, NO.4 82666S - HOLDER, CONNECTOR NO.13 82671 - BLOCK, JUNCTION 82817P - PROTECTOR, WIRING HARNESS, NO.14 82817T - PROTECTOR, WIRING HARNESS, NO.15 82821H - COVER, CONNECTOR 82821H - COVER, CONNECTOR 82821M - COVER, CONNECTOR 82821R - COVER, CONNECTOR 82824 - CONNECTOR, WIRING HARNESS 82824 - CONNECTOR, WIRING HARNESS 82824F - CONNECTOR, WIRING HARNESS ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 86011G - CONDENSER 89656A - WIRE, POWER STEERING EARTH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
