LEXUS GS30 35 43 460 GRS195L-BETQHA / ELECTRICAL / WIRING CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

WIRING CLAMP

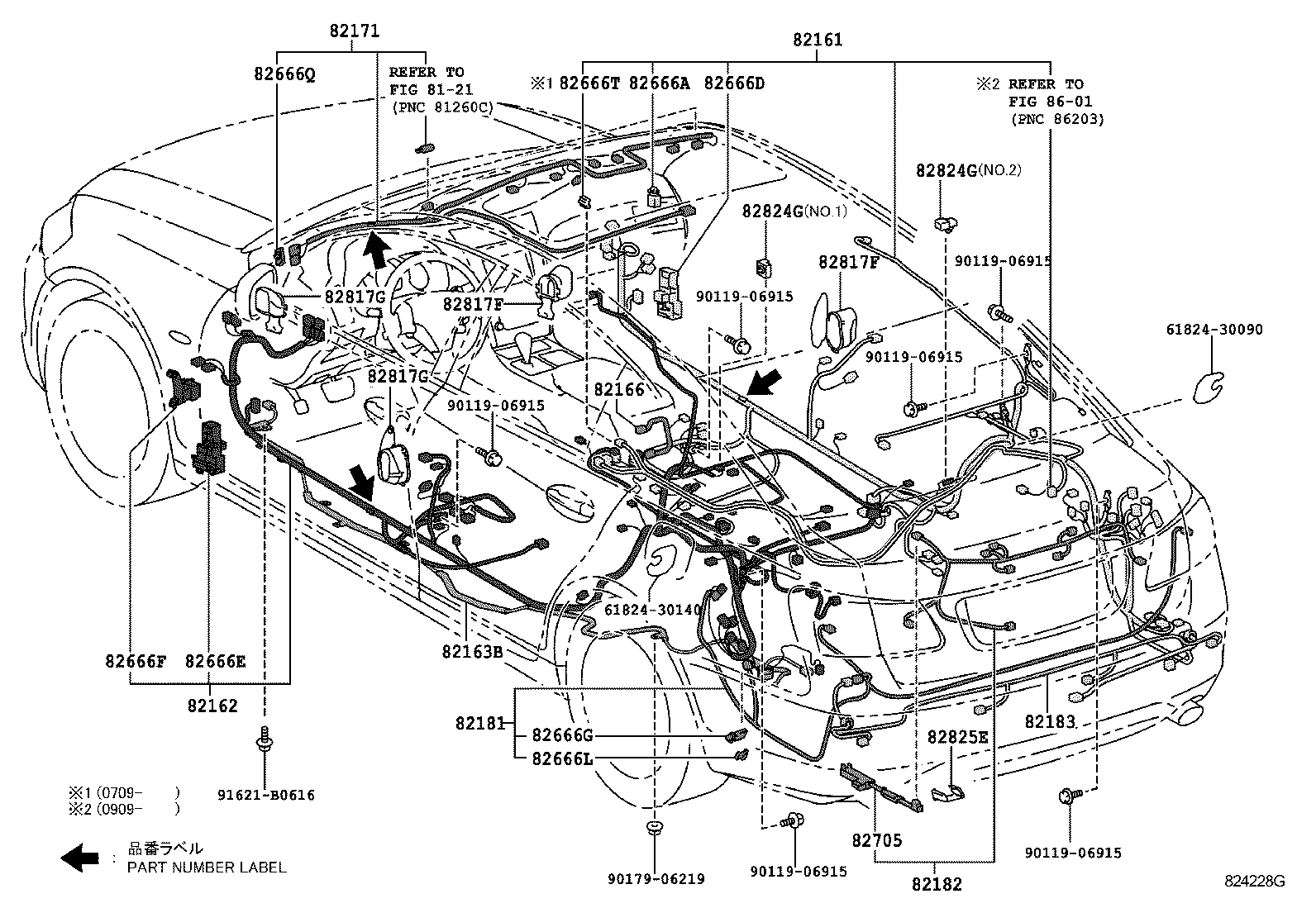

FLOOR & ROOF ILLUST NO. 5 OF10(0501- )

GS30 35 43 460 | WIRING CLAMP ** Std Part ** Std Part ** Refer Fig 82161 - WIRE, FLOOR 82162 - WIRE, FLOOR, NO.2 82163B - WIRE, FLOOR NO.5 82166 - WIRE, CONSOLE BOX 82171 - WIRE, ROOF, NO.1 82181 - WIRE, LUGGAGE ROOM, NO.1 82182 - WIRE, LUGGAGE ROOM, NO.2 82183 - WIRE, LUGGAGE ROOM, NO.3 82666A - HOLDER, CONNECTOR NO.2 82666D - HOLDER, CONNECTOR NO.5 82666E - HOLDER, CONNECTOR NO.6 82666F - HOLDER, CONNECTOR NO.7 82666G - HOLDER, CONNECTOR NO.8 82666L - HOLDER, CONNECTOR NO.9 82666Q - HOLDER, CONNECTOR NO.12 82666T - HOLDER, CONNECTOR NO.14 82705 - SPOOL SUB-ASSY, WIRING HARNESS 82817F - PROTECTOR, WIRING HARNESS, NO.7 82817F - PROTECTOR, WIRING HARNESS, NO.7 82817G - PROTECTOR, WIRING HARNESS, NO.8 82817G - PROTECTOR, WIRING HARNESS, NO.8 82824G - CONNECTOR, WIRING HARNESS 82824G - CONNECTOR, WIRING HARNESS 82825E - CONNECTOR, WIRING HARNESS ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
