LEXUS GX470 UZJ120L-GKAZKA / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COOLER PIPING

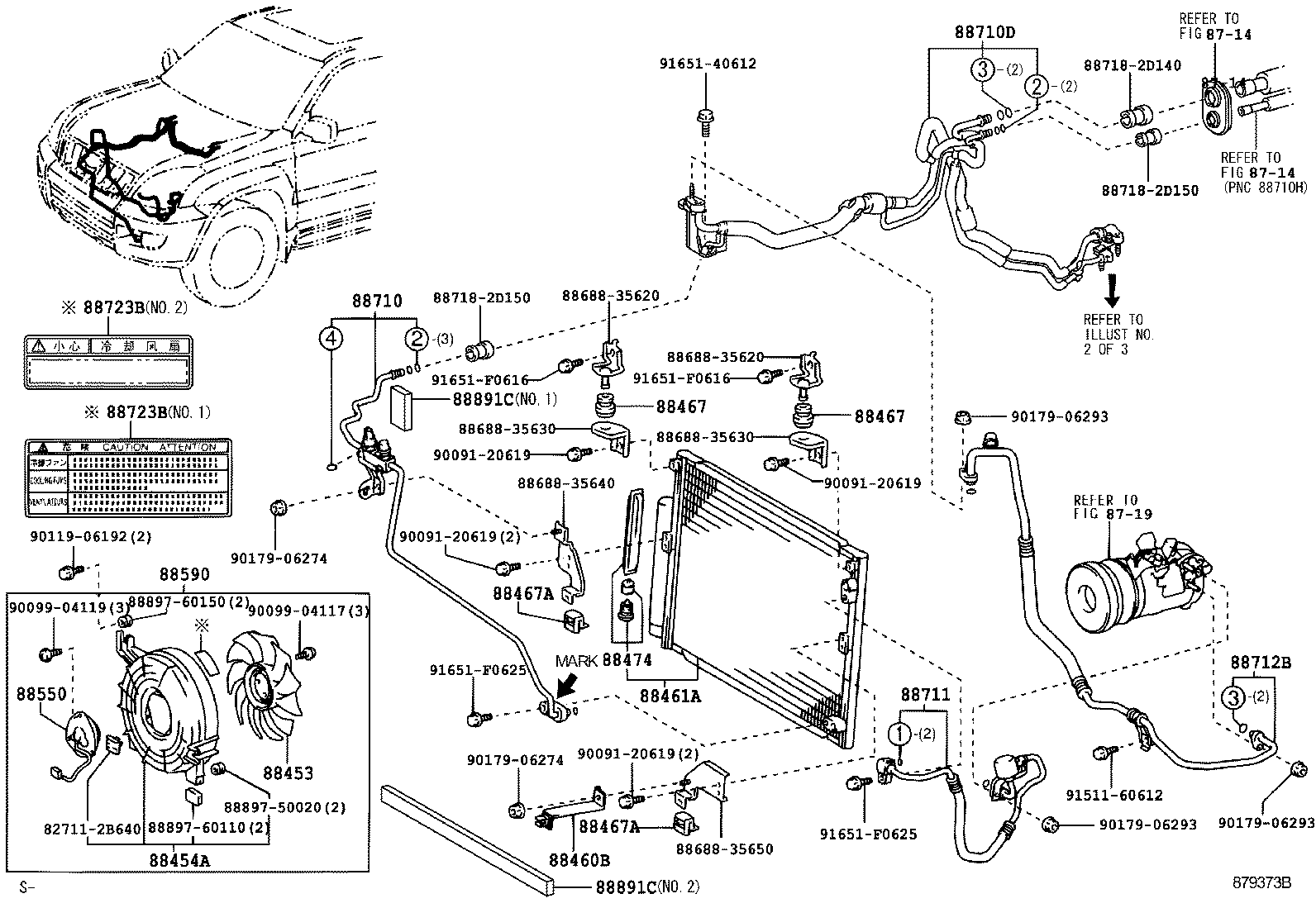

FRONT-DUAL AIR CONDITIONER ILLUST NO. 1 OF 3(0601- )

 GX470 |  HEATING AIR CONDITIONING COOLER PIPING  ** Std Part ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 88453 - FAN, COOLING (FOR CONDENSER) 88454A - SHROUD, FAN 88460B - BRACKET, COOLER CONDENSER, NO.1 88461A - CORE, COOLER CONDENSER 88467 - CUSHION, COOLER CONDENSER, NO.1 88467 - CUSHION, COOLER CONDENSER, NO.1 88467A - CUSHION, COOLER CONDENSER, NO.2 88467A - CUSHION, COOLER CONDENSER, NO.2 88474 - DRYER, COOLER 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) 88590 - BLOWER ASSY, W/SHROUD  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part 88710 - TUBE ASSY, AIRCONDITIONER 88710D - TUBE ASSY, AIRCONDITIONER 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 88712B - HOSE, COOLER REFRIGERANT SUCTION  ** Std Part  ** Std Part  ** Std Part 88723B - LABEL, COOLER SERVICE CAUTION 88723B - LABEL, COOLER SERVICE CAUTION 88891C - PACKING C (FOR COOLER) 88891C - PACKING C (FOR COOLER)  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
