LEXUS GS30 35 43 460 GRS196L-BETQHA / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

FUEL TUBE ILLUST NO. 2 OF 2(0608- )GRS19#

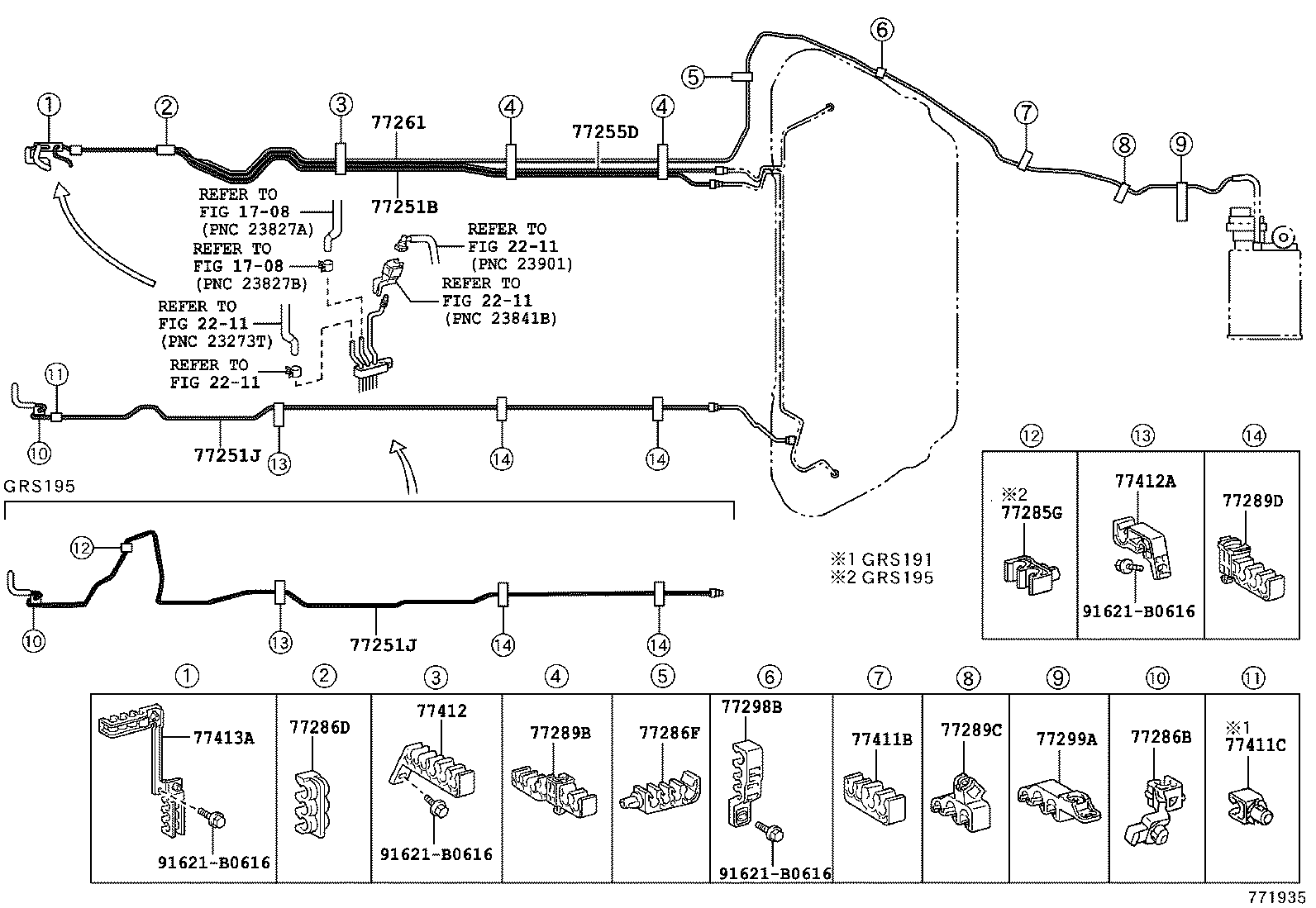

 GS30 35 43 460 |  FUEL TANK TUBE ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 77251B - TUBE, FUEL MAIN 77251J - TUBE, FUEL MAIN, NO.1 77251J - TUBE, FUEL MAIN, NO.1 77255D - TUBE, FUEL RETURN 77261 - TUBE SUB-ASSY, FUEL EMISSION 77285G - CLAMP, FUEL TUBE, NO.1 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 77286D - CLAMP, FUEL TUBE, NO.2 77286F - CLAMP, FUEL TUBE, NO.2 77289B - CLAMP, FUEL TUBE, NO.3 77289C - CLAMP, FUEL TUBE, NO.4 77289D - CLAMP, FUEL TUBE, NO.5 77298B - CLAMP, FUEL TUBE, NO.4 77299A - CLAMP, FUEL TUBE, NO.5 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 77411C - SUPPORT, FUEL TUBE GROMMET, NO.1 77412 - SUPPORT, FUEL TUBE GROMMET, NO.2 77412A - SUPPORT, FUEL TUBE GROMMET, NO.2 77413A - SUPPORT, FUEL TUBE GROMMET, NO.3  ** Std Part  ** Std Part  ** Std Part  ** Std Part
