LEXUS RX350 450H GGL15L-CWTGKA / BODY / INSTRUMENT PANEL GLOVE COMPARTMENT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

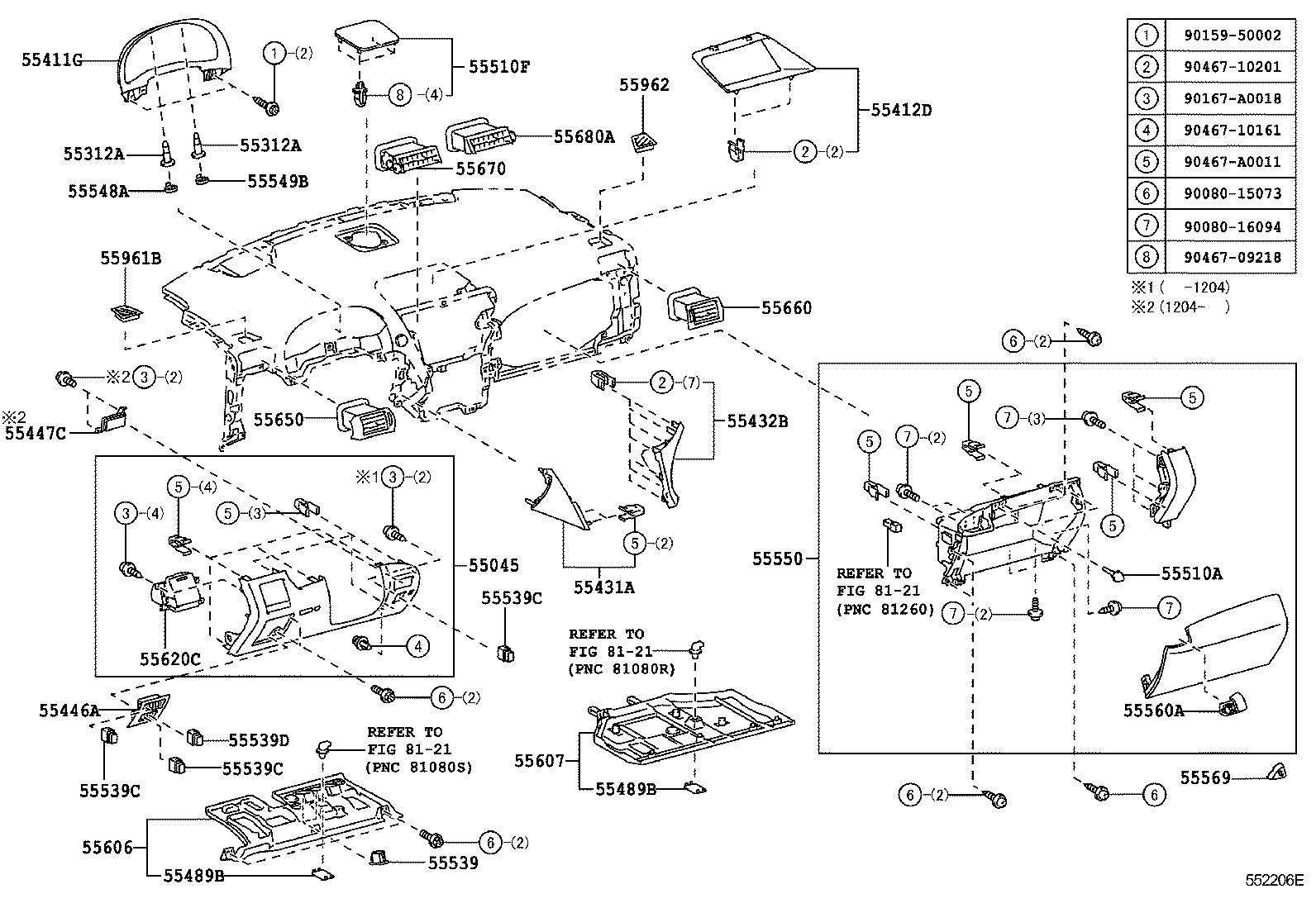

INSTRUMENT PANEL GLOVE COMPARTMENT

ILLUST NO. 2 OF 2(0901- )

RX350 450H | INSTRUMENT PANEL GLOVE COMPARTMENT 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER 55312A - CLIP, INSTRUMENT PANEL 55312A - CLIP, INSTRUMENT PANEL 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER 55431A - PANEL, INSTRUMENT PANEL FINISH 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER 55446A - BASE, SWITCH HOLE, NO.1 55447C - BASE, SWITCH HOLE, NO.2 55489B - LENS, FRONT FOOT LAMP, NO.2 55489B - LENS, FRONT FOOT LAMP, NO.2 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) 55510F - COVER ASSY, SPEAKER OPENING, NO.1 55539 - COVER, SPARE SWITCH HOLE 55539C - COVER, SPARE SWITCH HOLE 55539C - COVER, SPARE SWITCH HOLE 55539C - COVER, SPARE SWITCH HOLE 55539D - COVER, SPARE SWITCH HOLE 55548A - COVER, INSTRUMENT PANEL HOLE 55549B - COVER, INSTRUMENT PANEL HOLE, NO.2 55550 - DOOR ASSY, GLOVE COMPARTMENT 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 55620C - HOLDER, INSTRUMENT PANEL CUP 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4 55961B - NOZZLE, SIDE DEFROSTER, NO.1 55962 - NOZZLE, SIDE DEFROSTER, NO.2 ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
