LEXUS RX350 450H GGL15L-CWTGKA / BODY / CONSOLE BOX BRACKET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

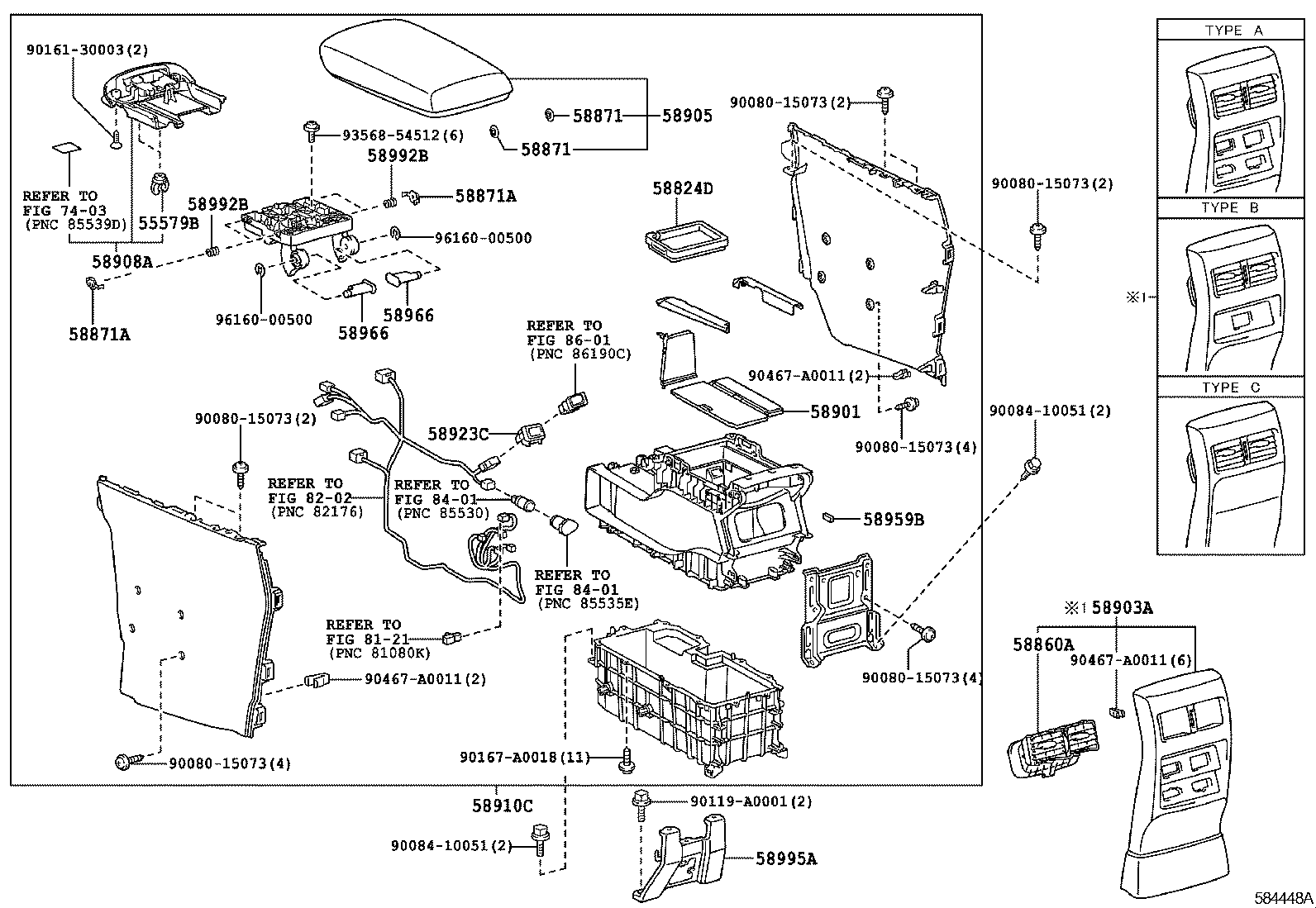

CONSOLE BOX BRACKET

ILLUST NO. 2 OF 2(1204- )

RX350 450H | CONSOLE BOX BRACKET 55579B - BAND, GLOVE COMPARTMENT BOX 58824D - BOX, CONSOLE COIN 58860A - REGISTER ASSY, CONSOLE BOX 58871 - CUSHION, CONSOLE BOX 58871 - CUSHION, CONSOLE BOX 58871A - CUSHION, CONSOLE BOX, NO.2 58871A - CUSHION, CONSOLE BOX, NO.2 58901 - PANEL SUB-ASSY, BOX 58903A - PANEL SUB-ASSY, CONSOLE REAR END 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR 58910C - BOX ASSY, CONSOLE, REAR 58923C - PLATE, BOX, UPPER NO.3 58959B - CUSHION, CONSOLE COMPARTMENT DOOR 58966 - SHAFT, BOX DOOR HINGE 58966 - SHAFT, BOX DOOR HINGE 58992B - LOCK, CONSOLE 58992B - LOCK, CONSOLE 58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1 ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
