LEXUS RX350 450H GGL15L-CWTGKA / BODY / SIDE MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

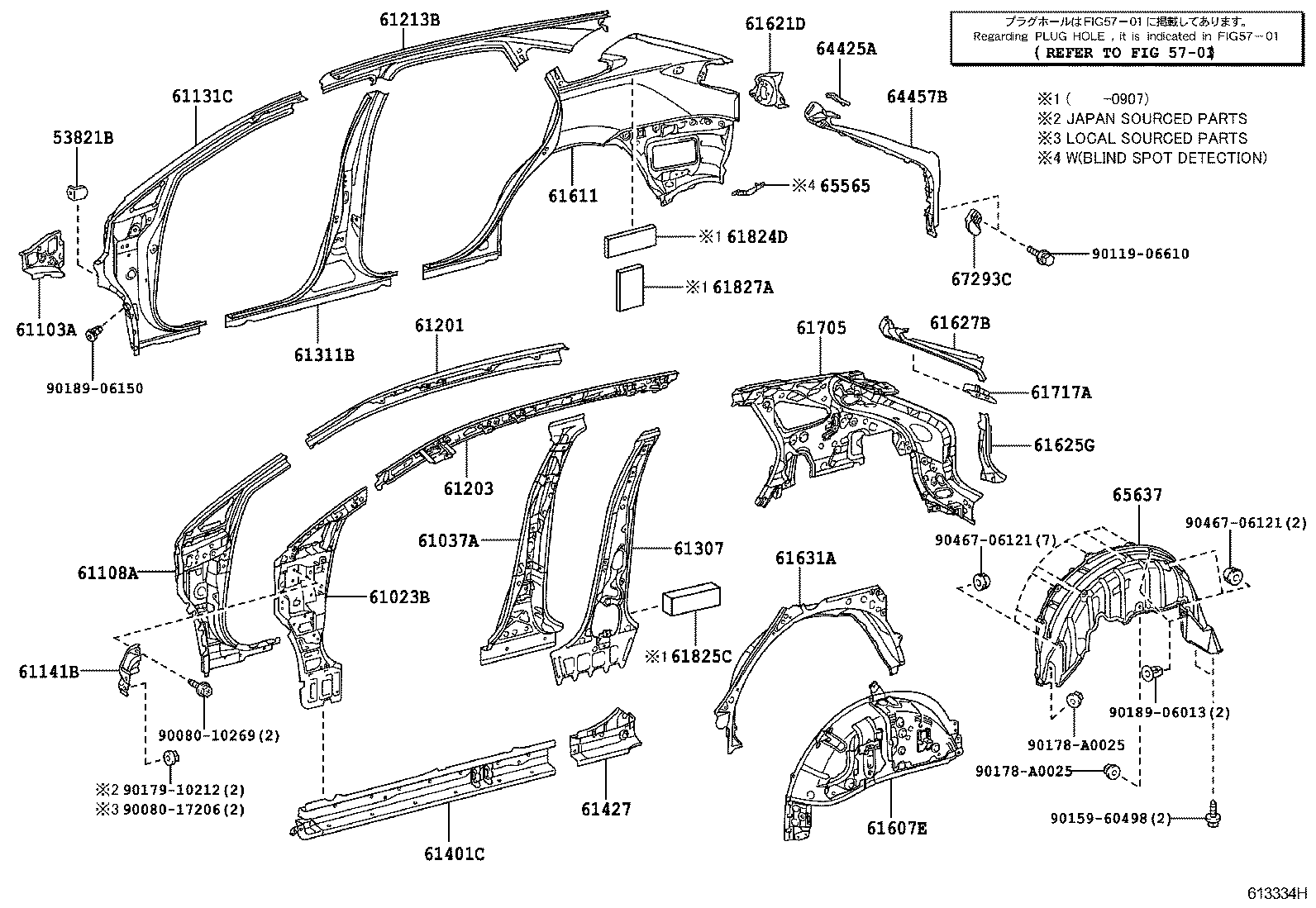

SIDE MEMBER

RH ILLUST NO. 1 OF 2(0901- )

RX350 450H | SIDE MEMBER 53821B - BRACKET, FRONT FENDER, REAR RH ** Refer Fig 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH 61103A - REINFORCEMENT SUB-ASSY, COWL SIDE, RH 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH 61131C - PILLAR, FRONT BODY, OUTER RH 61141B - GUSSET, FRONT BODY PILLAR, UPPER RH 61201 - RAIL SUB-ASSY, ROOF SIDE, RH 61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH 61213B - RAIL, ROOF SIDE, OUTER NO.2 RH 61307 - PILLAR SUB-ASSY, CENTER BODY, INNER RH 61311B - PILLAR, CENTER BODY, OUTER RH 61401C - PANEL SUB-ASSY, ROCKER, OUTER RH 61427 - REINFORCEMENT, ROCKER PANEL, NO.5 RH 61607E - PANEL, QUARTER WHEEL HOUSE, INNER RH 61611 - PANEL, QUARTER, RH 61621D - TROUGH, BACK DOOR OPENING, RH 61625G - EXTENSION, QUARTER PANEL, REAR RH 61627B - EXTENSION, QUARTER PANEL, UPPER REAR RH 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH 61705 - PANEL SUB-ASSY, ROOF SIDE, INNER RH 61717A - REINFORCEMENT, QUARTER PANEL EXTENSION, RH 61824D - PLATE, NOISE CONTROL, NO.1 61825C - PAD, NOISE SHUTTER, NO.2 61827A - PLATE, NOISE CONTROL, NO.4 64425A - PLUG, QUARTER PANEL, RH 64457B - COVER, BACK DOOR STOPPER CUSHION, RH 65565 - PATCH, SIDE PANEL REAR END, RH 65637 - LINER, REAR WHEEL HOUSE, RH 67293C - CUSHION, BACK DOOR STOPPER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
