LEXUS RX350 450H GGL15L-CWTGKA / BODY / SIDE MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

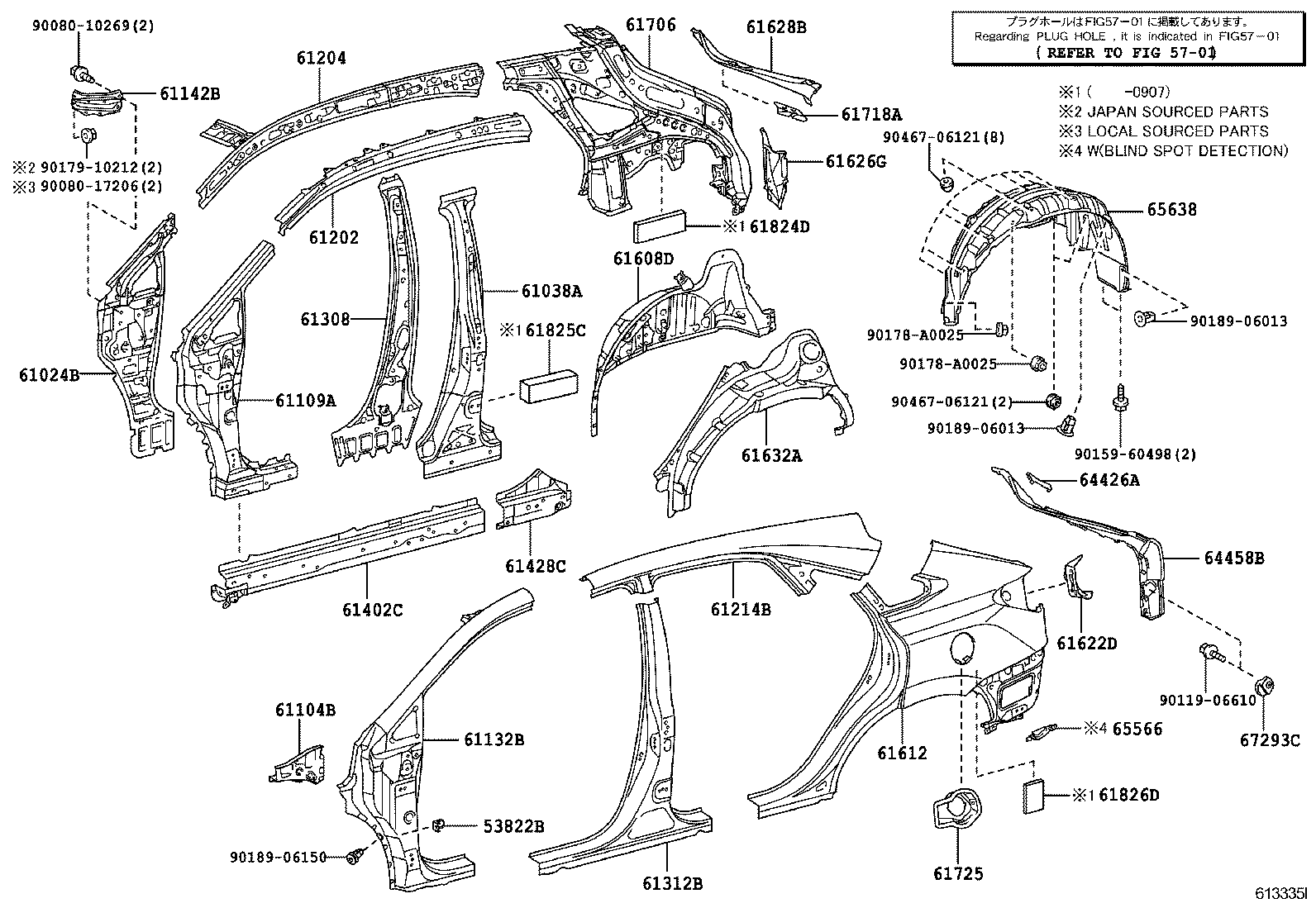

SIDE MEMBER

LH ILLUST NO. 2 OF 2(0901- )

RX350 450H | SIDE MEMBER 53822B - BRACKET, FRONT FENDER, REAR LH ** Refer Fig 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH 61104B - REINFORCEMENT SUB-ASSY, COWL SIDE, LH 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH 61132B - PILLAR, FRONT BODY, OUTER LH 61142B - GUSSET, FRONT BODY PILLAR, UPPER LH 61202 - RAIL SUB-ASSY, ROOF SIDE, LH 61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH 61214B - RAIL, ROOF SIDE, OUTER NO.2 LH 61308 - PILLAR SUB-ASSY, CENTER BODY, INNER LH 61312B - PILLAR, CENTER BODY, OUTER LH 61402C - PANEL SUB-ASSY, ROCKER, OUTER LH 61428C - REINFORCEMENT, ROCKER PANEL, NO.5 LH 61608D - PANEL, QUARTER WHEEL HOUSE, INNER LH 61612 - PANEL, QUARTER, LH 61622D - TROUGH, BACK DOOR OPENING, LH 61626G - EXTENSION, QUARTER PANEL, REAR LH 61628B - EXTENSION, QUARTER PANEL, UPPER REAR LH 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH 61706 - PANEL SUB-ASSY, ROOF SIDE, INNER LH 61718A - REINFORCEMENT, QUARTER PANEL EXTENSION, LH 61725 - BOX, FUEL INLET 61824D - PLATE, NOISE CONTROL, NO.1 61825C - PAD, NOISE SHUTTER, NO.2 61826D - PLATE, NOISE CONTROL, NO.3 64426A - PLUG, QUARTER PANEL, LH 64458B - COVER, BACK DOOR STOPPER CUSHION, LH 65566 - PATCH, SIDE PANEL REAR END, LH 65638 - LINER, REAR WHEEL HOUSE, LH 67293C - CUSHION, BACK DOOR STOPPER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
