LEXUS RX350 450H GGL15L-CWTGKA / BODY / FRONT DOOR PANEL GLASS

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FRONT DOOR PANEL GLASS

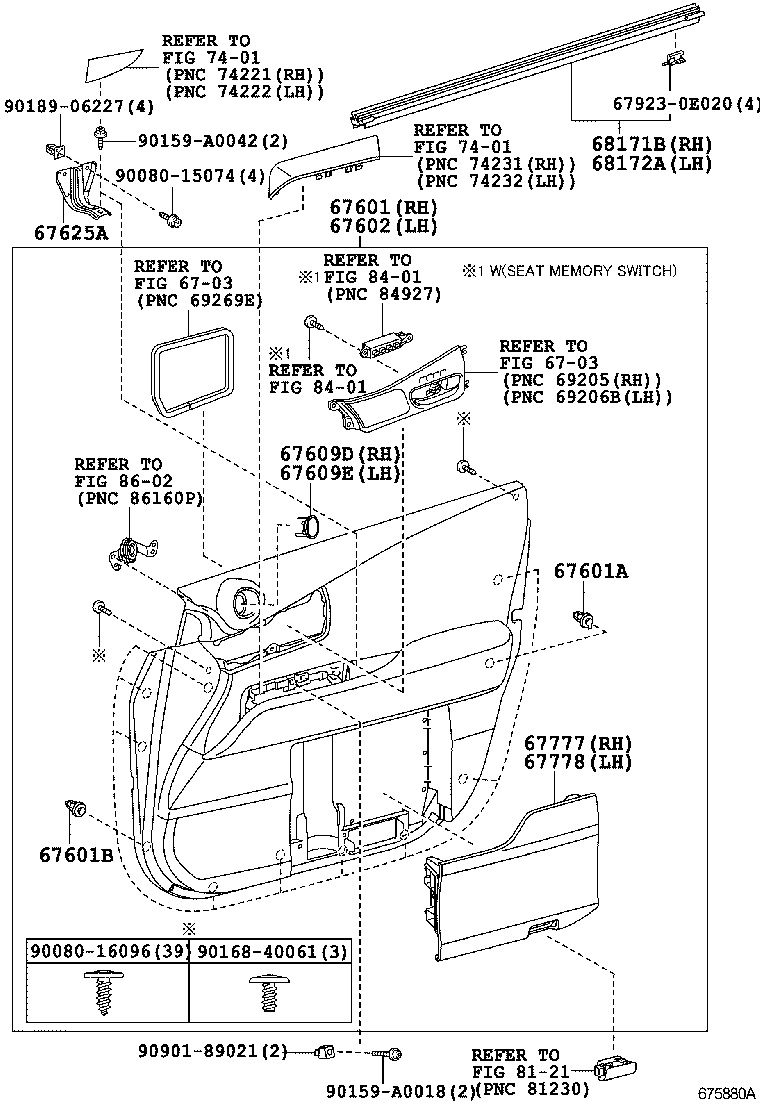

DOOR TRIM ILLUST NO. 2 OF 3(0901- )

RX350 450H | FRONT DOOR PANEL GLASS ** Refer Fig ** Refer Fig 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH 67609D - GRILLE SUB-ASSY, FRONT DOOR SPEAKER, RH 67609E - GRILLE SUB-ASSY, FRONT DOOR SPEAKER, LH 67625A - BRACKET, FRONT DOOR TRIM, NO.1 67777 - POCKET, FRONT DOOR TRIM, RH 67778 - POCKET, FRONT DOOR TRIM, LH ** Std Part 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
