LEXUS RX350 450H GGL15L-CWTGKA / BODY / FRONT SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

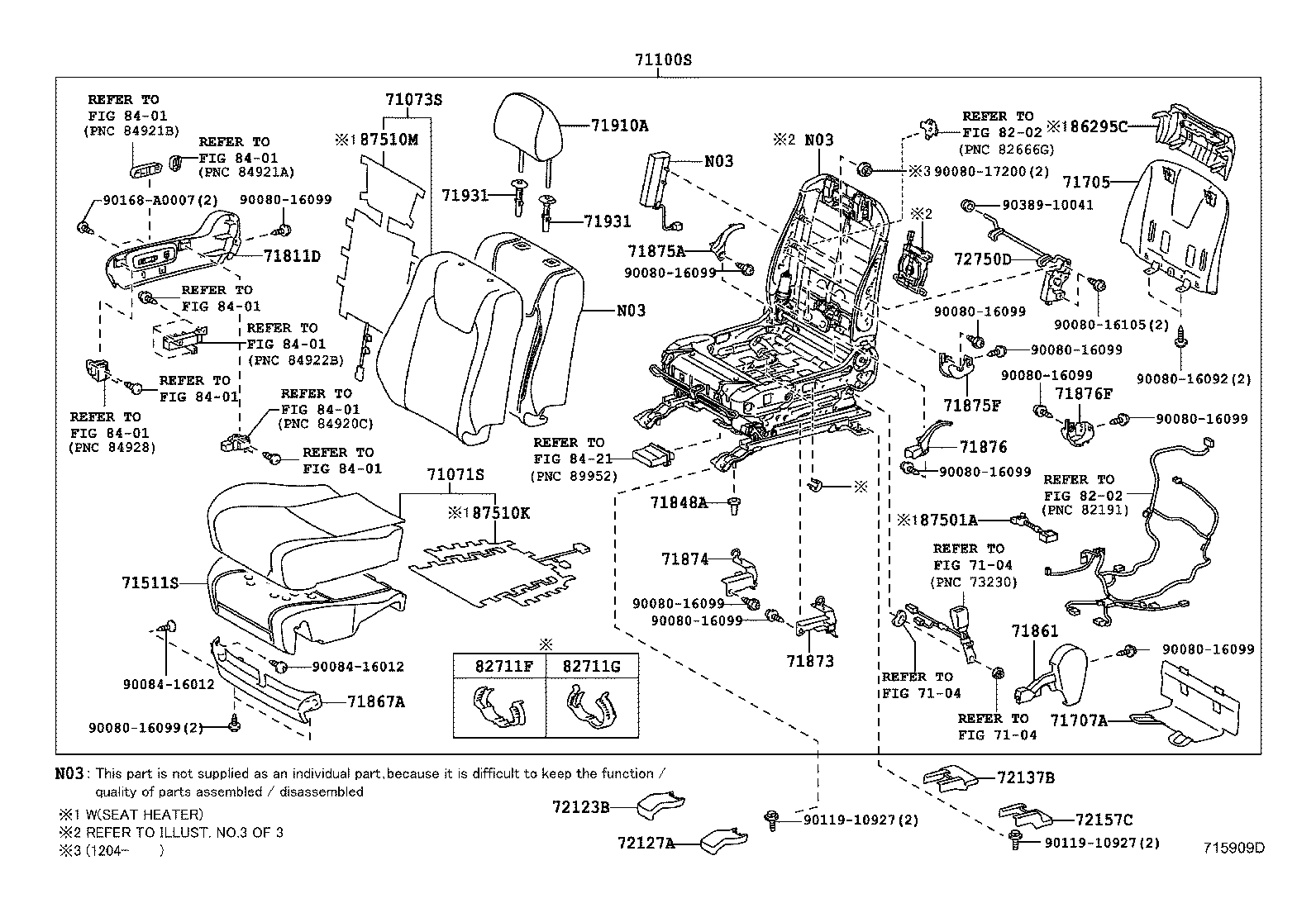

FRONT SEAT SEAT TRACK

PASSENGER SEAT ILLUST NO. 2 OF 3(0901- )

RX350 450H | FRONT SEAT SEAT TRACK ** Refer Fig ** Refer Fig ** Refer Fig 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71100S - SEAT ASSY, FRONT RH 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH 71707A - COVER SUB-ASSY, FRONT SEAT BACK BOARD 71811D - SHIELD, FRONT SEAT CUSHION, RH 71848A - CAP, SEAT ADJUSTER COVER, RH 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH 71875A - COVER, RECLINING ADJUSTER INSIDE, RH 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) 71876 - COVER, RECLINING ADJUSTER INSIDE, LH 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) 71910A - HEADREST ASSY, FRONT SEAT 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 72123B - COVER, SEAT TRACK BRACKET, OUTER FRONT 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH 72137B - COVER, SEAT TRACK, RH 72157C - COVER, SEAT TRACK BRACKET, INNER RH 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH ** Refer Fig ** Refer Fig 82711F - CLAMP, WIRING HARNESS 82711G - CLAMP, WIRING HARNESS ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 86295C - BASE, TELEVISION, NO.1 87501A - CONTROL SUB-ASSY, SEAT HEATER, RH 87510K - HEATER ASSY, FRONT SEAT CUSHION, RH 87510M - HEATER ASSY, FRONT SEAT BACK, RH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
