LEXUS RX350 450H GGL15L-CWTGKA / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

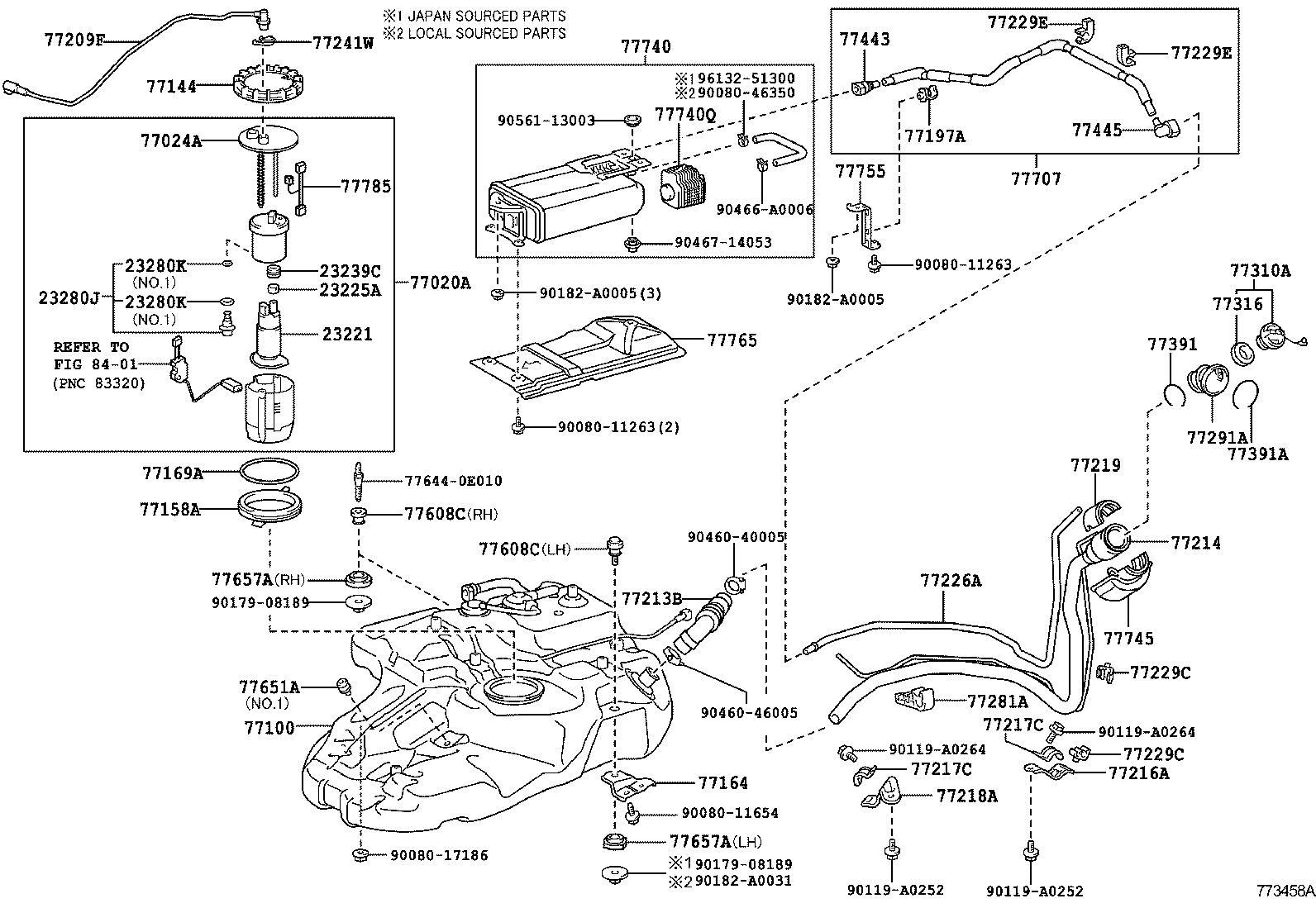

FUEL TANK ILLUST NO. 1 OF 3(1309- )GGL1#

RX350 450H | FUEL TANK TUBE 23221 - PUMP, FUEL 23225A - SPACER, FUEL PUMP 23239C - SEAL, FUEL PUMP FILTER 23280J - REGULATOR ASSY, FUEL PRESSURE 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE 77024A - PLATE SUB-ASSY, FUEL SUCTION 77100 - TANK ASSY, FUEL 77144 - RETAINER, FUEL PUMP GAUGE 77158A - SUPPORT, TANK SUCTION TUBE 77164 - BRACKET, FUEL TANK, REAR LH 77169A - GASKET, FUEL SUCTION TUBE SET 77197A - CLAMP, EVAPORATION VENT TUBE, NO.2 77209F - TUBE SUB-ASSY, FUEL TANK MAIN 77213B - HOSE, FUEL TANK TO FILLER PIPE 77214 - PIPE, FUEL TANK FILLER 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 77217C - SUPPORT, FUEL TANK FILLER PIPE, NO.2 77217C - SUPPORT, FUEL TANK FILLER PIPE, NO.2 77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3 77219 - COVER, FUEL TANK FILLER PIPE 77226A - TUBE, FUEL TANK BREATHER, NO.6 77229C - CLAMP, BREATHER TUBE 77229C - CLAMP, BREATHER TUBE 77229E - CLAMP, BREATHER TUBE 77229E - CLAMP, BREATHER TUBE 77241W - CLIP, TUBE JOINT 77281A - CLAMP, FUEL FILLER PIPE 77291A - SHIELD, FUEL TANK FILLER PIPE 77310A - CAP ASSY, FUEL TANK 77316 - GASKET, FUEL TANK CAP 77391 - RING, FUEL INLET BOX 77391A - RING, FUEL INLET BOX 77443 - CONNECTOR, FUEL TANK VENT 77445 - CONNECTOR, FUEL TANK VENT, NO.2 77608C - CUSHION SET, FUEL TANK 77608C - CUSHION SET, FUEL TANK ** Std Part 77651A - CUSHION, FUEL TANK, NO.1 77657A - CUSHION, FUEL TANK, NO.5 77657A - CUSHION, FUEL TANK, NO.5 77707 - TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET 77740 - CANISTER ASSY, CHARCOAL 77740Q - LEAK DETECTION PUMP SUB-ASSY, CHARCOAL CANISTER 77745 - FILTER, CHARCOAL CANISTER, NO.1 77755 - BRACKET, CHARCOAL CANISTER OUTLET HOSE 77765 - PROTECTOR, CHARCOAL CANISTER 77785 - HARNESS, FUEL PUMP ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
