LEXUS RX350 450H GGL15L-CWTGKA / ELECTRICAL / WIRING CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

WIRING CLAMP

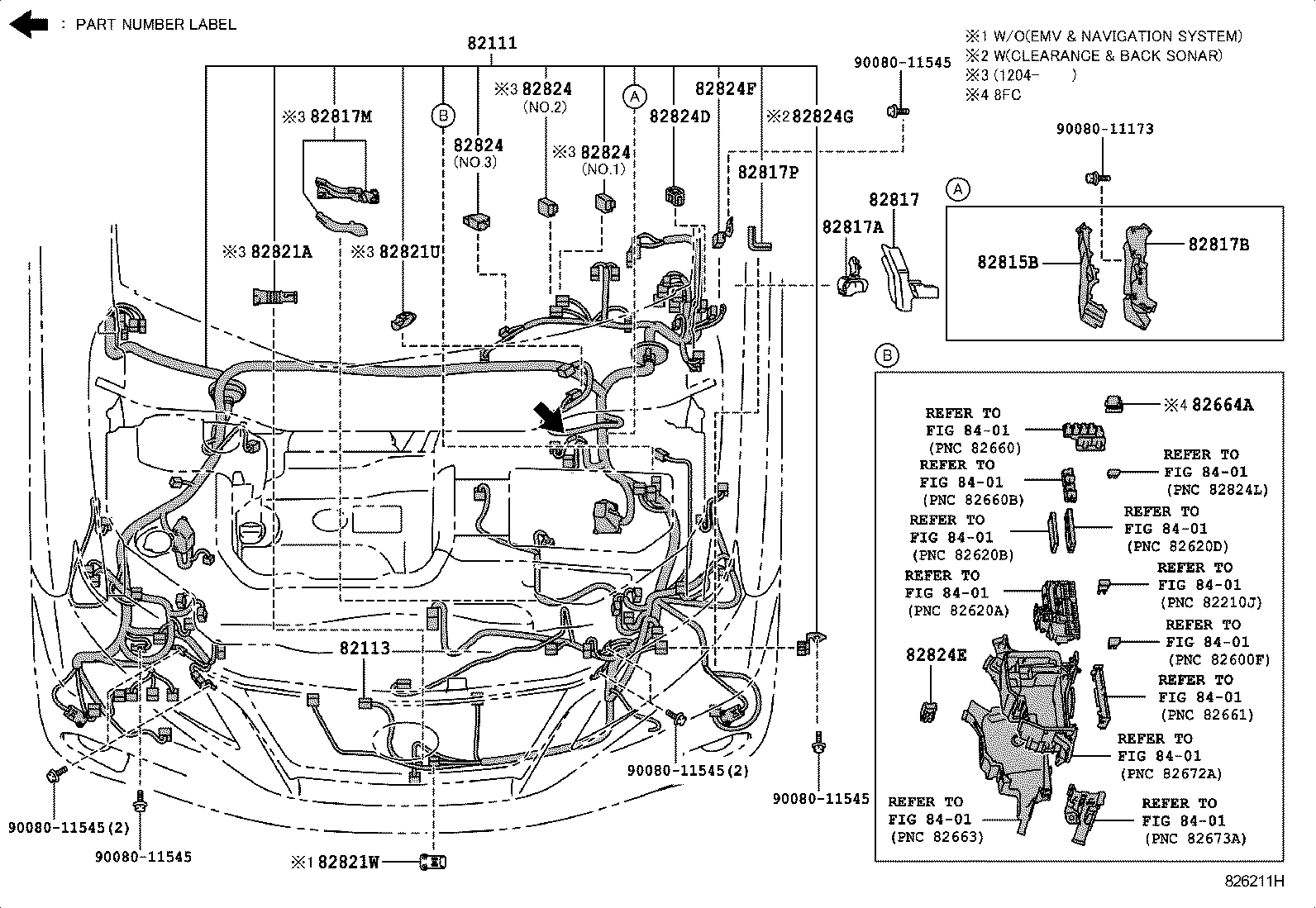

ENGINE ROOM ILLUST NO. 1 OF 9(0901- )GGL1#

RX350 450H | WIRING CLAMP 82111 - WIRE, ENGINE ROOM MAIN 82113 - WIRE, ENGINE ROOM, NO.3 82664A - BLOCK, CONNECTOR HOLDER 82815B - COVER, WIRING HARNESS PROTECTOR 82817 - PROTECTOR, WIRING HARNESS, NO.1 82817A - PROTECTOR, WIRING HARNESS, NO.2 82817B - PROTECTOR, WIRING HARNESS, NO.3 82817M - PROTECTOR, WIRING HARNESS, NO.12 82817P - PROTECTOR, WIRING HARNESS, NO.14 82821A - COVER, CONNECTOR 82821U - COVER, CONNECTOR 82821W - COVER, CONNECTOR 82824 - CONNECTOR, WIRING HARNESS 82824 - CONNECTOR, WIRING HARNESS 82824 - CONNECTOR, WIRING HARNESS 82824D - CONNECTOR, WIRING HARNESS 82824E - CONNECTOR, WIRING HARNESS 82824F - CONNECTOR, WIRING HARNESS 82824G - CONNECTOR, WIRING HARNESS ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
