LEXUS RX350 450H GGL15L-CWTGKA / ELECTRICAL / WIRING CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

WIRING CLAMP

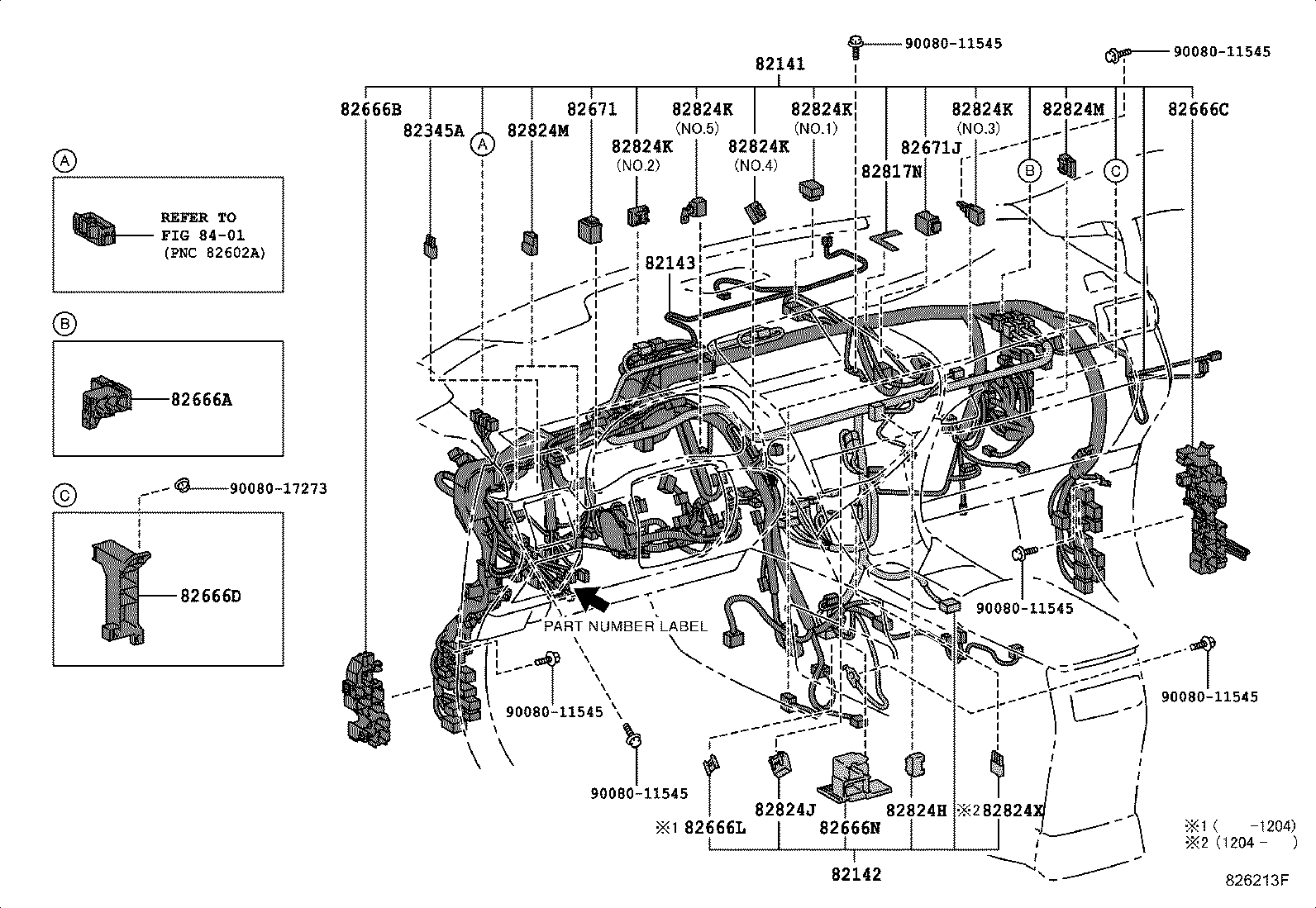

INSTRUMENT PANEL ILLUST NO. 3 OF 9(0901- )

RX350 450H | WIRING CLAMP 82141 - WIRE, INSTRUMENT PANEL 82142 - WIRE, INSTRUMENT PANEL, NO.2 82143 - WIRE, INSTRUMENT PANEL, NO.3 82345A - DIODE 82666A - HOLDER, CONNECTOR NO.2 82666B - HOLDER, CONNECTOR NO.3 82666C - HOLDER, CONNECTOR NO.4 82666D - HOLDER, CONNECTOR NO.5 82666L - HOLDER, CONNECTOR NO.9 82666N - HOLDER, CONNECTOR NO.10 82671 - BLOCK, JUNCTION 82671J - BLOCK, JUNCTION, NO.2 82817N - PROTECTOR, WIRING HARNESS, NO.13 82824H - CONNECTOR, WIRING HARNESS 82824J - CONNECTOR, WIRING HARNESS 82824K - CONNECTOR, WIRING HARNESS 82824K - CONNECTOR, WIRING HARNESS 82824K - CONNECTOR, WIRING HARNESS 82824K - CONNECTOR, WIRING HARNESS 82824K - CONNECTOR, WIRING HARNESS 82824M - CONNECTOR, WIRING HARNESS 82824M - CONNECTOR, WIRING HARNESS 82824X - CONNECTOR, WIRING HARNESS ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
