LEXUS RX350 450H GGL15L-CWTGKA / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

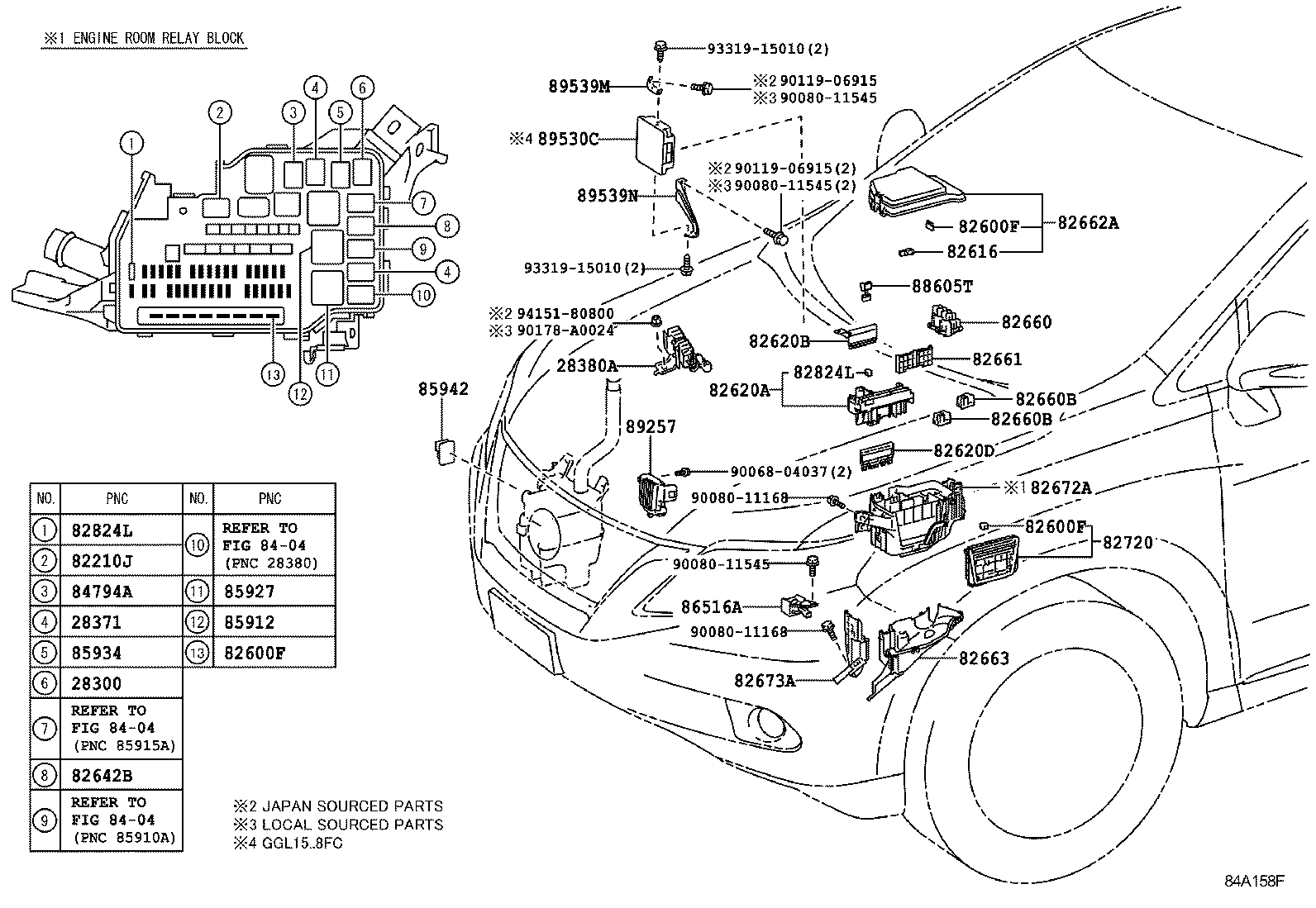

ENGINE ROOM ILLUST NO. 2 OF 7(0901- )GGL1#

RX350 450H | SWITCH RELAY COMPUTER 28300 - RELAY ASSY, STARTER 28371 - RELAY, IGNITION, NO.1 28380A - RESISTER, FUEL PUMP 82210J - FUSIBLE LINK 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82616 - PULLER, FUSE 82620A - BLOCK ASSY, FUSIBLE LINK 82620B - BLOCK ASSY, FUSIBLE LINK 82620D - BLOCK ASSY, FUSIBLE LINK 82642B - RELAY, DAY TIME RUNNING LIGHT, NO.1 82660 - BLOCK ASSY, RELAY, ENGINE ROOM 82660B - BLOCK ASSY, RELAY 82660B - BLOCK ASSY, RELAY 82661 - COVER, RELAY BLOCK, NO.1 82662A - COVER, RELAY BLOCK, UPPER, NO.1 82663 - COVER, RELAY BLOCK, LOWER 82672A - COVER, JUNCTION BLOCK 82673A - BRACKET, JUNCTION BLOCK 82720 - BLOCK ASSY, ENGINE ROOM JUNCTION 82824L - PIN, SHORT 82824L - PIN, SHORT ** Refer Fig ** Refer Fig ** Refer Fig 84794A - RELAY, FR WIPER DEICER 85912 - RELAY, DEFOGGER 85927 - RELAY, COOLING FAN 85934 - RELAY, MAGNET-CLUTCH 85942 - RELAY, HEADLAMP CLEANER CONTROL 86516A - CONDENSER 88605T - HARNESS SUB-ASSY, AIR CONDITIONER WIRING 89257 - COMPUTER, COOLING FAN 89530C - COMPUTER ASSY, TRANSMISSION CONTROL 89539M - BRACKET, TRANSMISSION CONTROL COMPUTER, NO.1 89539N - BRACKET, TRANSMISSION CONTROL COMPUTER, NO.2 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
