TOYOTA TOYOTA1000 KP36- / TOOL-ENGINE-FUEL / ALTERNATOR

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

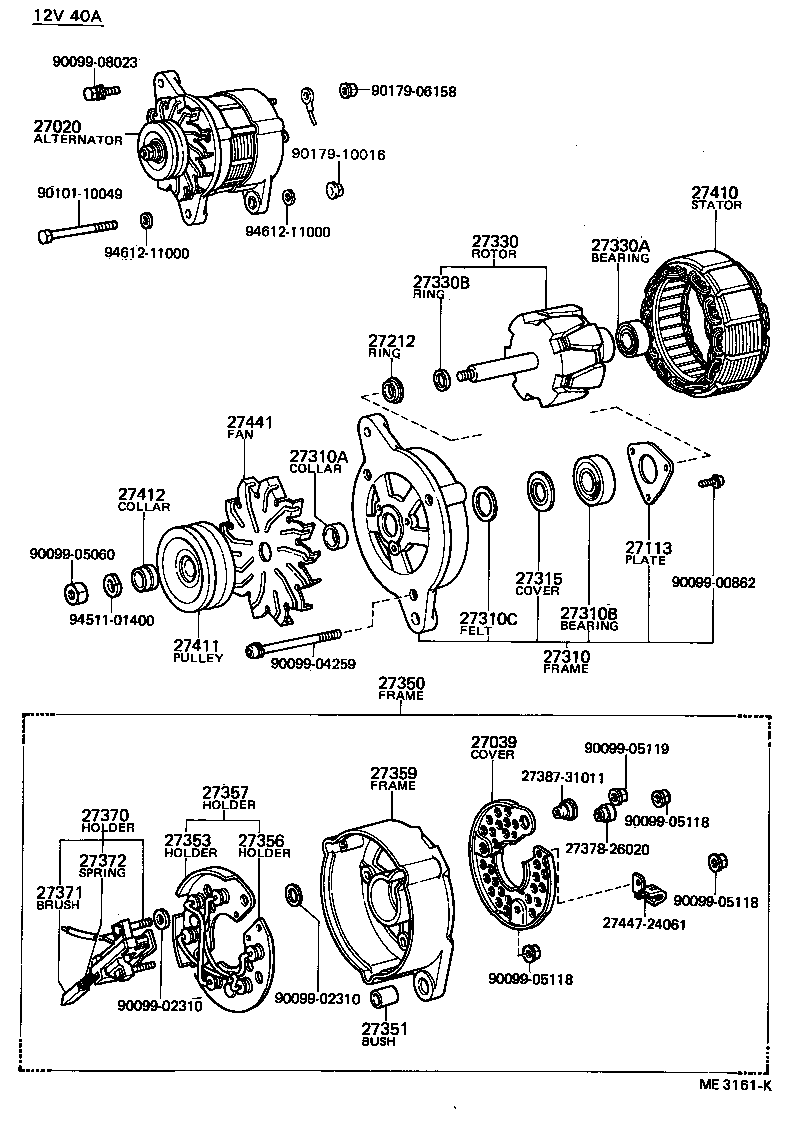

ALTERNATOR

(7405-7809)

TOYOTA1000 | ALTERNATOR 27020 - ALTERNATOR ASSY 27039 - COVER, ALTERNATOR REAR END 27113 - PLATE, BEARING RETAINER, ALTERNATOR 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) 27310 - FRAME ASSY, DRIVE END, ALTERNATOR 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) 27315 - COVER, ALTERNATOR FELT, INNER NO.1 27330 - ROTOR ASSY, ALTERNATOR 27330A - BEARING(FOR ALTERNATOR ROTOR) 27330B - RING, SNAP(FOR ALTERNATOR ROTOR) 27350 - FRAME ASSY, RECTIFIER END 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) 27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR 27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR 27357 - HOLDER, ALTERNATOR, W/RECTIFIER 27359 - FRAME, ALTERNATOR RECTIFIER END 27370 - HOLDER ASSY, ALTERNATOR BRUSH 27371 - BRUSH, ALTERNATOR 27372 - SPRING, ALTERNATOR BRUSH ** Std Part ** Std Part 27410 - STATOR ASSY, ALTERNATOR 27411 - PULLEY, ALTERNATOR 27412 - COLLAR, SPACER(FOR ALTERNATOR PULLEY) 27441 - FAN, ALTERNATOR ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
