TOYOTA HIACE RH20RV-JRFQ / TOOL-ENGINE-FUEL / CARBURETOR

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

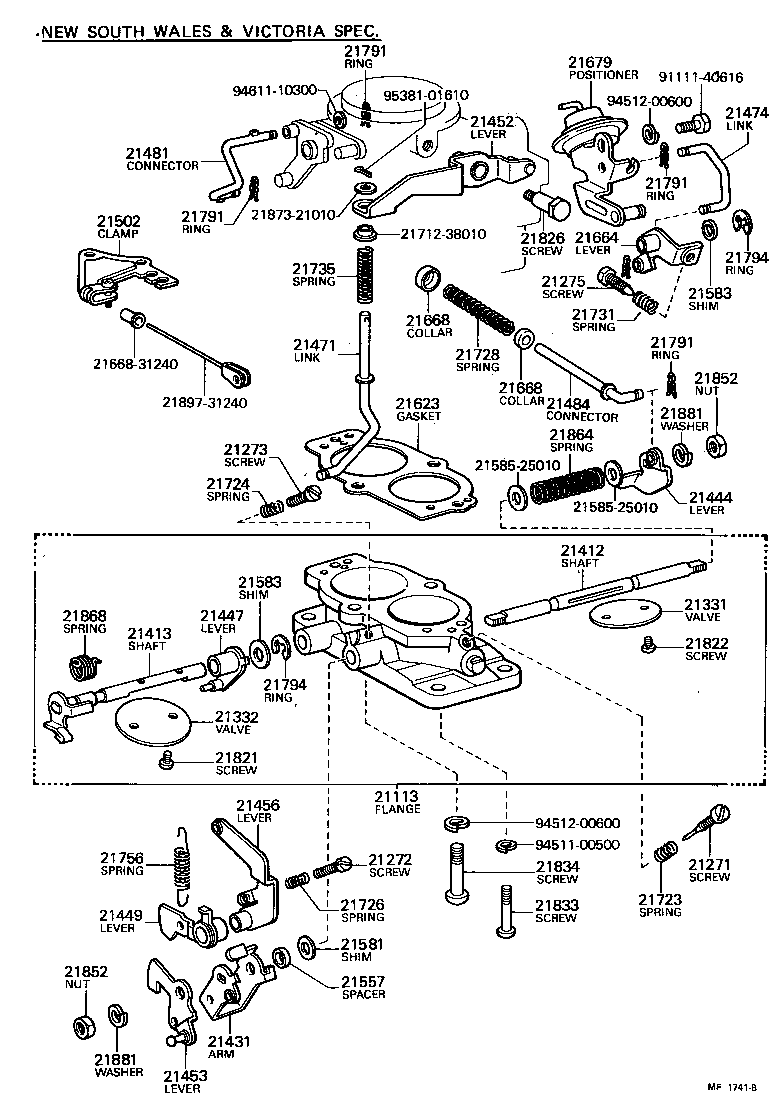

CARBURETOR

(7702-7808)12R..RH11,20..ARL

HIACE | CARBURETOR 21113 - FLANGE, CARBURETOR 21271 - SCREW, IDLE ADJUSTING 21272 - SCREW, 1ST IDLE ADJUSTING 21273 - SCREW, THROTTLE ADJUSTING 21275 - SCREW, ADJUSTING 21331 - VALVE, 1ST THROTTLE 21332 - VALVE, 2ND THROTTLE 21412 - SHAFT, 1ST THROTTLE 21413 - SHAFT, 2ND THROTTLE 21431 - ARM, 1ST THROTTLE SHAFT 21444 - LEVER(FOR RELOADER LINK MECHANISM) 21447 - LEVER, DIAPHRAGM 21449 - LEVER, 2ND KICK 21452 - LEVER, PUMP 21453 - LEVER, 1ST THROTTLE 21456 - LEVER, 1ST THROTTLE IDLE ADJUSTING, NO.1 21471 - LINK, PUMP CONNECTING 21474 - LINK, CONNECTING 21481 - CONNECTOR, 1ST IDLE 21484 - CONNECTOR(FOR OPENER) 21502 - CLAMP SUB-ASSY, CHOKE WIRE 21557 - SPACER(FOR 1ST IDLE CAM) 21581 - SHIM, 1ST THROTTLE SHAFT 21583 - SHIM, 2ND THROTTLE SHAFT 21583 - SHIM, 2ND THROTTLE SHAFT ** Std Part ** Std Part 21623 - GASKET, BODY FLANGE 21664 - LEVER(FOR DASH POT OR POSITIONER) 21668 - COLLAR 21668 - COLLAR ** Std Part 21679 - POSITIONER ** Std Part 21723 - SPRING, IDLE ADJUSTING 21724 - SPRING, THROTTLE ADJUSTING 21726 - SPRING, 1ST IDLE ADJUSTING 21728 - SPRING, THROTTLE VALVE RETURN 21731 - SPRING, DASH POT OR POSITIONER ADJUSTING 21735 - SPRING, PUMP ARM 21756 - SPRING, BACK(FOR THROTTLE SHAFT) 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21794 - RING, RETAINER, NO.1(FOR THROTTLE SHAFT) 21794 - RING, RETAINER, NO.1(FOR THROTTLE SHAFT) 21821 - SCREW, 2ND THROTTLE VALVE SET 21822 - SCREW, 1ST THROTTLE VALVE SET 21826 - SCREW, PUMP ARM SET 21833 - SCREW, SET, NO.1(FOR CARBURETOR BODY SET) 21834 - SCREW, SET, NO.2(FOR CARBURETOR BODY SET) 21852 - NUT, THROTTLE LEVER SET 21852 - NUT, THROTTLE LEVER SET 21864 - SPRING(FOR 1ST THROTTLE ARM) 21868 - SPRING, DIAPHRAGM RELIEF ** Std Part 21881 - WASHER, LOCK(FOR THROTTLE SHAFT) 21881 - WASHER, LOCK(FOR THROTTLE SHAFT) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
