TOYOTA CROWN MS85R-HGQ / TOOL-ENGINE-FUEL / CARBURETOR

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

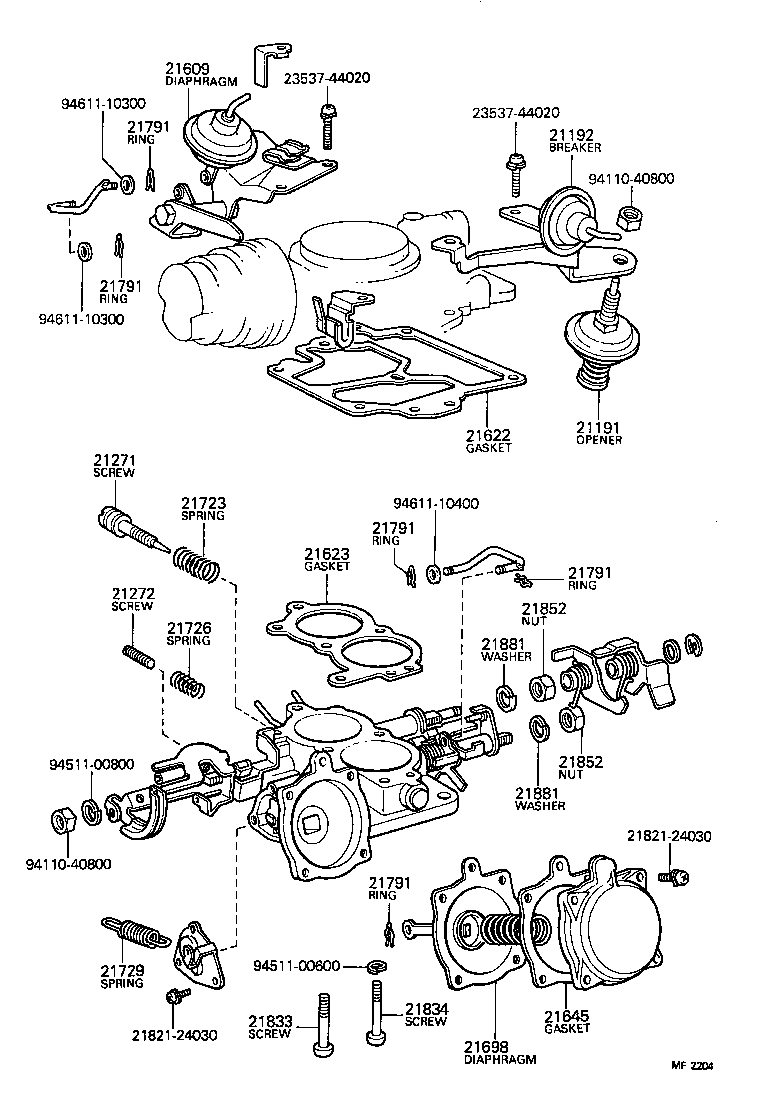

CARBURETOR

(7902-7908)4M..MS85..ARL

CROWN | CARBURETOR 21191 - OPENER 21192 - BREAKER 21271 - SCREW, IDLE ADJUSTING 21272 - SCREW, 1ST IDLE ADJUSTING 21609 - DIAPHRAGM SUB-ASSY 21622 - GASKET, AIR HORN 21623 - GASKET, BODY FLANGE 21645 - GASKET, DIAPHRAGM, CAP 21698 - DIAPHRAGM 21723 - SPRING, IDLE ADJUSTING 21726 - SPRING, 1ST IDLE ADJUSTING 21729 - SPRING, 1ST THROTTLE BACK 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) ** Std Part ** Std Part 21833 - SCREW, SET, NO.1(FOR CARBURETOR BODY SET) 21834 - SCREW, SET, NO.2(FOR CARBURETOR BODY SET) 21852 - NUT, THROTTLE LEVER SET 21852 - NUT, THROTTLE LEVER SET 21881 - WASHER, LOCK(FOR THROTTLE SHAFT) 21881 - WASHER, LOCK(FOR THROTTLE SHAFT) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
