TOYOTA MODEL F CR21LG-MQW / POWERTRAIN-CHASSIS / FRONT STEERING GEAR LINK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

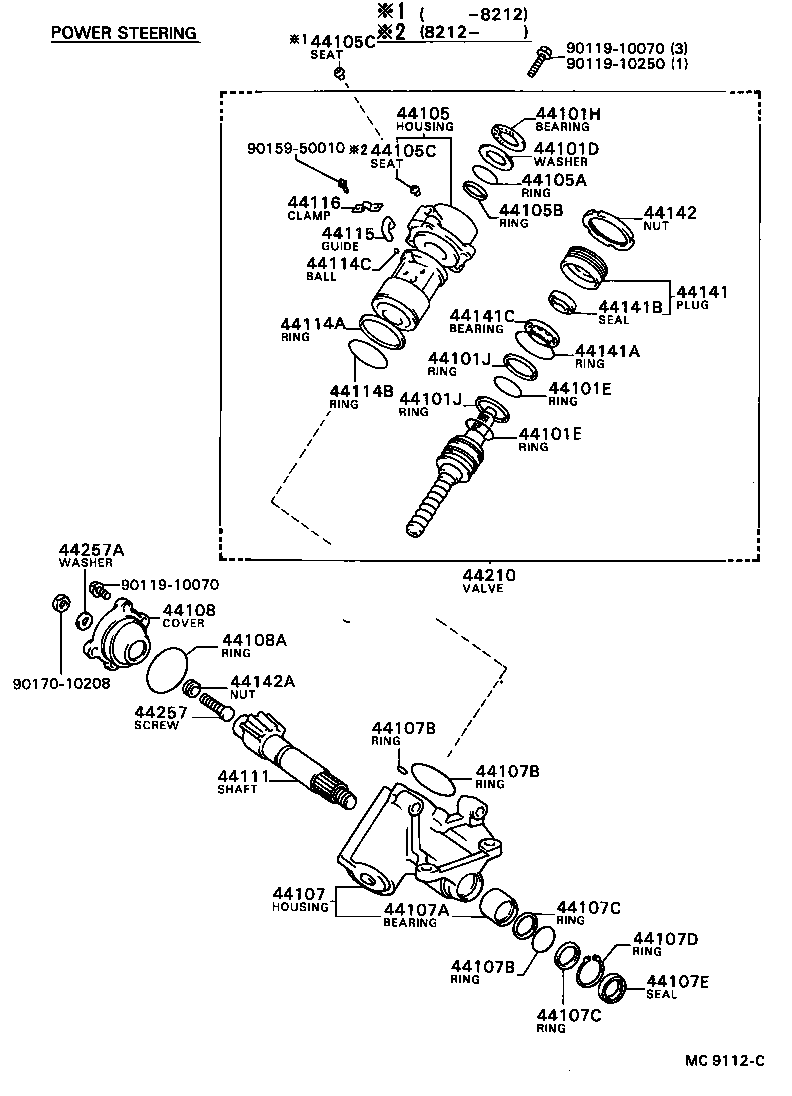

FRONT STEERING GEAR LINK

ILLUST NO. 3 OF 3(8211-8508)

MODEL F | FRONT STEERING GEAR LINK 44101D - WASHER, PLATE(FOR STEERING WORM) 44101E - RING, O(FOR STEERING WORM) 44101E - RING, O(FOR STEERING WORM) 44101H - BEARING, THRUST NEEDLE ROLLER(FOR STEERING WORM) 44101J - RING(FOR STEERING WORM) 44101J - RING(FOR STEERING WORM) 44105 - HOUSING SUB-ASSY, VALVE 44105A - RING, O(FOR VALVE HOUSING) 44105B - RING(FOR VALVE HOUSING) 44105C - SEAT, UNION(FOR VALVE BODY HOUSING) 44105C - SEAT, UNION(FOR VALVE BODY HOUSING) 44107 - HOUSING SUB-ASSY, POWER STEERING GEAR 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) 44107C - RING(FOR POWER STEERING GEAR HOUSING) 44107C - RING(FOR POWER STEERING GEAR HOUSING) 44107D - RING, HOLE SNAP(FOR POWER STEERING GEAR HOUSING) 44107E - SEAL, OIL(FOR POWER STEERING GEAR HOUSING) 44108 - COVER SUB-ASSY, SIDE 44108A - RING, O(FOR SIDE COVER) 44111 - SHAFT, CROSS 44114A - RING(FOR POWER PISTON NUT) 44114B - RING, O(FOR POWER PISTON NUT) 44114C - BALL(FOR POWER PISTON NUT) 44115 - GUIDE, BALL 44116 - CLAMP, BALL GUIDE 44141 - PLUG, ADJUSTER 44141A - RING, O(FOR ADJUSTER PLUG) 44141B - SEAL, OIL(FOR ADJUSTER PLUG) 44141C - BEARING(FOR ADJUSTER PLUG) 44142 - NUT, LOCK 44142A - NUT, LOCK, NO.1 44210 - VALVE ASSY, POWER STEERING CONTROL 44257 - SCREW, CROSS SHAFT ADJUSTING 44257A - WASHER, SEAL(FOR CROSS SHAFT ADJUSTING SCREW) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
