VENTURI

(8411-8506)2H

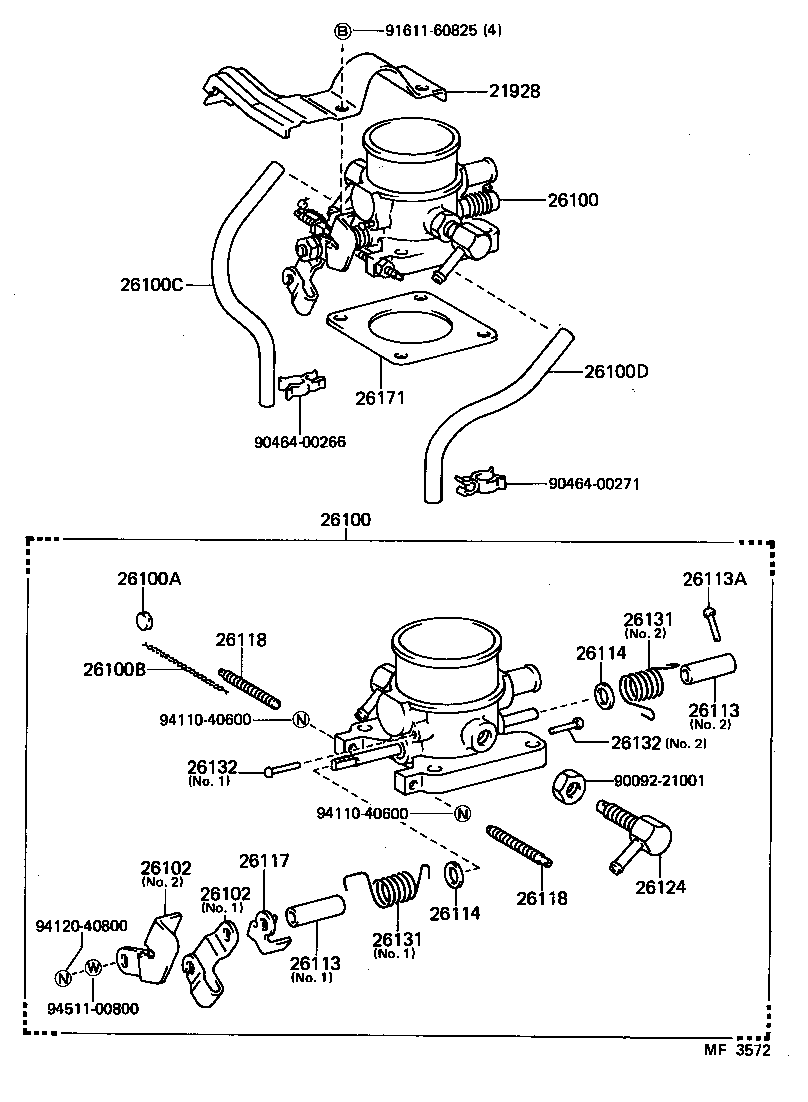

LAND CRUISER 40 | VENTURI 21928 - SUPPORT, THROTTLE WIRE 26100 - VENTURI ASSY 26100 - VENTURI ASSY 26100A - SEAL, LEAD 26100B - WIRE, SEAL 26100C - HOSE, VACCUM, NO.1(VENTURI TO GOVERNOR) 26100D - HOSE, VACCUM, NO.2(VENTURI TO GOVERNOR) 26102 - LEVER SUB-ASSY, THROTTLE SHAFT ADJUSTING 26102 - LEVER SUB-ASSY, THROTTLE SHAFT ADJUSTING 26113 - COLLAR, THROTTLE VALVE SHAFT 26113 - COLLAR, THROTTLE VALVE SHAFT 26113A - PIN, THROTTLE VALVE SHAFT 26114 - WASHER, THROTTLE VALVE SHAFT ADJUSTING 26114 - WASHER, THROTTLE VALVE SHAFT ADJUSTING 26117 - PLATE, THROTTLE VALVE SHAFT STOP 26118 - SCREW, STOP PLATE ADJUSTING 26118 - SCREW, STOP PLATE ADJUSTING 26124 - CONNECTOR, VENTURI PIPE 26131 - SPRING, RETURN 26131 - SPRING, RETURN 26132 - PIN 26132 - PIN 26171 - GASKET, VENTURI ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
