TOYOTA VAN YR29LV-MRBEA / ELECTRICAL / HEATING AIR CONDITIONING CONTROL AIR DUCT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

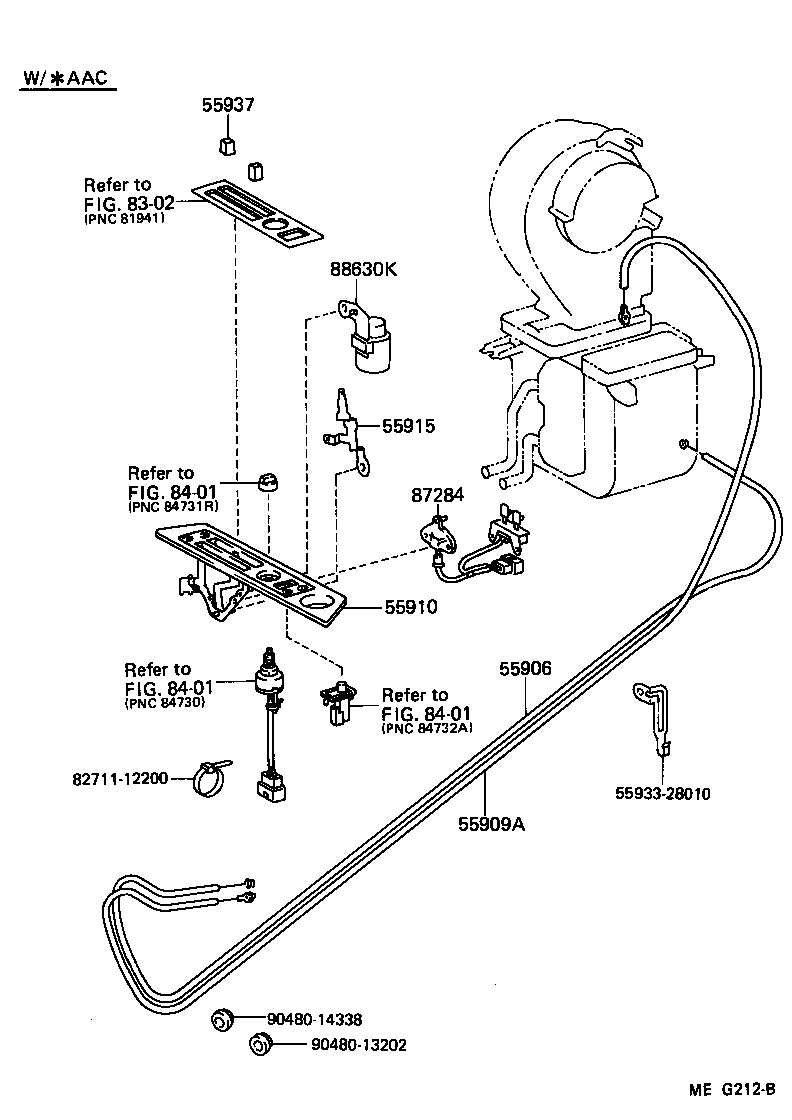

HEATING AIR CONDITIONING CONTROL AIR DUCT

ILLUST NO. 2 OF 6(8508-8608)

 VAN |  HEATING AIR CONDITIONING CONTROL AIR DUCT 55906 - CABLE SUB-ASSY, HEATER CONTROL 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR 55915 - LEVER, COOLER CONTROL  ** Std Part 55937 - KNOB, HEATER CONTROL LEVER  ** Std Part ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 87284 - RESISTOR SUB-ASSY, VARIABLE 88630K - RELAY ASSY  ** Std Part  ** Std Part
