TOYOTA VAN YR29LV-MRBEA / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

HEATING AIR CONDITIONING COOLER PIPING

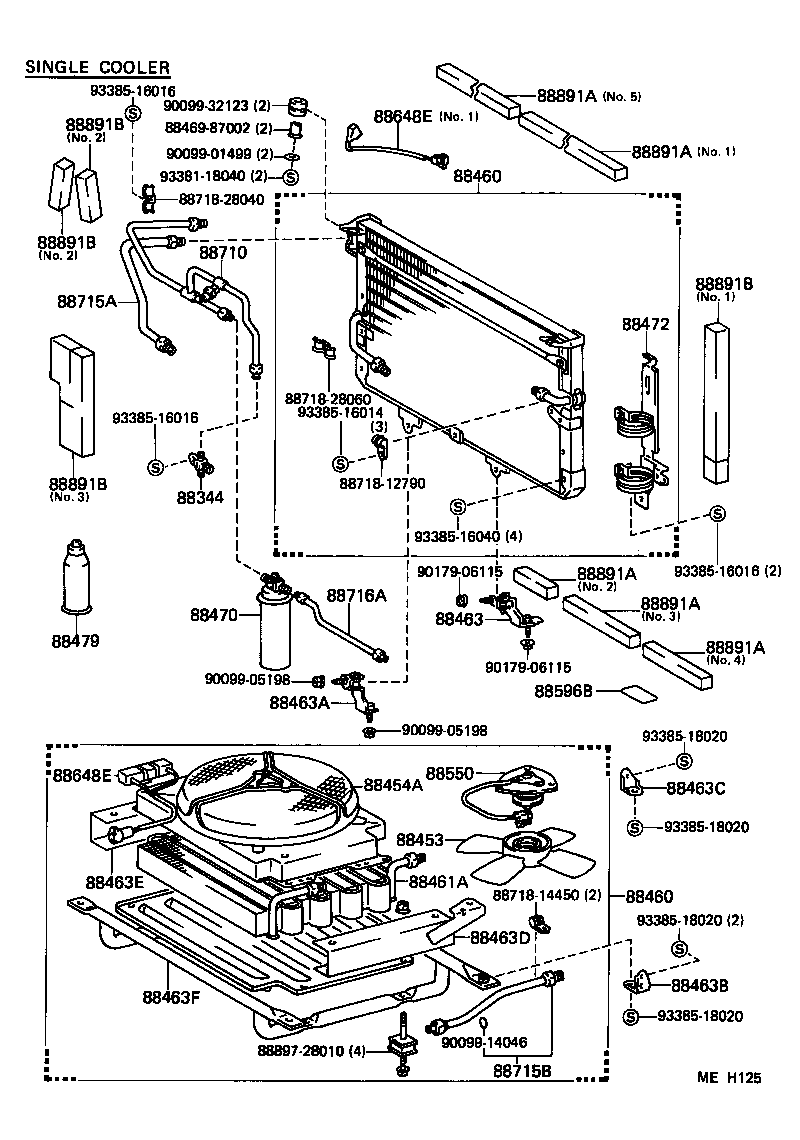

ILLUST NO. 1 OF 3(8508- )YR2#

VAN | HEATING AIR CONDITIONING COOLER PIPING 88344 - GLASS SUB-ASSY, SIGHT 88453 - FAN, COOLING (FOR CONDENSER) 88454A - SHROUD, FAN 88460 - CONDENSER ASSY, COOLER 88460 - CONDENSER ASSY, COOLER 88461A - CORE, COOLER CONDENSER 88463 - BRACKET, COOLER CONDENSER, NO.1 88463A - BRACKET, COOLER CONDENSER, NO.2 88463B - BRACKET, COOLER CONDENSER, NO.3 88463C - BRACKET, COOLER CONDENSER, NO.4 88463D - BRACKET, COOLER CONDENSER, NO.5 88463E - BRACKET, COOLER CONDENSER, NO.6 88463F - BRACKET, COOLER CONDENSER, NO.7 ** Std Part 88470 - RECEIVER & DRYER ASSY, COOLER 88472 - BRACKET, RECEIVER TANK, NO.1 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) 88596B - PLATE, CAUTION, NO.1 88648E - WIRING, COOLER 88648E - WIRING, COOLER 88710 - TUBE ASSY, AIRCONDITIONER 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A 88715B - PIPE, COOLER REFRIGERANT DISCHARGE, B 88716A - PIPE, COOLER REFRIGERANT LIQUID, A ** Std Part ** Std Part ** Std Part ** Std Part 88891A - PACKING A (FOR COOLER) 88891A - PACKING A (FOR COOLER) 88891A - PACKING A (FOR COOLER) 88891A - PACKING A (FOR COOLER) 88891A - PACKING A (FOR COOLER) 88891B - PACKING B (FOR COOLER) 88891B - PACKING B (FOR COOLER) 88891B - PACKING B (FOR COOLER) 88891B - PACKING B (FOR COOLER) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
