TOYOTA LAND CRUISER 70 BJ70LV-MNW / POWERTRAIN-CHASSIS / BRAKE BOOSTER VACUUM TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

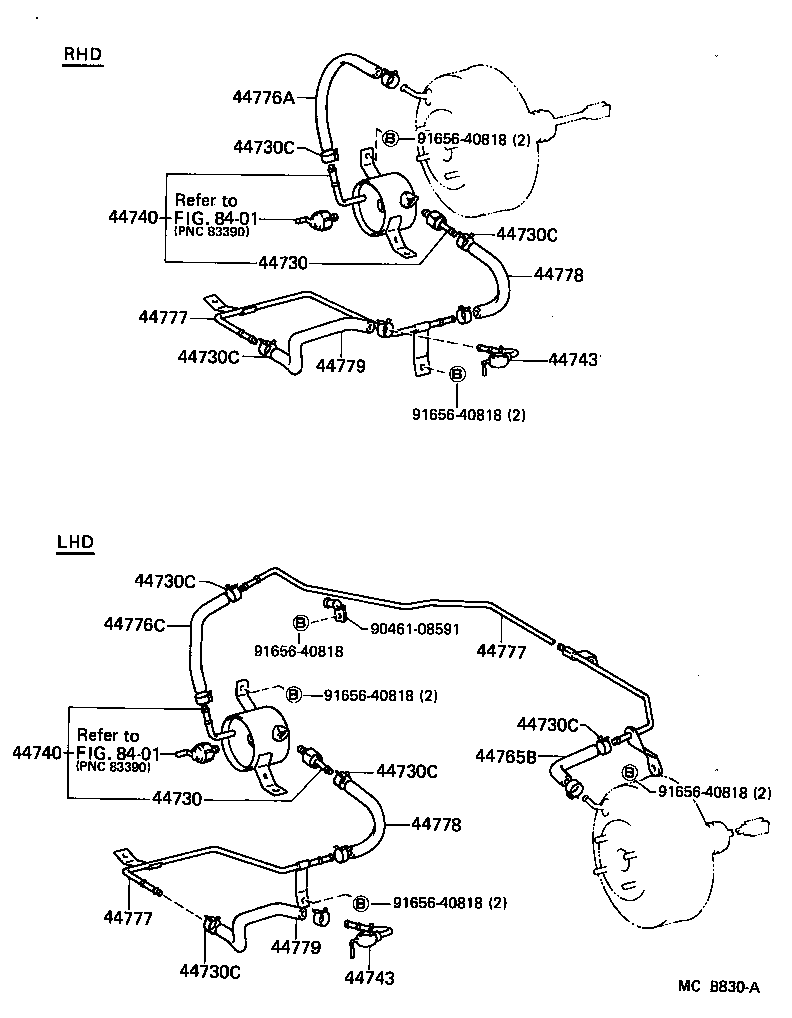

BRAKE BOOSTER VACUUM TUBE

ILLUST NO. 2 OF 2(8411-8808)BJ7# ; (8808- )BJ71

 LAND CRUISER 70 |  BRAKE BOOSTER VACUUM TUBE 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) 44730C - CLIP(FOR VACUUM HOSE) 44730C - CLIP(FOR VACUUM HOSE) 44730C - CLIP(FOR VACUUM HOSE) 44730C - CLIP(FOR VACUUM HOSE) 44730C - CLIP(FOR VACUUM HOSE) 44730C - CLIP(FOR VACUUM HOSE) 44730C - CLIP(FOR VACUUM HOSE) 44740 - RESERVOIR ASSY, VACUUM 44740 - RESERVOIR ASSY, VACUUM 44743 - UNION(FOR VACUUM PUMP) 44743 - UNION(FOR VACUUM PUMP) 44765B - HOSE, CONNECTOR TO BRAKE BOOSTER 44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER 44776C - HOSE, VACUUM RESERVOIR TO CONNECTOR 44777 - CONNECTOR, VACUUM HOSE, NO.1 44777 - CONNECTOR, VACUUM HOSE, NO.1 44777 - CONNECTOR, VACUUM HOSE, NO.1 44778 - HOSE, CONNECTOR TO CHECK VALVE 44778 - HOSE, CONNECTOR TO CHECK VALVE 44779 - HOSE, UNION TO CONNECTOR 44779 - HOSE, UNION TO CONNECTOR ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
