TOYOTA CRESSIDA MX81L-AEMNEV / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

FUEL TANK TUBE

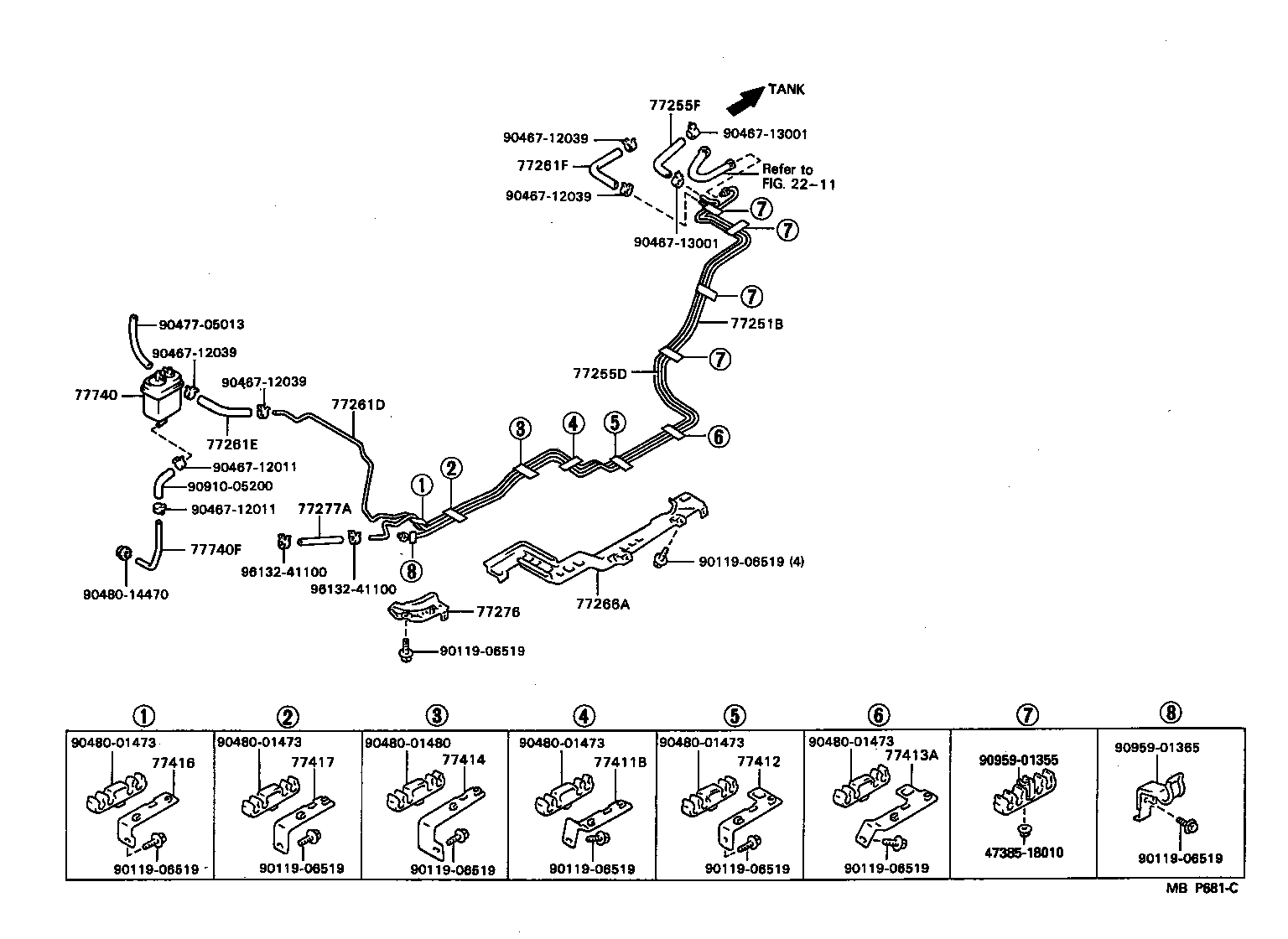

ILLUST NO. 2 OF 2(8808- )MX81..V

CRESSIDA | FUEL TANK TUBE ** Refer Fig ** Std Part 77251B - TUBE, FUEL MAIN 77255D - TUBE, FUEL RETURN 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) 77261D - TUBE, FUEL TANK TO CANISTER 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) 77266A - PROTECTOR, FUEL TUBE, NO.1 77276 - PROTECTOR, FUEL HOSE 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 77412 - SUPPORT, FUEL TUBE GROMMET, NO.2 77413A - SUPPORT, FUEL TUBE GROMMET, NO.3 77414 - SUPPORT, FUEL TUBE GROMMET, NO.4 77416 - SUPPORT, FUEL TUBE GROMMET, NO.6 77417 - SUPPORT, FUEL TUBE GROMMET, NO.7 77740 - CANISTER ASSY, CHARCOAL 77740F - TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
