TOYOTA DYNA BU85L-MDDHTW3 / POWERTRAIN-CHASSIS / FRONT STEERING GEAR LINK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

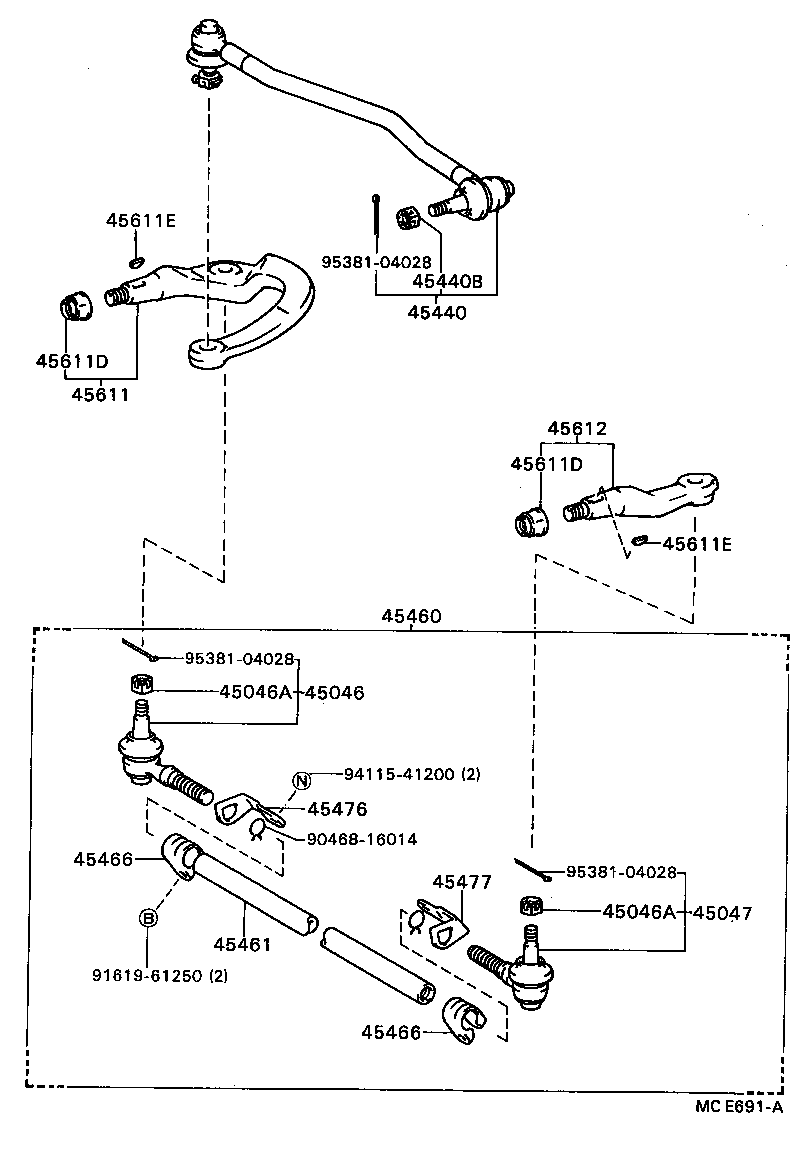

FRONT STEERING GEAR LINK

ILLUST NO. 3 OF 3(8708- )

DYNA | FRONT STEERING GEAR LINK 45046 - END SUB-ASSY, TIE ROD, RH 45046A - NUT, CASTLE(FOR TIE ROD END) 45046A - NUT, CASTLE(FOR TIE ROD END) 45047 - END SUB-ASSY, TIE ROD, LH 45440 - LINK ASSY, STEERING DRAG 45440B - NUT, CASTLE(FOR STEERING DRAG LINK) 45460 - ROD ASSY, TIE, RH 45461 - ROD, STEERING TIE 45466 - CLAMP, TIE ROD END 45466 - CLAMP, TIE ROD END 45476 - PLATE, TURNING STOPPER 45477 - PLATE, STOPPER 45611 - ARM, STEERING KNUCKLE, RH 45611D - NUT(FOR STEERING KNUCKLE ARM) 45611D - NUT(FOR STEERING KNUCKLE ARM) 45611E - KEY, WOODRUFF(FOR STEERING IDLER ARM) 45611E - KEY, WOODRUFF(FOR STEERING IDLER ARM) 45612 - ARM, STEERING KNUCKLE, LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
