TOYOTA HIACE VAN COMUTER YH61LB-QRW / ELECTRICAL / HEATING AIR CONDITIONING WATER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

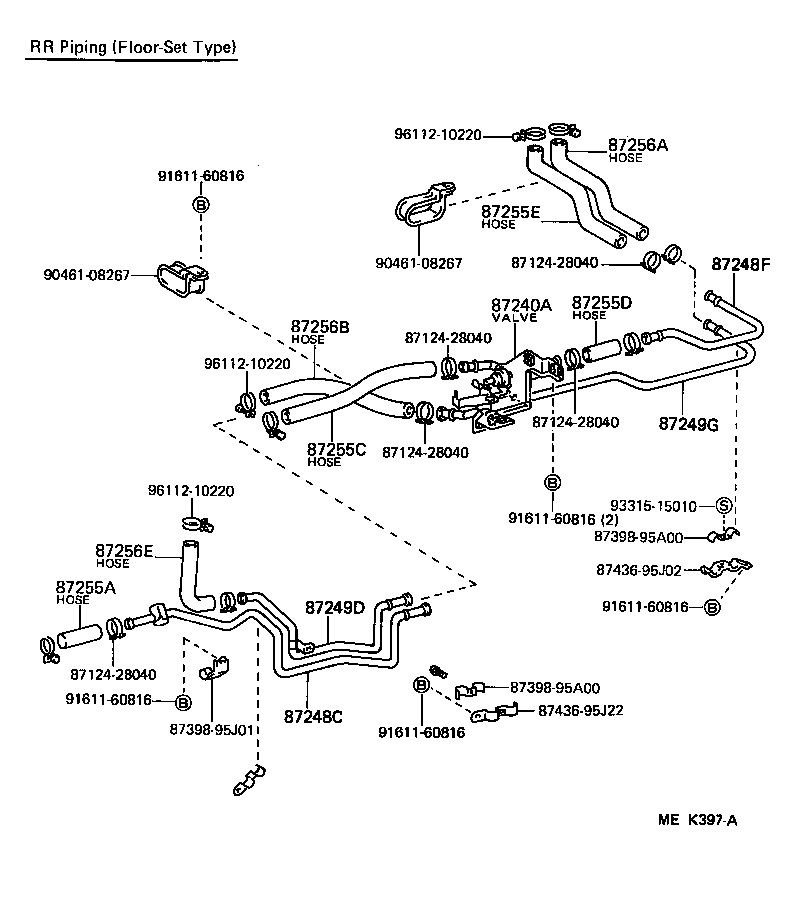

HEATING AIR CONDITIONING WATER PIPING

ILLUST NO. 2 OF 2(8708- )15S

HIACE VAN COMUTER | HEATING AIR CONDITIONING WATER PIPING ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part 87240A - VALVE ASSY, REAR HEATER WATER 87248C - PIPE, HEATER WATER INLET, C 87248F - PIPE, HEATER WATER INLET, F 87249D - PIPE, HEATER WATER OUTLET, D 87249G - PIPE, HEATER WATER OUTLET, G 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) 87255C - HOSE, REAR HEATER WATER INLET, C 87255D - HOSE, REAR HEATER WATER INLET, D 87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT) 87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) 87256B - HOSE, REAR HEATER WATER OUTLET, B 87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
