TOYOTA MR2 AW11R-WCMQFQ / BODY / PACKAGE TRAY PANEL LUGGAGE COMPARTMENT MAT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

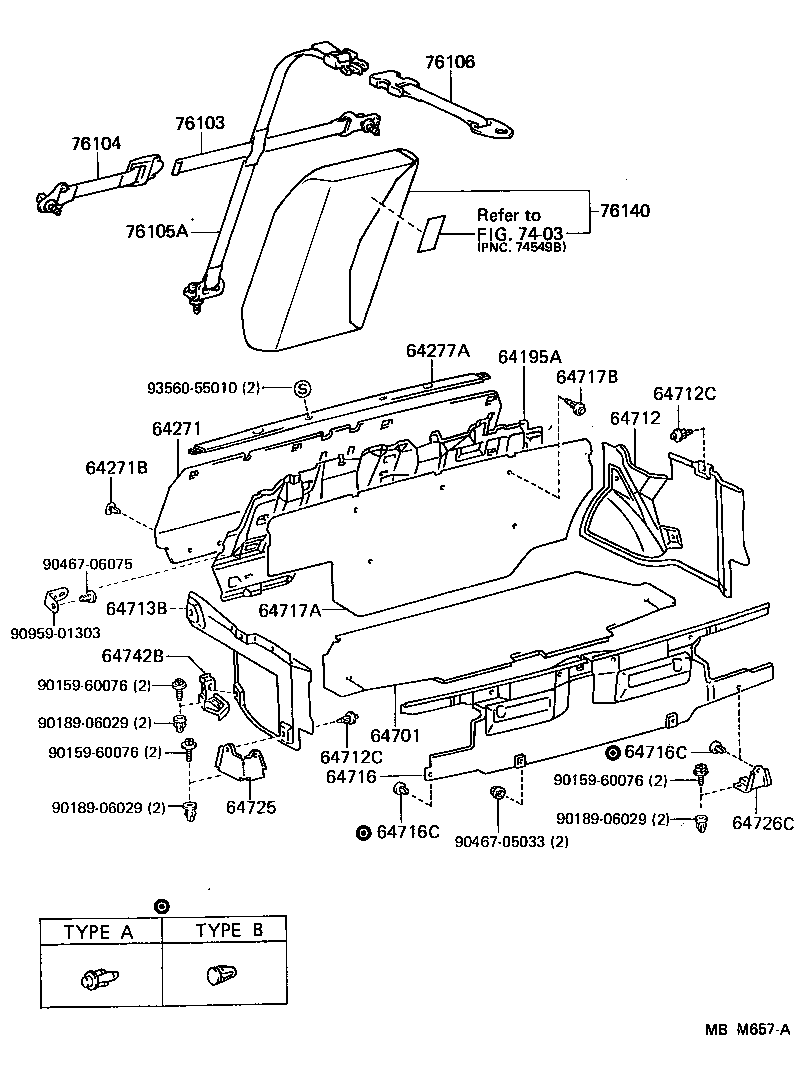

PACKAGE TRAY PANEL LUGGAGE COMPARTMENT MAT

ILLUST NO. 2 OF 2(8708- )ARL

MR2 | PACKAGE TRAY PANEL LUGGAGE COMPARTMENT MAT 64195A - INSULATOR, ROOM PARTITION PANEL 64271 - BOARD, ROOM PARTITION, NO.1 64271B - CLIP(FOR ROOM PARTITION BOARD) 64277A - MOULDING, ROOM PARTITION TRIM 64701 - MAT SUB-ASSY, LUGGAGE COMPARTMENT 64712 - COVER, LUGGAGE COMPARTMENT TRIM, RH 64712C - CLIP(FOR LUGGAGE COMPARTMENT TRIM COVER) 64712C - CLIP(FOR LUGGAGE COMPARTMENT TRIM COVER) 64713B - COVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH 64716 - COVER, LUGGAGE COMPARTMENT, REAR CENTER 64716C - CLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER) 64716C - CLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER) 64717A - COVER, LUGGAGE COMPARTMENT TRIM, FRONT 64717B - CLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER) 64725 - RETAINER, LUGGAGE COMPARTMENT COVER, NO.1 64726C - RETAINER, DECK TRIM REAR COVER 64742B - BASE, DECK TRIM SIDE COVER, LH ** Refer Fig 76103 - BELT SUB-ASSY, ROOF GLASS BAG, INNER 76104 - BELT SUB-ASSY, ROOF GLASS BAG, OUTER 76105A - BELT SUB-ASSY, ROOF GLASS BAG, LOWER 76106 - BELT SUB-ASSY, GLASS ROOF BAG, UPPER 76140 - BAG ASSY, ROOF GLASS, LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
