TOYOTA TERCEL EL31L-ZDHDEA / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

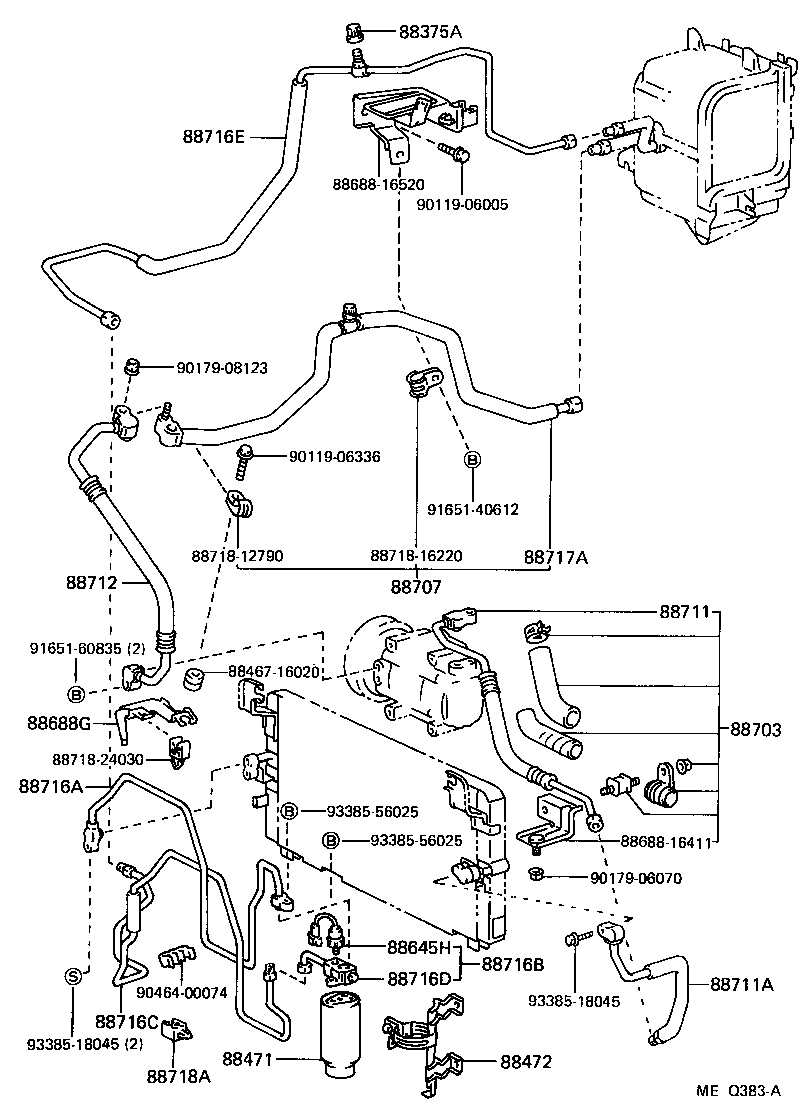

HEATING AIR CONDITIONING COOLER PIPING

ILLUST NO. 2 OF 2(8908- )EFI

TERCEL | HEATING AIR CONDITIONING COOLER PIPING 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) ** Std Part 88471 - TANK, RECEIVER AIR CONDITIONER 88472 - BRACKET, RECEIVER TANK, NO.1 88645H - SWITCH, PRESSURE NO.1 ** Std Part ** Std Part 88688G - BRACKET, COOLER REFRIGERANT PIPE 88703 - HOSE SUB-ASSY, DISCHARGE 88707 - PIPE SUB-ASSY, SUCTION 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 88711A - HOSE, COOLER REFRIGERANT DISCHARGE, NO.2 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 88716A - PIPE, COOLER REFRIGERANT LIQUID, A 88716B - PIPE, COOLER REFRIGERANT LIQUID, B 88716C - PIPE, COOLER REFRIGERANT LIQUID, C 88716D - PIPE, COOLER REFRIGERANT LIQUID, D 88716E - PIPE, COOLER REFRIGERANT LIQUID, E 88717A - PIPE, COOLER REFRIGERANT SUCTION, A ** Std Part ** Std Part ** Std Part 88718A - CLAMP(FOR COOLER REFRIGERANT PIPE), NO.1 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
