TOYOTA CAMRY CV20R-UEMNXW / TOOL-ENGINE-FUEL / MANIFOLD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

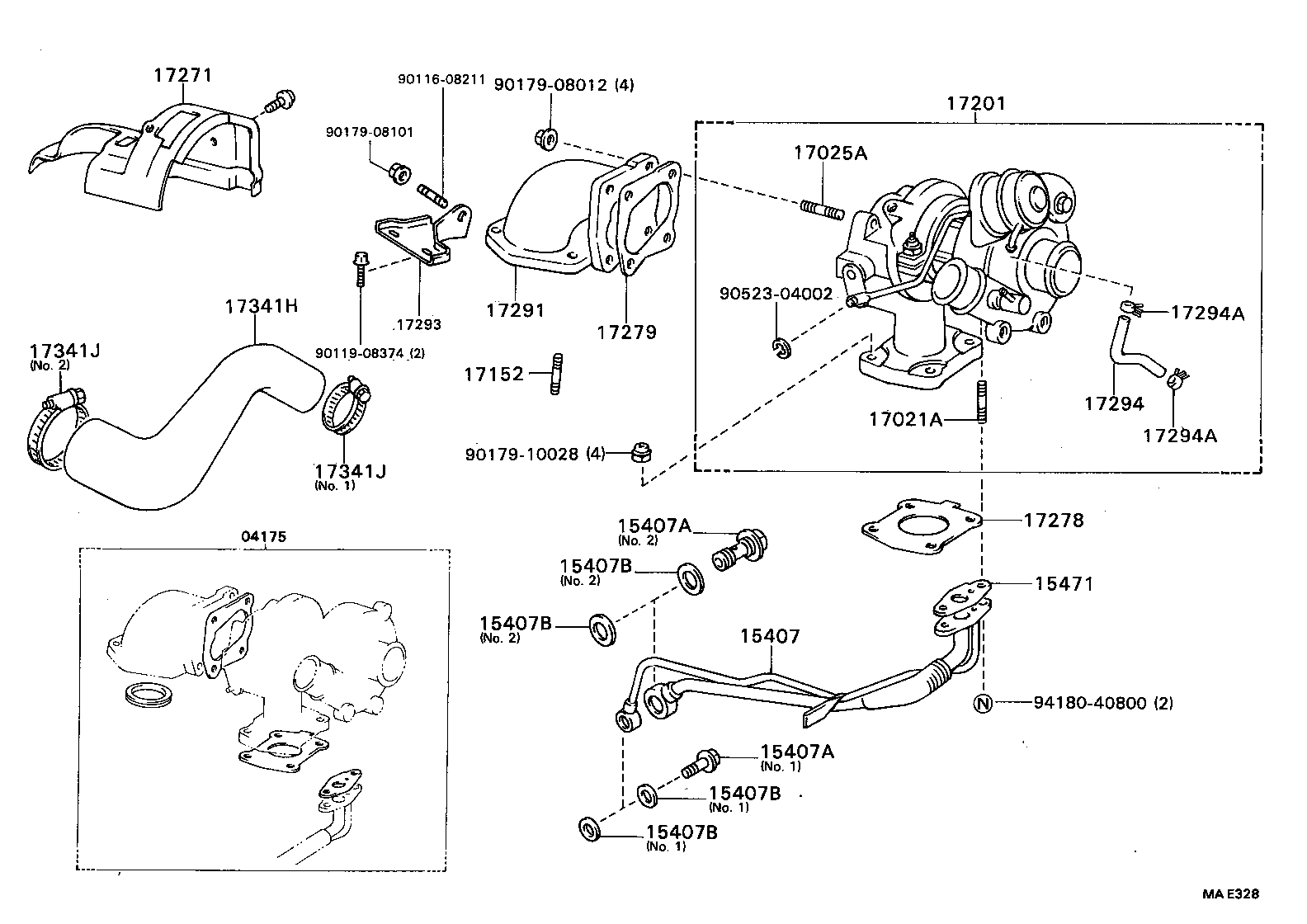

MANIFOLD

ILLUST NO. 2 OF 3(8808- )2CT

CAMRY | MANIFOLD 04175 - GASKET KIT, TURBOCHARGER 15407 - PIPE SUB-ASSY, TURBO OIL INLET 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) 15407B - GASKET(FOR TURBO OIL INLET PIPE) 15407B - GASKET(FOR TURBO OIL INLET PIPE) 15407B - GASKET(FOR TURBO OIL INLET PIPE) 15407B - GASKET(FOR TURBO OIL INLET PIPE) 15471 - GASKET, TURBO OIL INLET 17021A - BOLT, STUD(FOR BEARING HOUSING) 17025A - BOLT, STUD(FOR TURBINE HOUSING) 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) 17201 - TURBOCHARGER SUB-ASSY 17271 - INSULATOR, TURBO, NO.1 17278 - GASKET, TURBO TO EXHAUST MANIFOLD 17279 - GASKET, TURBINE OUTLET ELBOW 17291 - ELBOW, TURBINE OUTLET 17293 - STAY, TURBOCHARGER 17294 - HOSE, ACTUATOR 17294A - CLIP(FOR ACTUATOR HOSE) 17294A - CLIP(FOR ACTUATOR HOSE) 17341H - HOSE, AIR 17341J - CLAMP, HOSE 17341J - CLAMP, HOSE ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
