TOYOTA CARINA 2 AT171R-AEPNUW / POWERTRAIN-CHASSIS / VALVE BODY OIL STRAINER ATM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

VALVE BODY OIL STRAINER ATM

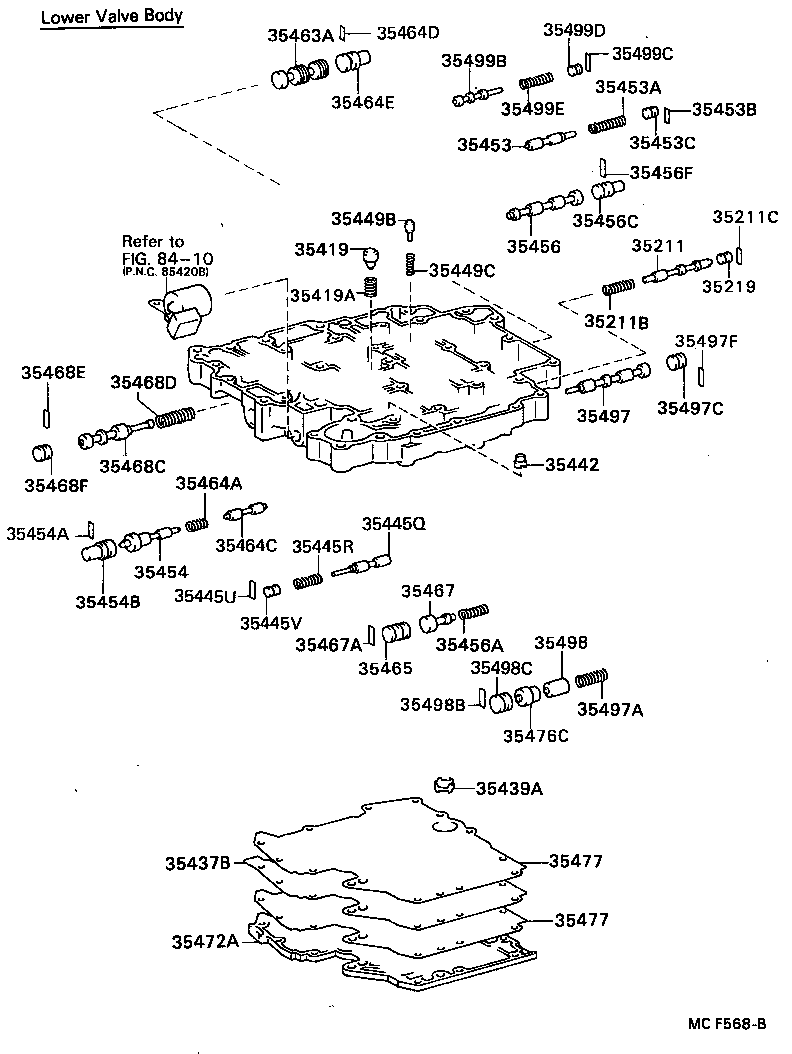

A240L ILLUST NO. 3 OF 5(8712- )AT171..4FC

 CARINA 2 |  VALVE BODY OIL STRAINER ATM 35211 - VALVE, LOCK UP SIGNAL 35211B - SPRING, COMPRESSION (FOR LOCK UP SIGNAL VALVE) 35211C - KEY, STRAIGHT (FOR LOCK UP SIGNAL VALVE) 35219 - PLUG, LOCK UP SIGNAL VALVE 35419 - VALVE, CHECK, NO.1 35419A - SPRING, COMPRESSION (FOR CHECK VALVE) 35437B - PLATE, VALVE BODY COVER 35439A - STRAINER, LINE PRESSURE OIL 35442 - STRAINER, THROTTLE MODULATOR OIL 35445Q - VALVE, LOW COAST MODULATOR 35445R - SPRING, COMPRESSION (FOR LOW COAST MODULATOR VALVE) 35445U - KEY, STRAIGHT (FOR LOW COAST MODULATOR VALVE) 35445V - PLUG (FOR LOW COAST MODULATOR VALVE) 35449B - VALVE, PRESSURE RELIEF 35449C - SPRING, COMPRESSION (FOR VALVE PRESSURE RELIEF) 35453 - VALVE, DETENT REGULATOR 35453A - SPRING, COMPRESSION (FOR DETENT REGULATOR VALVE) 35453B - KEY, STRAIGHT (FOR DETENT REGULATOR VALVE) 35453C - PLUG (FOR DETENT REGULATOR VALVE) 35454 - VALVE, LOW COAST SHIFT 35454A - KEY, STRAIGHT (FOR LOW COAST SHIFT VALVE) 35454B - PLUG (FOR LOW COAST SHIFT VALVE) 35456 - VALVE, 2-3 SHIFT 35456A - SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE) 35456C - PLUG (FOR 2-3 SHIFT VALVE) 35456F - KEY, STRAIGHT (FOR 2-3 SHIFT VALVE) 35463A - VALVE, 1-2 SHIFT, LOWER 35464A - SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE) 35464C - VALVE, 1-2 SHIFT, UPPER 35464D - KEY, STRAIGHT (FOR 1-2 SHIFT VALVE) 35464E - PLUG (FOR 1-2 SHIFT VALVE) 35465 - PLUG, INTERMEDIATE SHIFT VALVE 35467 - VALVE, INTERMEDIATE SHIFT 35467A - KEY, STRAIGHT (FOR INTERMEDIATE SHIFT VALVE) 35468C - VALVE, SECONDARY REGULATOR 35468D - SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE) 35468E - KEY, STRAIGHT (FOR SECONDARY REGULATOR VALVE) 35468F - PLUG (FOR SECONDARY REGULATOR VALVE) 35472A - COVER, LOWER VALVE BODY 35476C - VALVE, 3RD COAST 35477 - GASKET, VALVE BODY COVER 35477 - GASKET, VALVE BODY COVER 35497 - VALVE, 3-4 SHIFT 35497A - SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE) 35497C - PLUG (FOR 3-4 SHIFT VALVE) 35497F - KEY, STRAIGHT (FOR 3-4 SHIFT VALVE) 35498 - VALVE, 3-4 COAST SHIFT 35498B - KEY, STRAIGHT (FOR 3-4 COAST SHIFT VALVE) 35498C - PLUG (FOR 3-4 COAST SHIFT VALVE) 35499B - VALVE, OVERDRIVE SEQUENCE 35499C - KEY, STRAIGHT (FOR OVERDRIVE SEQUENCE VALVE) 35499D - PLUG (FOR OVERDRIVE SEQUENCE VALVE) 35499E - SPRING, COMPRESSION (FOR OVERDRIVE SEQUENCE VALVE) ** Refer Fig
