TOYOTA COASTER HB31R-MRX1 / POWERTRAIN-CHASSIS / BRAKE BOOSTER VACUUM TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

BRAKE BOOSTER VACUUM TUBE

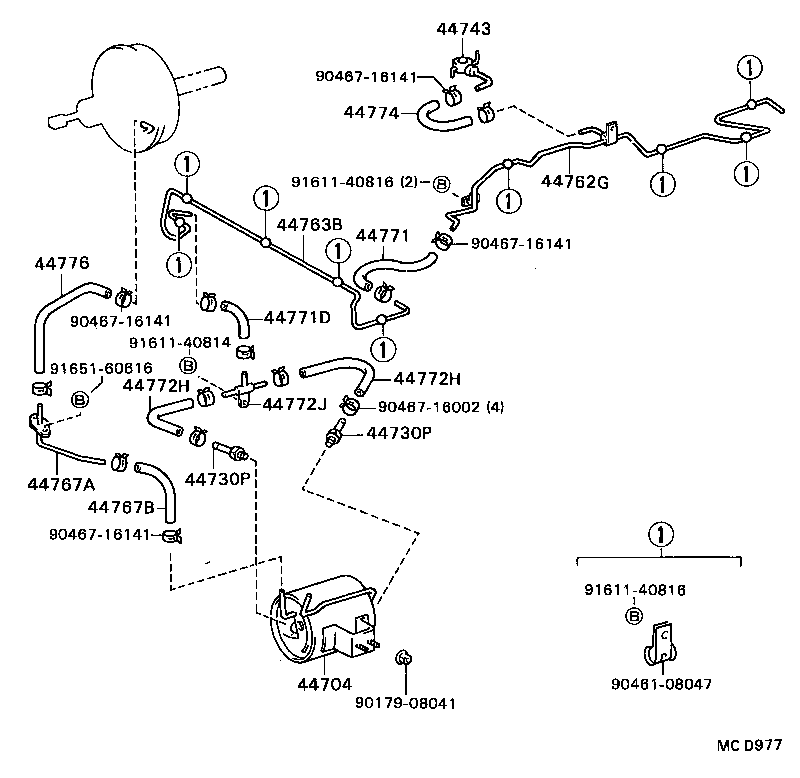

ILLUST NO. 2 OF 2(8610-9001)HB31

COASTER | BRAKE BOOSTER VACUUM TUBE 44704 - RESERVOIR SUB-ASSY, VACUUM 44730P - VALVE ASSY, VACUUM CHECK, NO.1 44730P - VALVE ASSY, VACUUM CHECK, NO.1 44743 - UNION(FOR VACUUM PUMP) 44762G - TUBE, VACUUM CHECK VALVE TO CONNECTOR 44763B - TUBE, TUBE CONNECTOR TO TUBE CONNECTOR 44767A - TUBE, VACUUM RESERVOIR TO BRAKE BOOSTER 44767B - HOSE(FOR VACUUM RESERVOIR TO BRAKE BOOSTER TUBE) 44771 - HOSE, VACUUM TUBE CONNECTOR 44771D - HOSE, VACUUM TUBE CONNECTOR 44772H - HOSE, CHECK VALVE TO 3 WAY 44772H - HOSE, CHECK VALVE TO 3 WAY 44772J - WAY, 3(FOR VACUUM CHECK VALVE TO 3 WAY HOSE) 44774 - HOSE, UNION TO CONNECTOR TUBE 44776 - HOSE, BRAKE BOOSTER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
