TOYOTA COASTER HB31R-MRX1 / TOOL-ENGINE-FUEL / AIR CLEANER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

AIR CLEANER

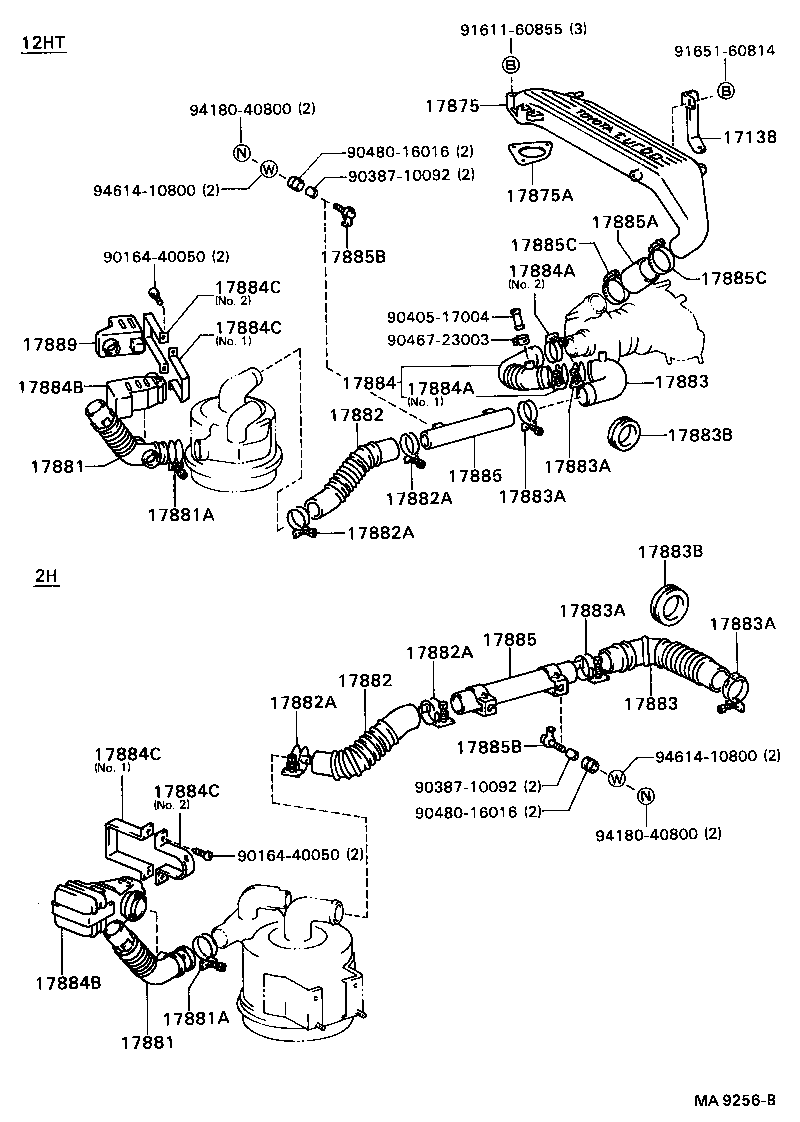

ILLUST NO. 2 OF 2(8610-9001)12HT,2H

 COASTER |  AIR CLEANER 17138 - STAY, INTAKE PIPE OR HOSE 17875 - PIPE, INTAKE AIR CONNECTOR 17875A - GASKET, INTAKE PIPE 17881 - HOSE, AIR CLEANER, NO.1 17881 - HOSE, AIR CLEANER, NO.1 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17882 - HOSE, AIR CLEANER, NO.2 17882 - HOSE, AIR CLEANER, NO.2 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) 17883 - HOSE, AIR CLEANER, NO.3 17883 - HOSE, AIR CLEANER, NO.3 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) 17883B - GROMMET, AIR CLEANER HOSE 17883B - GROMMET, AIR CLEANER HOSE 17884 - HOSE, AIR CLEANER, NO.4 17884A - CLAMP(FOR AIR CLEANER HOSE, NO.4) 17884A - CLAMP(FOR AIR CLEANER HOSE, NO.4) 17884B - BOX, AIR CLEANER, NO.1 17884B - BOX, AIR CLEANER, NO.1 17884C - BAND, AIR CLEANER BOX 17884C - BAND, AIR CLEANER BOX 17884C - BAND, AIR CLEANER BOX 17884C - BAND, AIR CLEANER BOX 17885 - PIPE, AIR CLEANER 17885 - PIPE, AIR CLEANER 17885A - HOSE, AIR CLEANER, NO.5 17885B - PLATE, PIPE SUPPORT 17885B - PLATE, PIPE SUPPORT 17885C - CLAMP(FOR AIR CLEANER HOSE, NO.5) 17885C - CLAMP(FOR AIR CLEANER HOSE, NO.5) 17889 - BOX, AIR CLEANER HOSE, NO.2  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
