TOYOTA COASTER HB31R-MRX1 / TOOL-ENGINE-FUEL / MECHANICAL GOVERNOR

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

MECHANICAL GOVERNOR

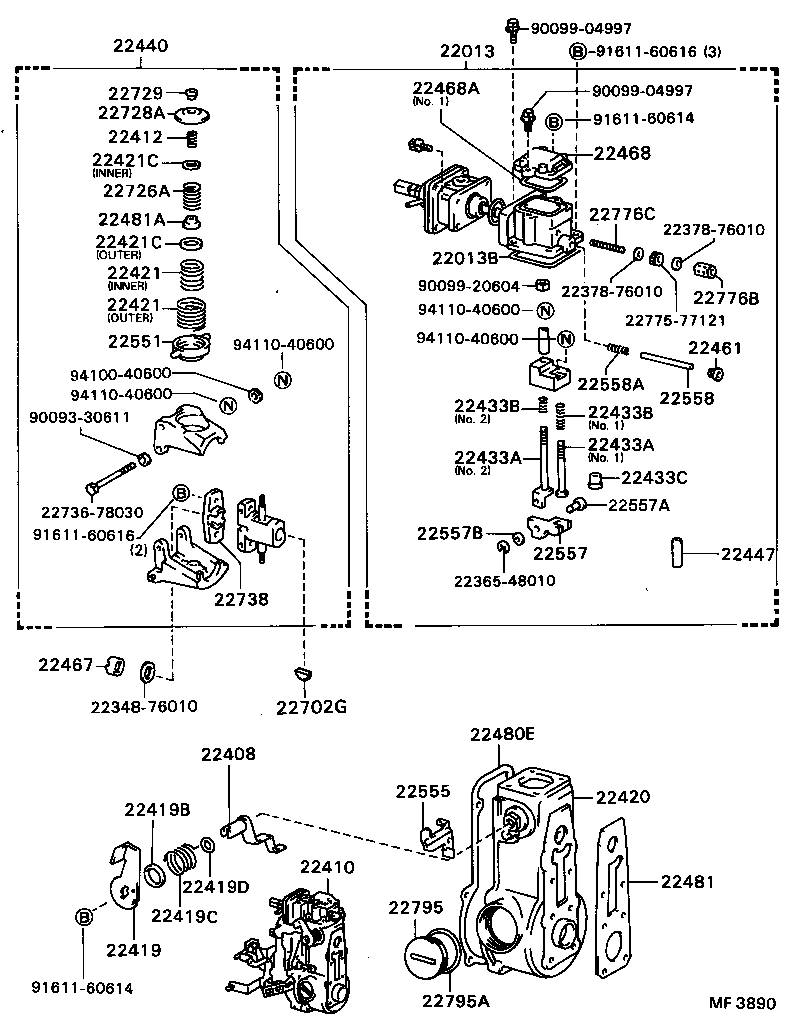

ILLUST NO. 1 OF 2(8610-9001)12HT

 COASTER |  MECHANICAL GOVERNOR 22013 - HOUSING SUB-ASSY, FULLROAD STOPPER 22013B - RING, O(FOR FULLROAD STOPPER HOUSING)  ** Std Part  ** Std Part  ** Std Part  ** Std Part 22408 - ARM, STOPPER 22410 - GOVERNOR ASSY, INJECTION PUMP MECHANICAL 22412 - SPRING, MECHANICAL GOVERNOR 22419 - LEVER, STOP 22419B - WASHER, PLATE(FOR STOPPER LEVER) 22419C - SPRING, RETURN(FOR STOPPER LEVER) 22419D - RING, O(FOR STOPPER LEVER) 22420 - HOUSING SUB-ASSY, MECHANICAL GOVERNOR 22421 - SPRING, IDLING 22421 - SPRING, IDLING 22421C - WASHER, IDLING SPRING 22421C - WASHER, IDLING SPRING 22433A - SCREW, ADAPTER(FOR SLIDING BLOCK) 22433A - SCREW, ADAPTER(FOR SLIDING BLOCK) 22433B - SPRING(FOR ADAPTER SCREW) 22433B - SPRING(FOR ADAPTER SCREW) 22433C - BUSH(FOR ADAPTER SCREW) 22440 - FLYWEIGHT SUB-ASSY 22447 - COLLAR 22461 - PLUG, SCREW 22467 - NUT, ROUND 22468 - COVER, PLATE 22468A - O, RING 22480E - GASKET, GOVERNOR COVER 22481 - GASKET 22481A - SEAT, SPRING, INNER 22551 - SEAT, SPRING(FOR FLYWEIGHT) 22555 - BRACKET, STOPPER 22557 - CAM, FULL STOP 22557A - PIN, CONNECTING(FOR FULL STOP CAM) 22557B - WASHER, PLATE(FOR CONNECTING PIN) 22558 - SHAFT, SLIDING BLOCK 22558A - SPRING(FOR SLIDING BLOCK SHAFT) 22702G - KEY, WOODRUFF(FOR FROATING LEVER) 22726A - SPRING, SPEED CONTROL 22728A - GUIDE, SPRING 22729 - NUT, ADJUSTING(FOR FLYWEIGHT)  ** Std Part 22738 - BUSHING, GUIDE(FOR FLYWEIGHT)  ** Std Part 22776B - NUT, CAP(FOR SCREW STOPPER) 22776C - SCREW, STOPPER 22795 - PLUG, SCREW 22795A - WASHER, SCREW PLUG  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
