TOYOTA COASTER HB31R-MRX1 / TOOL-ENGINE-FUEL / MECHANICAL GOVERNOR

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

MECHANICAL GOVERNOR

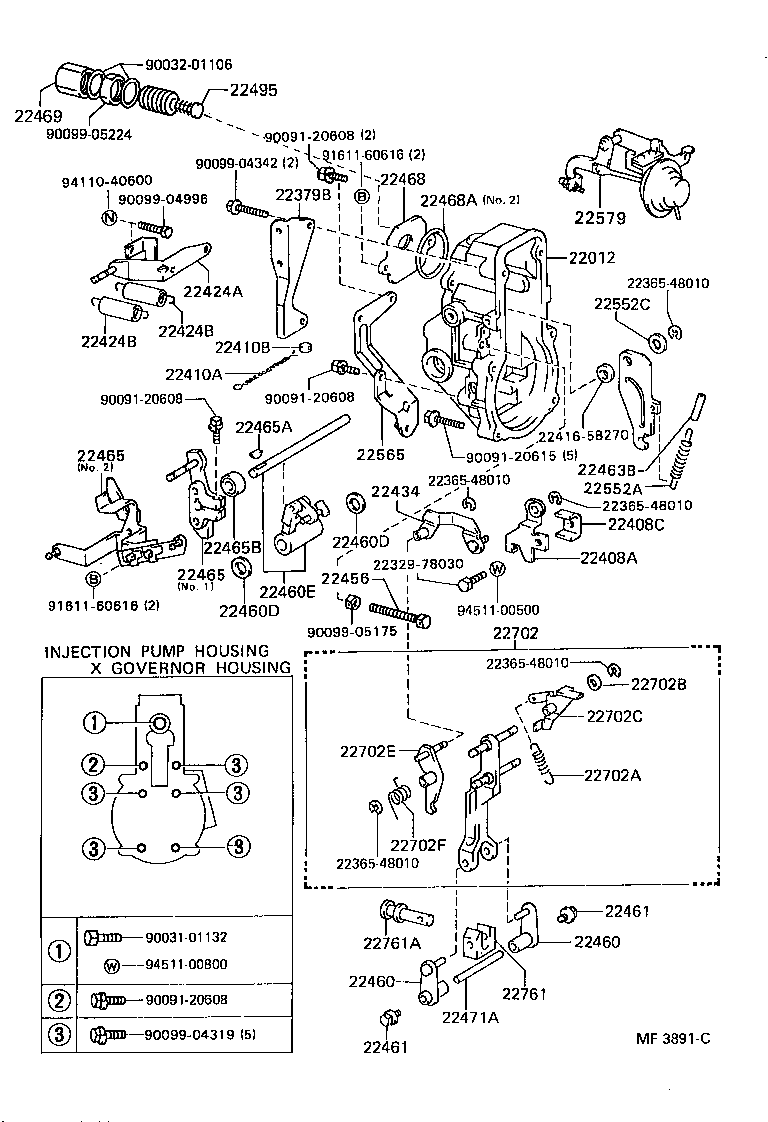

ILLUST NO. 2 OF 2(8610-9001)12HT

 COASTER |  MECHANICAL GOVERNOR 22012 - COVER ASSY, GOVERNOR  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part 22379B - BRACKET, STOP WIRE 22408A - ARM SUB-ASSY(FOR CONTROL LACK) 22408C - NUT, ARM 22410A - WIRE, GOVERNOR HOUSING SEAL 22410B - SEAL, LEAD  ** Std Part 22424A - ARM, SPRING 22424B - SPRING, RETURN(FOR SPRING ARM) 22424B - SPRING, RETURN(FOR SPRING ARM) 22434 - SHACKLE 22456 - SCREW, STOP 22460 - LEVER SUB-ASSY, SUPPORT 22460 - LEVER SUB-ASSY, SUPPORT 22460D - WASHER, LOCK(FOR STEERING LEVER) 22460D - WASHER, LOCK(FOR STEERING LEVER) 22460E - ARM ASSY, GUIDE 22461 - PLUG, SCREW 22461 - PLUG, SCREW 22463B - TUBE, RUBBER 22465 - LEVER SUB-ASSY, ADJUSTING 22465 - LEVER SUB-ASSY, ADJUSTING 22465A - KEY, WOODRUFF(FOR ADJUSTING LEVER) 22465B - SEAL, OIL(FOR ADJUSTING LEVER) 22468 - COVER, PLATE 22468A - O, RING 22469 - COVER SUB-ASSY, PLATE 22471A - SHAFT, LEVER SUPPORTING 22495 - LEVER SUB-ASSY, STOP 22552A - SPRING, RETURN(FOR CAM PLATE) 22552C - WASHER(FOR CAM PLATE BUSH) 22565 - BRACKET, GOVERNOR 22579 - ACTUATOR, FUEL CUT 22702 - LEVER ASSY, FLOATING 22702A - SPRING, FLOATING ARM 22702B - WASHER, PLATE(FOR FLOATING LEVER) 22702C - ARM, FLOATING 22702E - LEVER SUB-ASSY, CONTROL 22702F - SPRING, RETURN(FOR CONTROL LEVER) 22761 - SLIDER(FOR SPEED CONTROL) 22761A - SHAFT, SLIDING WEIGHT  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
