TOYOTA MR2 SW20R-ACMZFW / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

HEATING AIR CONDITIONING COOLER PIPING

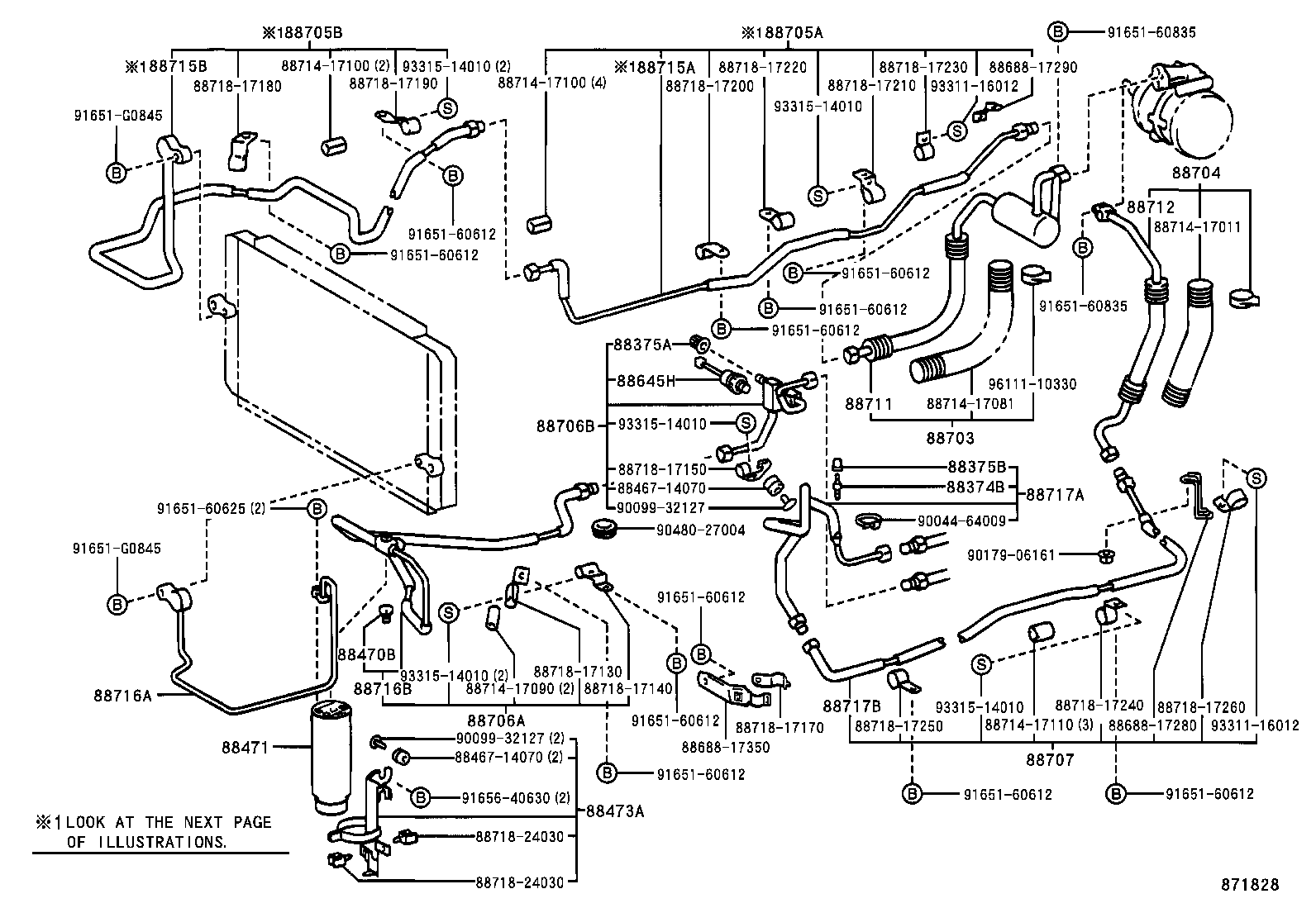

ILLUST NO. 2 OF 5(8912-9112)RHD..W

MR2 | HEATING AIR CONDITIONING COOLER PIPING 88374B - VALVE, SERVICE, NO.1 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) 88375B - CAP, SERVICE VALVE, NO.1 ** Std Part ** Std Part 88470B - BOLT, FUSE 88471 - TANK, RECEIVER AIR CONDITIONER 88473A - HOLDER, RECEIVER 88645H - SWITCH, PRESSURE NO.1 ** Std Part ** Std Part ** Std Part 88703 - HOSE SUB-ASSY, DISCHARGE 88704 - HOSE SUB-ASSY, SUCTION 88705A - TUBE SUB-ASSY, DISCHARGE 88705B - TUBE SUB-ASSY, DISCHARGE 88706A - TUBE SUB-ASSY, LIQUID, A 88706B - TUBE SUB-ASSY, LIQUID, B 88707 - PIPE SUB-ASSY, SUCTION 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A 88715B - PIPE, COOLER REFRIGERANT DISCHARGE, B 88716A - PIPE, COOLER REFRIGERANT LIQUID, A 88716B - PIPE, COOLER REFRIGERANT LIQUID, B 88717A - PIPE, COOLER REFRIGERANT SUCTION, A 88717B - PIPE, COOLER REFRIGERANT SUCTION, B ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
