CLUTCH PEDAL FLEXIBLE HOSE

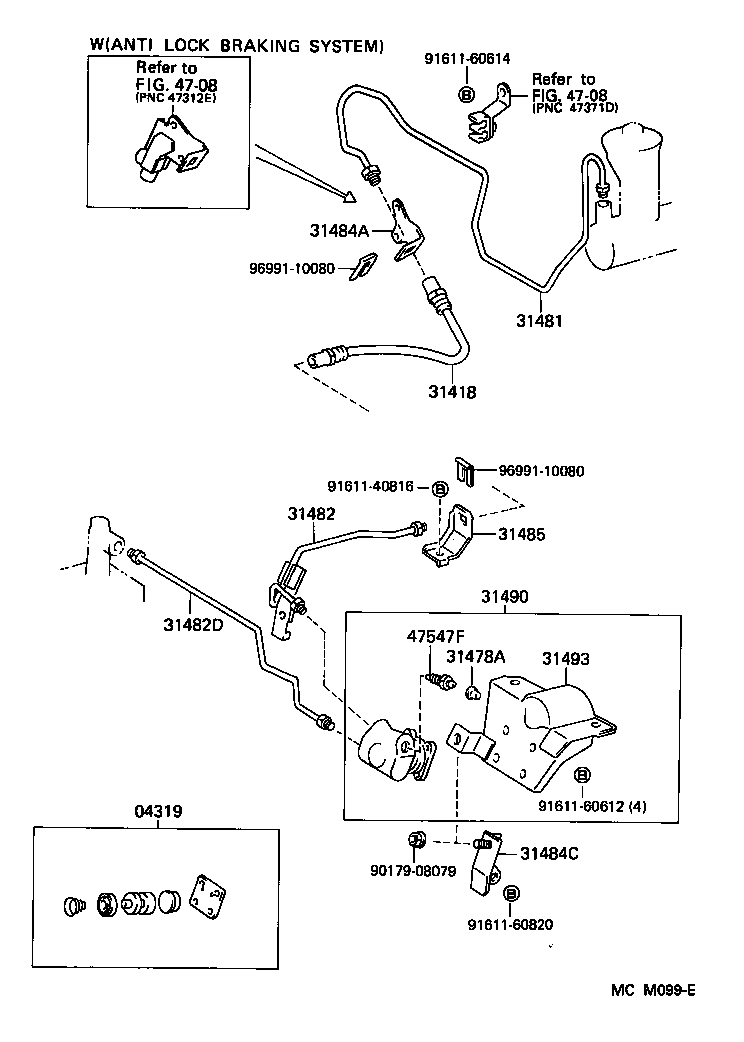

ILLUST NO. 2 OF 2(9106-9309)VCV10..JPP..MTM

CAMRY JPP | CLUTCH PEDAL FLEXIBLE HOSE 04319 - CUP KIT, CLUTCH ACCUMULATOR 31418 - HOSE, CLUTCH 31478A - CAP, BLEEDER PLUG(FOR CLUTCH ACCUMULATOR) 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE 31482D - TUBE, CLUTCH RELEASE CYLINDER TO ACCUMULATOR 31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH) 31484C - BRACKET, CLUTCH TUBE, NO.1 31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH) 31490 - ACCUMULATOR ASSY, CLUTCH 31493 - BRACKET, CLUTCH ACCUMULATOR ** Refer Fig ** Refer Fig 47547F - PLUG, BLEEDER(FOR CLUTCH ACCUMULATOR) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
