TOYOTA LITEACE VAN WAGON KM36LV-JRSW / POWERTRAIN-CHASSIS / CONTROL SHAFT CROSSSHAFT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

CONTROL SHAFT CROSSSHAFT

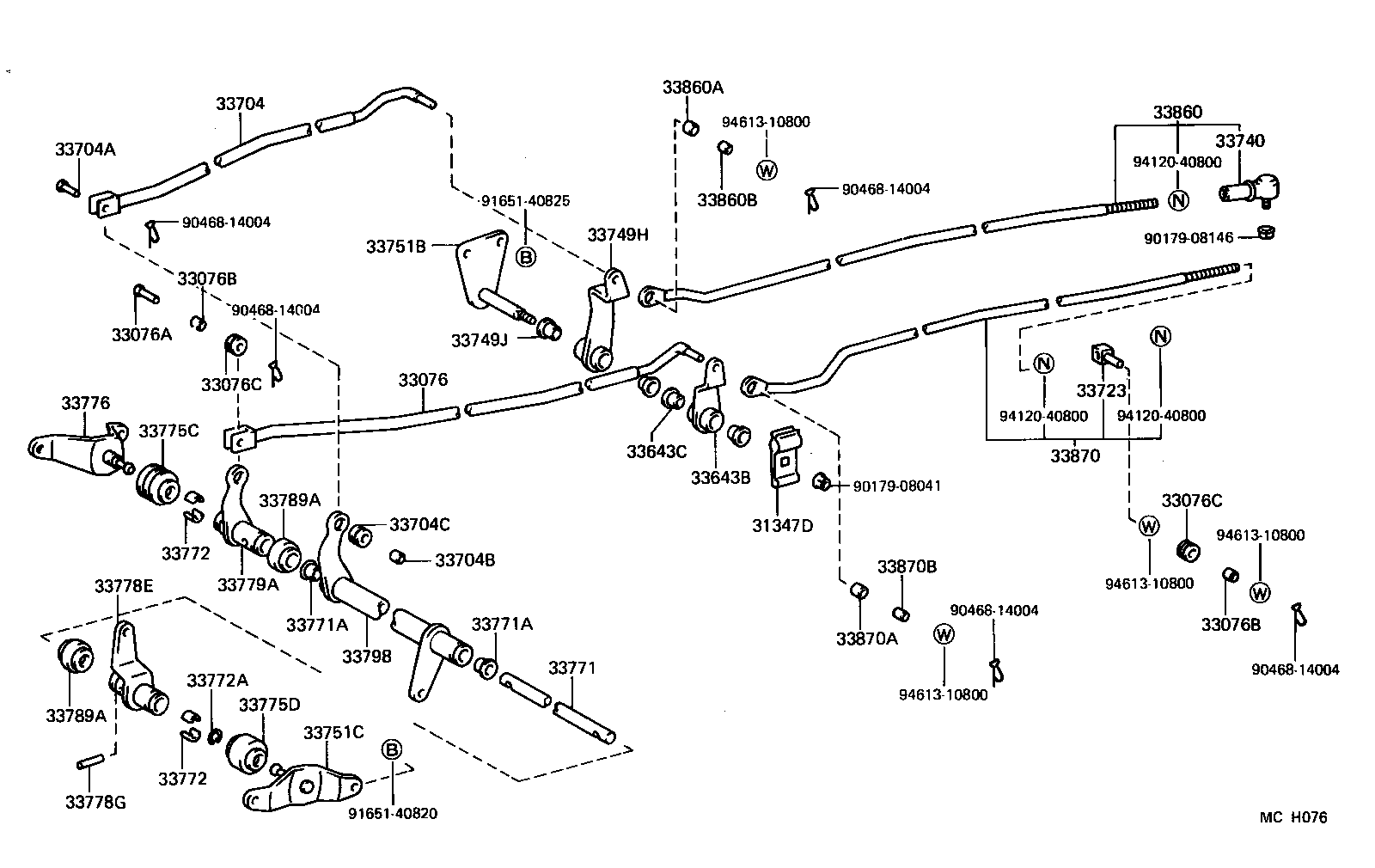

ILLUST NO. 2 OF 2(8808- )4H

 LITEACE VAN WAGON |  CONTROL SHAFT CROSSSHAFT 31347D - CLAMP, CLUTCH CABLE(FOR CONTROL LEVER SUPPORT) 33076 - ROD SUB-ASSY, GEAR SELECTING, NO.3(FOR COLUMN SHIFT) 33076A - PIN, W/HOLE(FOR GEAR SELECTING ROD NO.3) 33076B - BUSHING(FOR GEAR SELECTING ROD) 33076B - BUSHING(FOR GEAR SELECTING ROD) 33076C - GROMMET(FOR GEAR SELECTING ROD) 33076C - GROMMET(FOR GEAR SELECTING ROD) 33643B - LEVER, GEAR SELECTING, NO.3 (FOR COLUMN SHIFT) 33643C - BUSH (FOR GEAR SELECTING LEVER NO.3) 33704 - ROD SUB-ASSY, GEAR SHIFTING, NO.3 (FOR COLUMN SHIFT) 33704A - PIN, W/HOLE (FOR GEAR SHIFTING ROD NO.3) 33704B - BUSHING (FOR GEAR SHIFTING ROD) 33704C - GROMMET (FOR GEAR SHIFTING ROD) 33723 - SWIVEL, CONNECTING ROD (FOR COLUMN SHIFT) 33740 - END ASSY, CONNECTING ROD, NO.1(FOR COLUMN SHIFT) 33749H - LEVER, GEAR SHIFTING, NO.4 (FOR COLUMN SHIFT) 33749J - BUSH, GEAR SHIFTING, NO.4 33751B - SUPPORT, GEAR SHIFT LINK LEVER, NO.1 (FOR COLUMN SHIFT) 33751C - SUPPORT, GEAR SHIFT LINK LEVER, NO.2 (FOR COLUMN SHIFT) 33771 - SHAFT, CROSS (FOR COLUMN SHIFT) 33771A - BUSH (FOR CROSS SHAFT) 33771A - BUSH (FOR CROSS SHAFT) 33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT) 33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT) 33772A - RING, SNAP (FOR CROSS SHAFT SUPPORT BUSH) 33775C - COVER, CROSS SHAFT DUST, NO.1 (FOR COLUMN SHIFT) 33775D - COVER, CROSS SHAFT DUST, NO.2 (FOR COLUMN SHIFT) 33776 - BRACKET, CROSS SHAFT, NO.1 (FOR COLUMN SHIFT) 33778E - LEVER, CROSS SHAFT, NO.1 33778G - PIN, GROOVED(FOR CROSS SHAFT LEVER) 33779A - LEVER, CROSS SHAFT, NO.2 33789A - COVER, CROSS SHAFT DUST, NO.3(FOR COLUMN SHIFT) 33789A - COVER, CROSS SHAFT DUST, NO.3(FOR COLUMN SHIFT) 33798 - LEVER, CROSS SHAFT, NO.3 33860 - ROD ASSY, GEAR SHIFTING, NO.4 33860A - BUSH (FOR GEAR SHIFTING ROD) 33860B - SPACER (FOR GEAR SHIFTING ROD) 33870 - ROD ASSY, GEAR SELECTING, NO.4 (FOR COLUMN SHIFT) 33870A - BUSH (FOR GEAR SELECTING ROD) 33870B - SPACER (FOR GEAR SELECTING ROD)  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
