HEATING AIR CONDITIONING COMPRESSOR

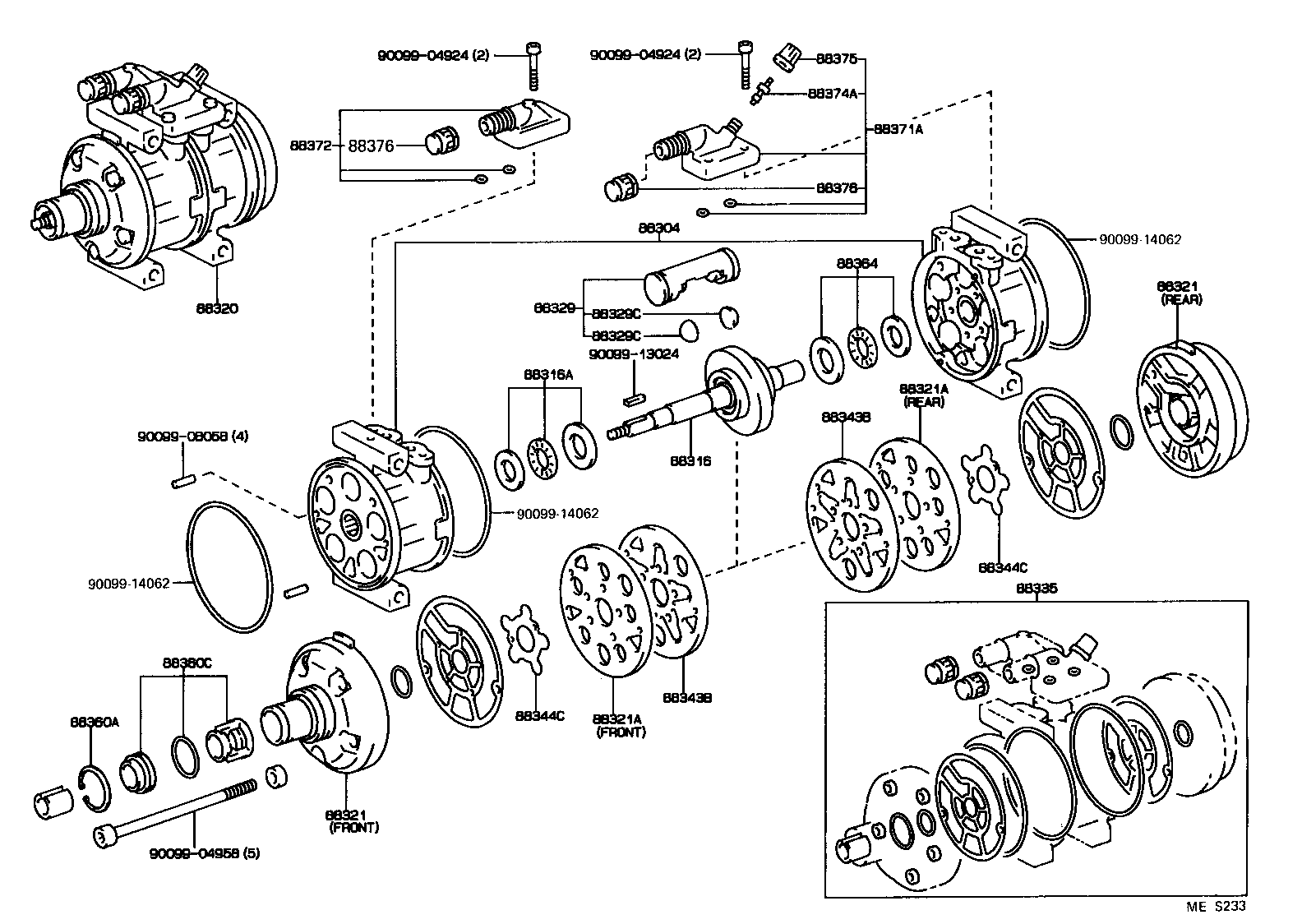

ILLUST NO. 2 OF 2(8903- )

LITEACE VAN WAGON | HEATING AIR CONDITIONING COMPRESSOR 88304 - CYLINDER SUB-ASSY, COOLER COMPRESSOR 88316 - CRANKSHAFT, COOLER COMPRESSOR 88316A - BEARING, COMPRESSOR CRANKSHAFT, FRONT 88320 - COMPRESSOR ASSY, COOLER 88321 - HEAD, COOLER COMPRESSOR CYLINDER 88321 - HEAD, COOLER COMPRESSOR CYLINDER 88321A - PLATE SUB-ASSY, VALVE 88321A - PLATE SUB-ASSY, VALVE 88329 - PISTON SUB-ASSY, COOLER COMPRESSOR 88329C - SHOE, PISTON 88329C - SHOE, PISTON 88335 - GASKET KIT, OVERHAUL 88343B - REED, SUCTION VALVE 88343B - REED, SUCTION VALVE 88344C - REED, DISCHARGE VALVE 88344C - REED, DISCHARGE VALVE 88360A - RING, COMPRESSOR SEAL PLATE SNAP 88360C - SEAL ASSY, SHAFT 88364 - BEARING, COMPRESSOR CRANKSHAFT, REAR 88371A - VALVE, SUCTION 88372 - VALVE, DISCHARGE 88374A - VALVE, SERVICE 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE 88376 - CAP, BLIND 88376 - CAP, BLIND ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
