TOYOTA LITEACE VAN WAGON YR29LV-MRSBEEW / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

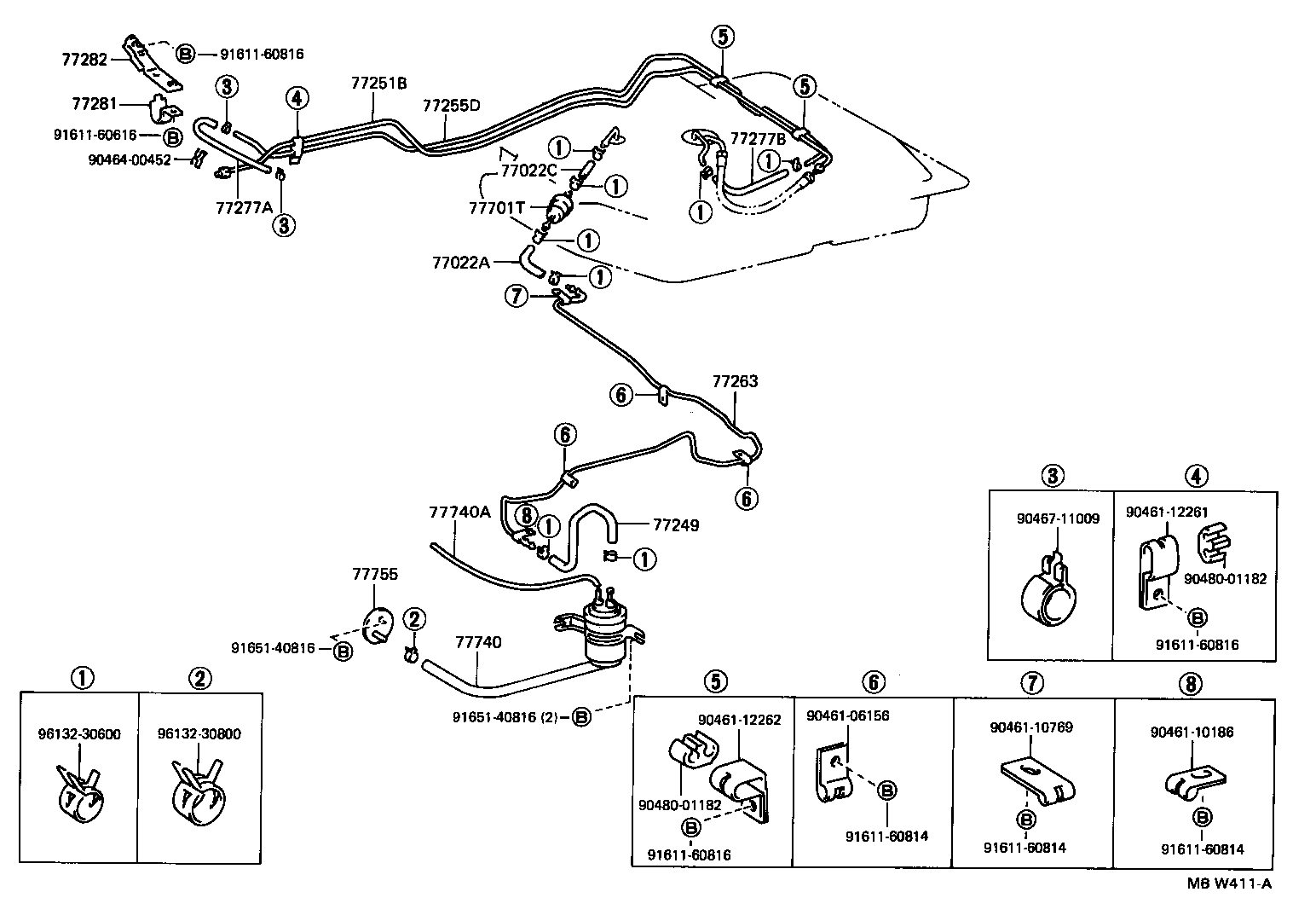

ILLUST NO. 2 OF 2(9201- )YR2#

 LITEACE VAN WAGON |  FUEL TANK TUBE 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) 77022C - HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR) 77249 - HOSE, FUEL EMISSION 77251B - TUBE, FUEL MAIN 77255D - TUBE, FUEL RETURN 77263 - TUBE, FUEL TANK TO CANISTER, NO.3 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) 77281 - BRACKET, FUEL MAIN TUBE, NO.1 77282 - BRACKET, FUEL MAIN TUBE, NO.2 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) 77740 - CANISTER ASSY, CHARCOAL 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) 77755 - BRACKET, CHARCOAL CANISTER OUTLET HOSE  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
